/ Air Drill Onpin OP-D8448 - 10mm Chuck, 4800 RPM, 0.6 HP, Composite Housing, Reversible
Air Drill Onpin OP-D8448 - 10mm Chuck, 4800 RPM, 0.6 HP, Composite Housing, Reversible
The Onpin OP-D8448 industrial-grade air drill features a 0.6 HP motor enclosed in a lightweight 1.06 kg composite housing driven by a gear mechanism at 90 psi / 6.2 bar air pressure. Equipped with a 10 mm (3/8 inch) chuck and 3/8-24UNF spindle thread, it delivers a free speed of 4,800 rpm and a stall torque of 3.14 Nm. Built for heavy-duty operation, it offers a stepless speed control trigger, a positioning-type one-handed forward/reverse switch, a bottom exhaust system operating at 88 dB(A), and an air consumption rate of 283 l/min via a 1/4 P.T air inlet.
- OP-D8448
- OPD8448
- OP D8448
- Onpin OP-D8448
- Onpin OPD8448
- Onpin OP D8448
- OP-D84 series
- OP-D8448 model
- 10mm composite air drill
- reversible pneumatic drill 4800rpm
- Onpin 0.6 HP air drill
- 3/8 inch industrial pneumatic drill
- bottom exhaust composite air drill
Design file download links:
Other fileDescription
Specification OP-D8448
The Onpin OP-D8448 pneumatic air drill is an industrial-grade drilling tool delivering 0.6 HP of power, operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Driven by a gear mechanism, it features a 10 mm (3/8 inch) chuck paired with a 3/8-24UNF spindle thread, reaching a free speed of 4,800 rpm and a stall torque of 3.14 Nm (2.3 ft-lb). Encased in a lightweight 1.06 kg ergonomic composite housing with a stepless trigger and bottom exhaust, it is engineered for consistent, precise industrial drilling applications.
Key Features of Onpin OP-D8448
- 0.6 HP Motor & Gear-Driven Mechanism: Provides robust power output and smooth operation under demanding industrial workloads.
- Ergonomic Composite Housing: Compact and lightweight non-metallic body at only 1.06 kg (2.34 lb) offers a warm touch and minimizes fatigue during extended use.
- Stepless Speed Control Trigger: Enables precise rotational speed regulation directly through trigger pressure for smooth operation.
- Positioning-Type Reversible Switch: Facilitates quick and effortless single-handed forward and reverse directional toggling.
- Noise-Reducing Bottom Exhaust: Directs air flow downward away from the operator, maintaining sound levels at 88 dB(A) while preventing dust rebound.

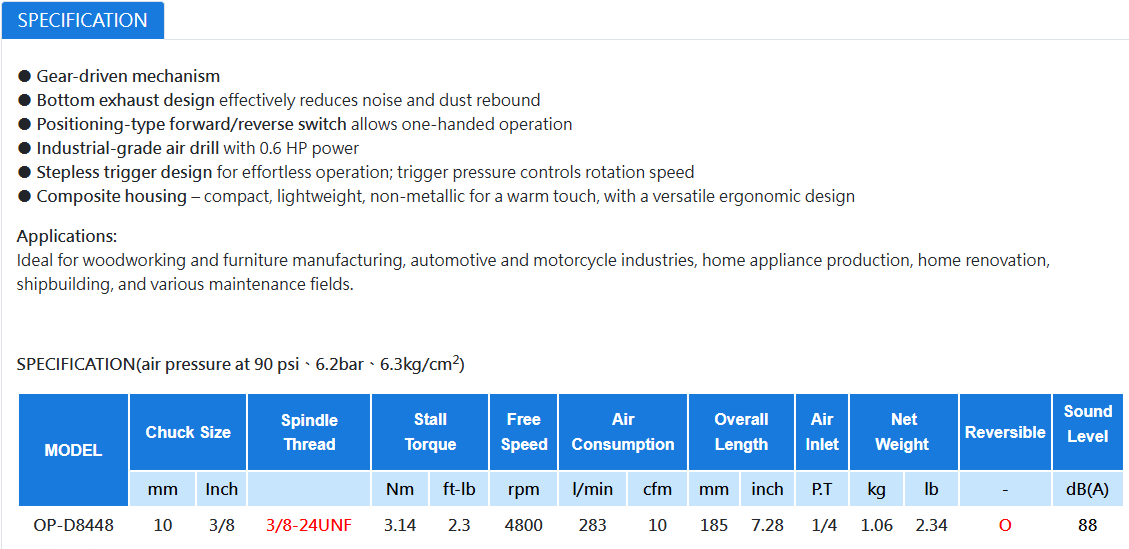

Technical Specifications of Onpin OP-D8448
- Brand: Onpin
- Model: OP-D8448
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 10 mm (3/8 inch)
- Spindle Thread: 3/8-24UNF
- Stall Torque: 3.14 Nm (2.3 ft-lb)
- Free Speed: 4,800 rpm
- Air Consumption: 283 l/min (10 cfm)
- Overall Length: 185 mm (7.28 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.06 kg (2.34 lb)
- Reversible Function: Yes (o)
- Sound Level: 88 dB(A)
Industrial Applications of Onpin OP-D8448
- Woodworking & Furniture Manufacturing: Precision drilling and frame assembly in furniture manufacturing plants.
- Automotive & Motorcycle Industries: Component drilling and structural repair on production and service lines.
- Home Appliance Production: Sheet metal drilling and housing assembly on appliance production lines.
- Home Renovation: On-site installation, structural fitting, and hardware mounting.
- Shipbuilding & Various Maintenance Fields: Structural maintenance, fabrication, and general plant equipment servicing.
