Air Drill Onpin OP-101 - 10mm Chuck, 2500 RPM, 3/8"-24UNF, Bottom Exhaust
The Onpin OP-101 industrial air drill features a compact 185 mm long body driven by a precision gear mechanism at a standard air pressure of 90 psi / 6.2 bar. It comes equipped with a 10 mm (3/8 inch) chuck and a 3/8"-24UNF spindle thread, delivering a free speed of 2,500 rpm and a stall torque of 2.1 Nm. Built for flexible handling, it incorporates a one-handed forward/reverse switch, a bottom exhaust design to minimize noise and air interference, and consumes 226 l/min of air.
- OP-101
- OP101
- OP 101
- Onpin OP-101
- Onpin OP101
- Onpin OP 101
- OP-100 series
- OP-101 model
- 10mm pneumatic air drill
- reversible air drill 2500rpm
- Onpin bottom exhaust air drill
- 3/8 inch industrial pneumatic drill
- compact reversible air drill
Design file download links:
Other fileDescription
Specification OP-101
The Onpin OP-101 pneumatic air drill is an industrial-grade handheld drilling tool driven by a precision gear mechanism, operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It features a 10 mm (3/8 inch) chuck paired with a 3/8"-24UNF spindle thread, delivering a free speed of 2,500 rpm and a stall torque of 2.1 Nm. Equipped with a convenient one-handed forward/reverse switch and a bottom exhaust system, this tool is engineered for consistent, high-efficiency performance in professional mechanical applications.
Key Features of Onpin OP-101
- Precision Gear Mechanism: Delivers smooth operation, exceptional stability, and extended service life under heavy workloads.
- One-Hand Forward/Reverse Switch: Allows quick and effortless directional changes to enhance operational workflow.
- Bottom Exhaust Design: Effectively reduces operational noise levels and prevents air interference during drilling tasks.
- Compact and Lightweight Body: Ergonomically designed with an overall length of 185 mm, providing flexible and comfortable handling.

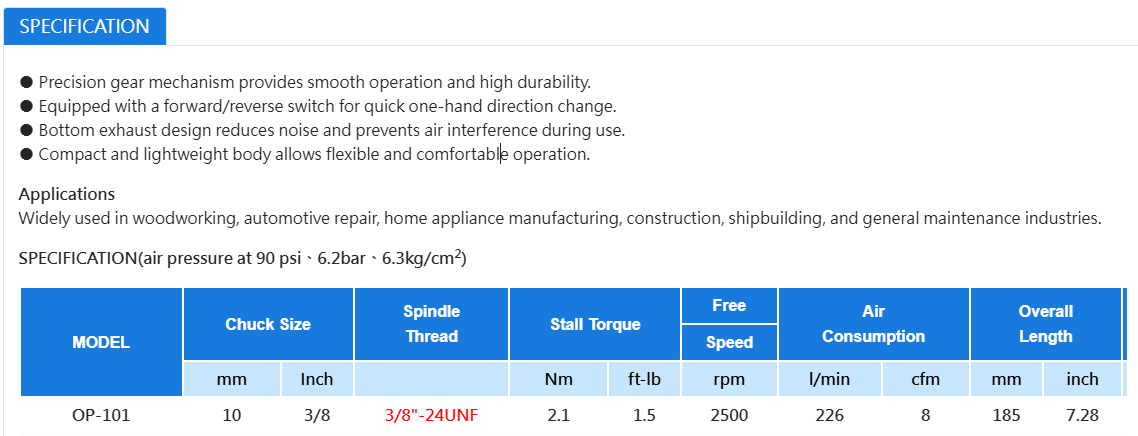

Technical Specifications of Onpin OP-101
- Brand: Onpin
- Model: OP-101
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 10 mm (3/8 inch)
- Spindle Thread: 3/8"-24UNF
- Stall Torque: 2.1 Nm (1.5 ft-lb)
- Free Speed: 2,500 rpm
- Air Consumption: 226 l/min (8 cfm)
- Overall Length: 185 mm (7.28 inch)
Industrial Applications of Onpin OP-101
- Woodworking: Precision drilling and assembly operations in furniture and timber manufacturing facilities.
- Automotive Repair: Drilling and maintenance work across vehicle body shops and service centers.
- Home Appliance Manufacturing: Housing assembly and component drilling on high-volume production lines.
- Construction & Shipbuilding: Structural framing work, assembly, and metal sheet drilling in marine and construction sites.
- General Maintenance Industries: Plant equipment servicing, repair work, and general industrial maintenance tasks.
