Straight Air Drill Onpin OP-102 - 10mm Chuck, 2200 RPM, 3-Speed, Reversible
The Onpin OP-102 straight pneumatic drill features a compact, lightweight 0.84 kg body with a hanging ring compatible with spring balancers for strain-free operation. Operating at 90 psi / 6.2 bar air pressure, it is equipped with a 10 mm (3/8 inch) chuck, 3/8"-24UNF spindle thread, delivering a free speed of 2,200 rpm and a stall torque of 2.1 Nm. The tool incorporates a three-speed air control knob, an indexed forward/reverse switch for secure operation, side exhaust design to minimize noise to 88 dB(A), and an air consumption of 141 l/min via a 1/4 P.T air inlet.
- OP-102
- OP102
- OP 102
- Onpin OP-102
- Onpin OP102
- Onpin OP 102
- OP-100 series
- OP-102 model
- straight pneumatic air drill
- 10mm straight air drill
- Onpin straight air drill 2200rpm
- 3-speed inline air drill
- 3/8 inch straight reversible air drill
Design file download links:
Other fileDescription

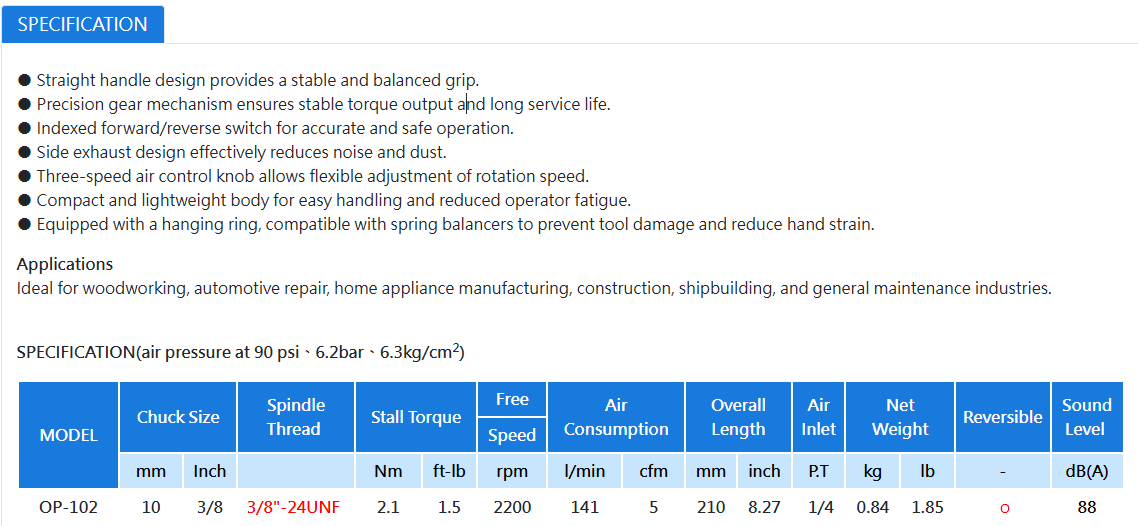

Specification OP-102
The Onpin OP-102 straight pneumatic air drill is an industrial-grade inline air tool designed with a balanced straight handle for continuous assembly line operations, operating at a standard pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Equipped with a precision gear mechanism and a 3/8"-24UNF spindle thread, it drives a 10 mm (3/8 inch) chuck at a free speed of 2,200 rpm with a stall torque of 2.1 Nm. Featuring a 3-speed air adjustment knob and a hanging ring for spring balancer attachment, it provides ergonomic efficiency in high-throughput industrial workflows.
Key Features of Onpin OP-102
- Compact & Ultra-Lightweight Inline Body: Weighs only 0.84 kg (1.85 lb) with an overall length of 210 mm, ensuring a balanced grip and reducing operator fatigue during prolonged use.
- Three-Speed Air Control Knob: Allows flexible rotation speed adjustments to match specific material processing needs.
- Built-in Hanging Ring: Fully compatible with spring balancers to eliminate hand strain and prevent tool damage from accidental drops.
- Indexed Forward/Reverse Switch: Ensures precise, safe, and positive directional control during heavy usage.
- Side Exhaust Design: Directs exhaust air sideways to reduce operating noise down to 88 dB(A) and minimize dust rebound.
Technical Specifications of Onpin OP-102
- Brand: Onpin
- Model: OP-102
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 10 mm (3/8 inch)
- Spindle Thread: 3/8"-24UNF
- Stall Torque: 2.1 Nm (1.5 ft-lb)
- Free Speed: 2,200 rpm
- Air Consumption: 141 l/min (5 cfm)
- Overall Length: 210 mm (8.27 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 0.84 kg (1.85 lb)
- Reversible Function: Yes (o)
- Sound Level: 88 dB(A)
Industrial Applications of Onpin OP-102
- Woodworking & Furniture Manufacturing: Precision drilling and hole preparation on wood and panel assemblies.
- Automotive & Motorcycle Repair: Light drilling and hole reaming in service workshops.
- Home Appliance Production: Fastening and component assembly on manufacturing lines.
- Shipbuilding & Construction: Sheet metal processing and structural hole drilling.
- General Industrial Maintenance: Routine equipment maintenance and mechanical servicing across plant facilities.
