Air Drill Onpin OP-D6116 Series - 10mm Chuck, 6 Nm Torque, 1650 RPM, 3/8"-24UNF / JT1
The Onpin OP-D6116 Series air drills (available in model OP-D6116 with 3/8"-24UNF thread and OP-D6116JT with JT1 thread) feature a gear-type mechanism with low counteraction, operating at 90 psi / 6.2 bar air pressure. Equipped with a 10 mm (3/8 inch) chuck, the tools deliver a strong stall torque of 6 Nm and a speed of 1,650 rpm. Built for heavy industrial efficiency, they feature a quick forward & backward trigger, handle exhaust system operating at 82 dB(A), a net weight of 1.45 kg, and an air consumption rate of 240 l/min via a 1/4 P.T air inlet.
- OP-D6116
- OPD6116
- OP D6116
- OP-D6116JT
- OPD6116JT
- OP D6116JT
- Onpin OP-D6116
- Onpin OPD6116
- Onpin OP D6116
- Onpin OP-D6116JT
- Onpin OPD6116JT
- Onpin OP D6116JT
- OP-D6116 series
- OP-D6116 model
- 10mm pneumatic air drill 6Nm
- reversible air drill 1650rpm
- Onpin JT1 spindle air drill
- 3/8 inch heavy duty pneumatic drill
- handle exhaust air drill 10mm
Design file download links:
Other fileDescription
Specification OP-D6116
The Onpin OP-D6116 Series air drill lineup (comprising model OP-D6116 and model OP-D6116JT) consists of heavy-duty gear-driven pneumatic tools engineered for low counteraction, operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Equipped with a 10 mm (3/8 inch) chuck, it generates a high stall torque of 6 Nm (4.4 ft-lb) at an operating speed of 1,650 rpm. Featuring a handle exhaust configuration and quick forward/reverse operation, this series is optimized for demanding industrial production lines.
Key Features of Onpin OP-D6116 Series
- Gear-Type Transmission Mechanism: Delivers durable performance with low counteraction to relieve operator hand strain.
- High Stall Torque of 6 Nm: Provides strong rotational force for heavy-duty industrial drilling applications.
- Dual Spindle Thread Options: Available as OP-D6116 with a 3/8"-24UNF thread, or OP-D6116JT with a JT1 taper spindle.
- Quick Forward & Backward Trigger: Enables effortless, instantaneous directional changes during fast-paced assembly tasks.
- Handle Exhaust System: Directs exhaust air downward through the grip, reducing sound levels to 82 dB(A) while keeping work surfaces clean.

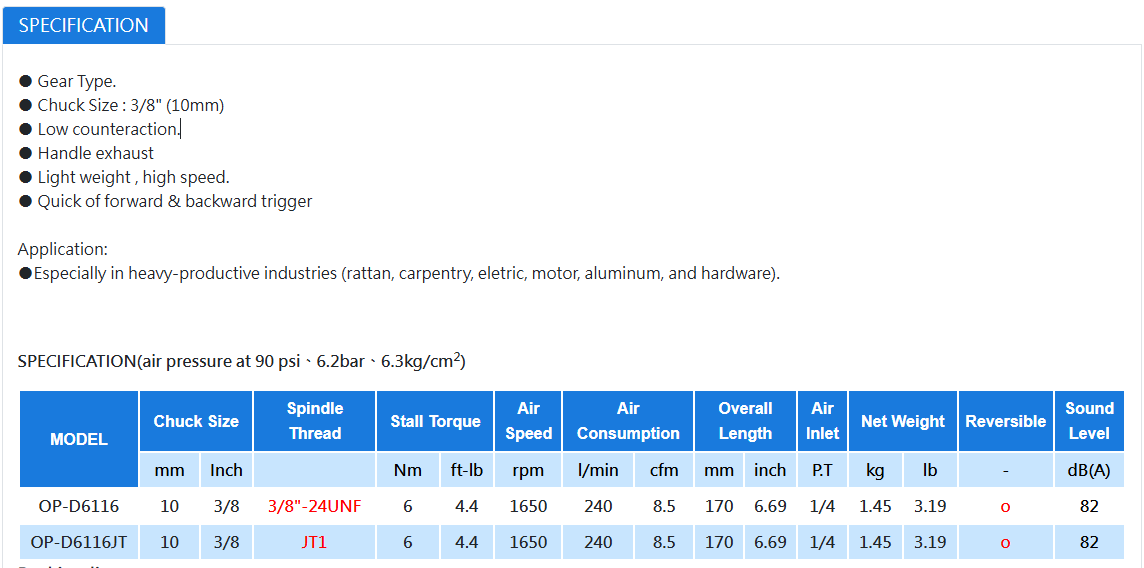

Technical Specifications of Onpin OP-D6116 Series
- Brand: Onpin
- Series Model: OP-D6116 Series
- Detailed Models: OP-D6116 & OP-D6116JT
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 10 mm (3/8 inch)
- Spindle Thread:
- Model OP-D6116: 3/8"-24UNF
- Model OP-D6116JT: JT1
- Stall Torque: 6 Nm (4.4 ft-lb)
- Air Speed: 1,650 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 170 mm (6.69 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.45 kg (3.19 lb)
- Reversible Function: Yes (o)
- Sound Level: 82 dB(A)
Industrial Applications of Onpin OP-D6116 Series
- Rattan & Carpentry Manufacturing: High-efficiency drilling in wood processing and furniture production lines.
- Electric & Motor Industries: Motor casing preparation and heavy electrical equipment assembly.
- Aluminum & Hardware Processing: Sheet metal drilling, aluminum frame fabrication, and hardware fitting.
- Heavy-Productive Manufacturing: Suitable for demanding plant operations requiring robust torque output and continuous reliability.
