Right-Angle Air Drill Onpin OP-510H - 10mm Chuck, 1500 RPM, Reversible
The Onpin OP-510H right-angle air drill is engineered for effortless operation in confined spaces, featuring an ergonomic and lightweight 1.4 kg body. Operating at 90 psi / 6.2 bar air pressure, it comes with a 10 mm (3/8 inch) chuck, delivers a free speed of 1,500 rpm, and utilizes a precision gear mechanism for reliable performance. The tool includes a push-button forward/reverse switch for one-handed operation, a rear exhaust design to reduce noise and dust, a 1/4 P.T air inlet, and an air consumption of 240 l/min.
- OP-510H
- OP510H
- OP 510H
- Onpin OP-510H
- Onpin OP510H
- Onpin OP 510H
- OP-510 series
- OP-510 model
- right angle air drill 10mm
- 3/8 inch pneumatic angle drill
- Onpin angle air drill 1500rpm
- reversible right angle pneumatic drill
- industrial right angle air drill
Design file download links:
Other fileDescription

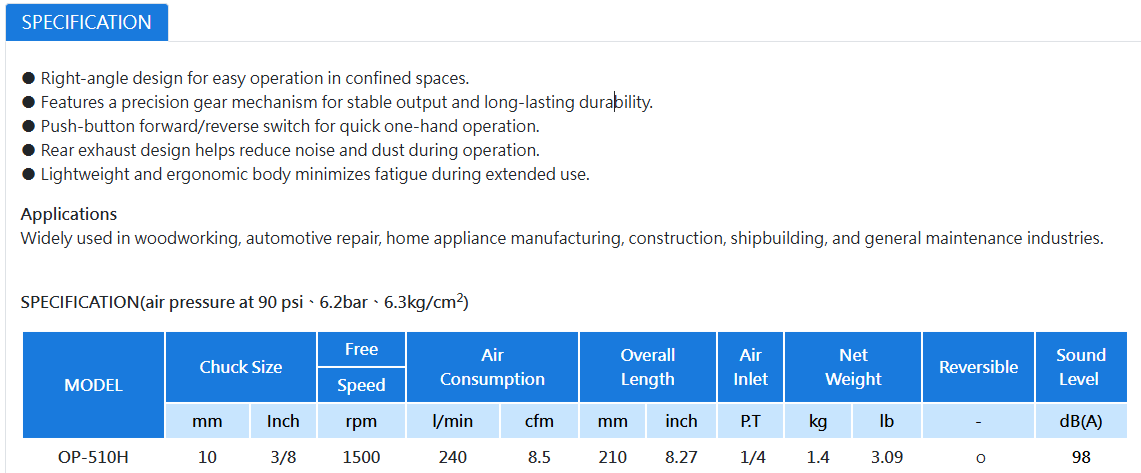

Specification OP-510H
The Onpin OP-510H right-angle pneumatic drill is a heavy-duty industrial air tool designed with a 90-degree head configuration specifically engineered for operations in confined spaces. Operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it features a 10 mm (3/8 inch) chuck driven by a precision gear mechanism delivering a free speed of 1,500 rpm. This tool is optimized for automotive assembly, machinery manufacturing, and general maintenance applications requiring high-accessibility angled drilling.
Key Features of Onpin OP-510H
- Right-Angle Design: Engineered specifically for effortless drilling and fastening inside tight spots and hard-to-reach enclosures.
- Precision Gear Mechanism: Ensures steady torque output, minimal vibration, and long-lasting durability under continuous duty.
- Push-Button Forward/Reverse Switch: Allows seamless, fast one-handed direction changes during heavy-duty workflows.
- Rear Exhaust System: Channels exhaust air away from the workpiece and operator, effectively reducing operational noise and dust rebound.
- Ergonomic Lightweight Body: Weighing only 1.4 kg (3.09 lb) with a compact total length of 210 mm, it significantly reduces operator fatigue during extended use.
Technical Specifications of Onpin OP-510H
- Brand: Onpin
- Model: OP-510H
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 10 mm (3/8 inch)
- Free Speed: 1,500 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 210 mm (8.27 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.4 kg (3.09 lb)
- Reversible Function: Yes (o)
- Sound Level: 98 dB(A)
Industrial Applications of Onpin OP-510H
- Woodworking & Furniture Manufacturing: Precision drilling in tight internal corners of cabinetry and furniture frames.
- Automotive & Motorcycle Repair: Drilling and fastening inside engine compartments, underchassis, and interior spaces.
- Home Appliance Production: Frame and panel assembly on automated production lines.
- Shipbuilding & Construction: Structural wall drilling and frame assembly in tight marine or construction sections.
- General Industrial Maintenance: Machinery overhaul and plant equipment servicing in hard-to-access machinery spaces.
