Air Drill Onpin OP-D84140-2 - Composite Housing, 0.6 HP, 14000 RPM, Reversible
The Onpin OP-D84140-2 industrial air drill features a compact, lightweight 0.97 kg composite housing and a 0.6 HP motor operating at 90 psi / 6.2 bar. Equipped with a 6 mm (1/4 inch) chuck, 3/8-24UNF spindle thread, it offers a free speed of 14,000 rpm, 1 Nm stall torque, and a one-handed positioning-type forward/reverse switch. It includes a stepless trigger for speed control, bottom exhaust design to reduce noise to 88 dB(A), a 1/4 P.T air inlet, and an air consumption of 283 l/min.
- OP-D84140-2
- OPD841402
- OP D84140 2
- Onpin OP-D84140-2
- Onpin OPD841402
- Onpin OP D84140 2
- OP-D84140 series
- OP-D84140 model
- 6mm composite air drill
- reversible pneumatic drill 0.6HP
- Onpin air drill 14000rpm
- 1/4 inch high speed air drill
- composite housing pneumatic drill
Design file download links:
Other fileDescription

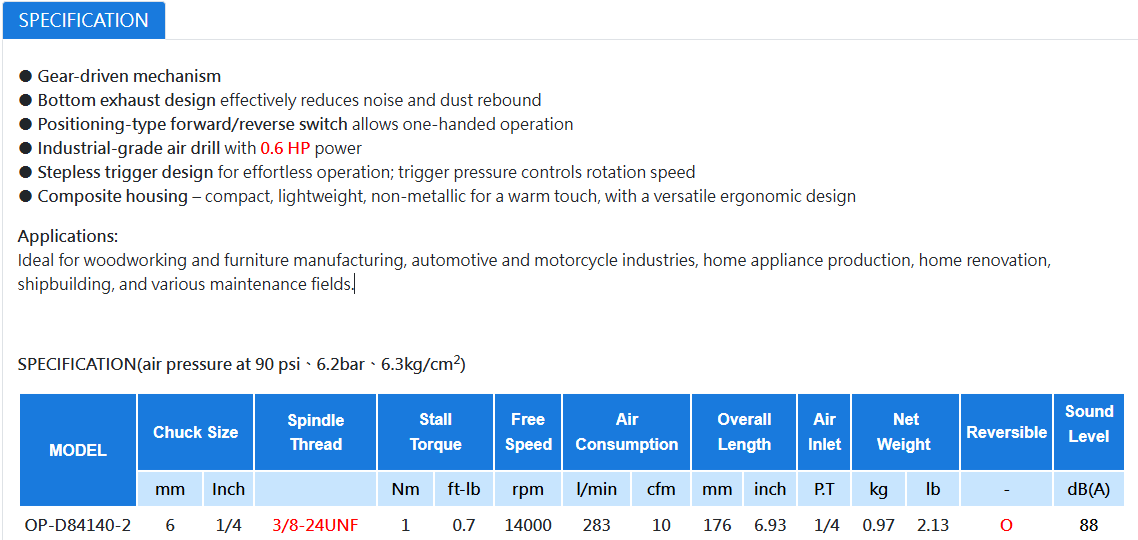

Specification OP-D84140-2
The Onpin OP-D84140-2 pneumatic drill is a lightweight, high-speed industrial air tool with a composite housing, designed to run at a standard operating pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Powered by a 0.6 HP motor with a gear-driven mechanism, it drives a 6 mm (1/4 inch) chuck via a 3/8-24UNF spindle thread at a high free speed of 14,000 rpm and a stall torque of 1 Nm. This reversible air drill is engineered for continuous assembly, precision metalworking, and woodworking operations.
Key Features of Onpin OP-D84140-2
- Ergonomic Composite Housing: Compact, ultra-lightweight at only 0.97 kg (2.13 lb), non-metallic for a warm touch, and designed for versatile ergonomic handling.
- Powerful 0.6 HP Motor: Delivers smooth, reliable power to sustain a high rotational free speed of 14,000 rpm.
- Positioning-Type Forward/Reverse Switch: Allows effortless, quick one-handed direction switching to improve workplace efficiency.
- Stepless Trigger Control: Speed is accurately controlled by trigger pressure, offering smooth variable speed control.
- Bottom Exhaust System: Directs exhaust air away from the user, reducing noise levels to 88 dB(A) and preventing dust rebound.
Technical Specifications of Onpin OP-D84140-2
- Brand: Onpin
- Model: OP-D84140-2
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Motor Power: 0.6 HP
- Chuck Size: 6 mm (1/4 inch)
- Spindle Thread: 3/8-24UNF
- Stall Torque: 1 Nm (0.7 ft-lb)
- Free Speed: 14,000 rpm
- Air Consumption: 283 l/min (10 cfm)
- Overall Length: 176 mm (6.93 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 0.97 kg (2.13 lb)
- Reversible Function: Yes (o)
- Sound Level: 88 dB(A)
Industrial Applications of Onpin OP-D84140-2
- Woodworking & Furniture Manufacturing: High-precision drilling and fastening on wood and composite panels.
- Automotive & Motorcycle Assembly: Speed-critical assembly tasks and hole drilling on vehicle components.
- Home Appliance Production: Precision drilling and fastening on appliance bodies and structural frames.
- Shipbuilding, Renovation & Maintenance Fields: Versatile maintenance operations, home renovation, and marine fitting repairs.
