Air Drill Onpin OP-D95185 - 18000 RPM High Speed, 0.9 HP, 6mm Chuck

Price:Contact Jade M-Tech

Category: Air Drill

SKU: OP-D95185

The Onpin OP-D95185 industrial-grade pneumatic drill features a robust 0.9 HP motor and gear-type structure with a single-speed design operating at 90 psi / 6.2 bar. It comes with a 6 mm (1/4 inch) chuck size, 3/8-24UNF spindle thread, delivering a high free speed of 18,000 rpm and a stall torque of 1.4 Nm. With an overall length of 186 mm, a net weight of 1.15 kg, a 1/4 P.T air inlet, and air consumption of 367 l/min, its bottom exhaust design effectively lowers noise levels to 87 dB(A) and prevents dust rebound during operation.

OP-D95185 Series Models & Sizes:

OP-D95185
OPD95185
OP D95185
Onpin OP-D95185
Onpin OPD95185
Onpin OP D95185
OP-D95185 series
OP-D95185 model
6mm high speed air drill
0.9HP pneumatic drill
Onpin air drill 18000rpm
1/4 inch industrial air drill
high speed pneumatic drill 6mm

Design file download links:

Other file

** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).

Description

Specification Specification

The Onpin OP-D95185 pneumatic drill is a high-speed industrial air tool designed for precise, heavy-duty hole drilling operations, working at a standard operating pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Powered by a robust 0.9 HP motor with a single-speed gear-type transmission, it drives a 6 mm (1/4 inch) chuck via a 3/8-24UNF spindle thread at an impressive free speed of 18,000 rpm. This industrial-grade tool is built for high-throughput assembly lines and precision metal fabrication.

Key Features of Onpin OP-D95185

High-Output 0.9 HP Motor: Delivers powerful drilling performance and maintains consistent torque output during high-speed drilling.
18,000 RPM Ultra-High Speed: Maximizes drilling efficiency and delivers smooth, burr-free holes in short cycle times.
Durable Gear-Type Structure: Enhances mechanical reliability and load resistance under continuous industrial operation.
Bottom Exhaust System: Effectively suppresses operating noise down to 87 dB(A) and prevents dust and debris rebound toward the operator.
Single-Speed Design: Simplifies tool operation, ensuring consistent speed output for standardized machining processes.

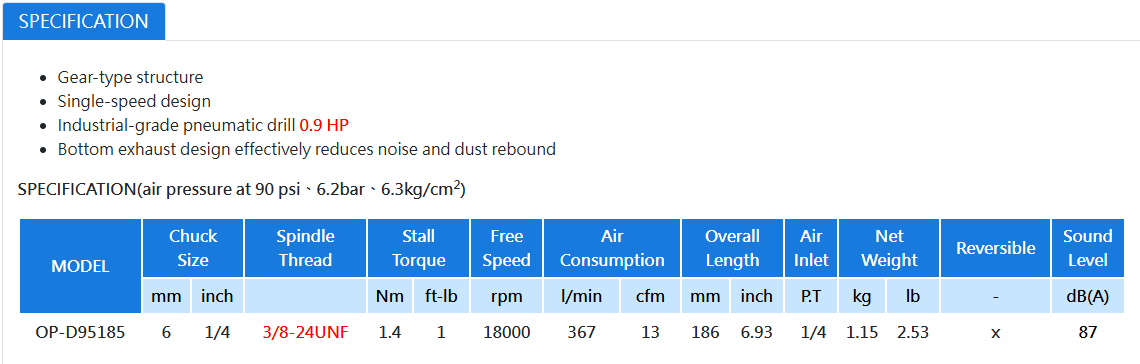

Technical Specifications of Onpin OP-D95185

Brand: Onpin
Model: OP-D95185
Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Motor Power: 0.9 HP
Chuck Size: 6 mm (1/4 inch)
Spindle Thread: 3/8-24UNF
Stall Torque: 1.4 Nm (1 ft-lb)
Free Speed: 18,000 rpm
Air Consumption: 367 l/min (13 cfm)
Overall Length: 186 mm (6.93 inch)
Air Inlet: 1/4 P.T
Net Weight: 1.15 kg (2.53 lb)
Reversible Function: No (x)
Sound Level: 87 dB(A)

Industrial Applications of Onpin OP-D95185

Automotive & Transportation Manufacturing: High-speed hole drilling in sheet metal parts and aluminum structural frames.
Electronics & Industrial Appliance Assembly: Precision drilling for small-diameter holes in control panels and enclosures.
Aerospace & Marine Fabrication: High-precision drilling for blind rivets on aluminum panels and light alloy structures.
Sheet Metal & Toolmaking Workshops: Fast hole positioning and high-speed drilling on metal components.
