/ Air Drill Onpin OP-D8448-2 - Composite Housing, 0.6 HP, 4800 RPM, Reversible
Air Drill Onpin OP-D8448-2 - Composite Housing, 0.6 HP, 4800 RPM, Reversible
The Onpin OP-D8448-2 industrial air drill features a compact 1.06 kg composite housing and a 0.6 HP motor operating at 90 psi / 6.2 bar air pressure. It comes with a 6 mm (1/4 inch) chuck, 3/8-24UNF spindle thread, providing a free speed of 4,800 rpm and a stall torque of 3.14 Nm. Designed for efficiency, it includes a positioning-type forward/reverse switch for one-handed operation, a stepless trigger for speed adjustment, a bottom exhaust system reducing sound level to 88 dB(A), and an air consumption rate of 283 l/min.
- OP-D8448-2
- OPD84482
- OP D8448 2
- Onpin OP-D8448-2
- Onpin OPD84482
- Onpin OP D8448 2
- OP-D8448 series
- OP-D8448 model
- 6mm composite air drill
- reversible pneumatic drill 0.6HP
- Onpin air drill 4800rpm
- 1/4 inch industrial air drill
- composite housing pneumatic drill
Design file download links:
Other fileDescription
Specification OP-D8448-2
The Onpin OP-D8448-2 pneumatic drill is a lightweight industrial air tool with a composite housing, designed to run at a standard operating pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Powered by a 0.6 HP motor with a gear-driven mechanism, it drives a 6 mm (1/4 inch) chuck via a 3/8-24UNF spindle thread at a free speed of 4,800 rpm and a stall torque of 3.14 Nm. This reversible air drill is engineered for continuous assembly, precision metalworking, and woodworking operations.
Key Features of Onpin OP-D8448-2
- Ergonomic Composite Housing: Compact, lightweight at only 1.06 kg (2.34 lb), non-metallic for a warm touch, and designed for versatile ergonomic handling.
- High-Efficiency 0.6 HP Motor: Delivers dependable power to maintain a free speed of 4,800 rpm and a stall torque of 3.14 Nm (2.3 ft-lb).
- Positioning-Type Forward/Reverse Switch: Allows effortless, quick one-handed direction switching to improve workplace efficiency.
- Stepless Trigger Control: Speed is accurately controlled by trigger pressure, offering smooth variable speed control.
- Bottom Exhaust System: Directs exhaust air away from the user, reducing noise levels to 88 dB(A) and preventing dust rebound.

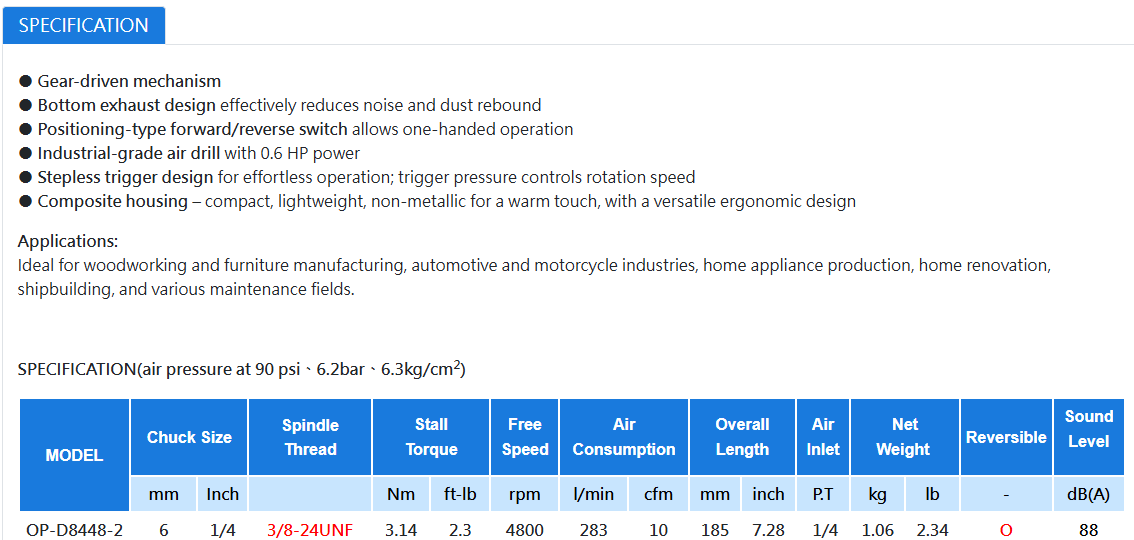

Technical Specifications of Onpin OP-D8448-2
- Brand: Onpin
- Model: OP-D8448-2
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Motor Power: 0.6 HP
- Chuck Size: 6 mm (1/4 inch)
- Spindle Thread: 3/8-24UNF
- Stall Torque: 3.14 Nm (2.3 ft-lb)
- Free Speed: 4,800 rpm
- Air Consumption: 283 l/min (10 cfm)
- Overall Length: 185 mm (7.28 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.06 kg (2.34 lb)
- Reversible Function: Yes (o)
- Sound Level: 88 dB(A)
Industrial Applications of Onpin OP-D8448-2
- Woodworking & Furniture Manufacturing: High-precision drilling and fastening on wood and composite panels.
- Automotive & Motorcycle Assembly: Speed-critical assembly tasks and hole drilling on vehicle components.
- Home Appliance Production: Precision drilling and fastening on appliance bodies and structural frames.
- Shipbuilding, Renovation & Maintenance Fields: Versatile maintenance operations, home renovation, and marine fitting repairs.
