/ Air Drill Onpin OP-D84140 - 6mm Chuck, 14000 RPM, 0.6 HP, Composite Housing, Reversible
Air Drill Onpin OP-D84140 - 6mm Chuck, 14000 RPM, 0.6 HP, Composite Housing, Reversible
The Onpin OP-D84140 industrial-grade air drill delivers 0.6 HP of power, featuring an ergonomic, lightweight 1.06 kg composite housing and a gear-driven mechanism operating at 90 psi / 6.2 bar. Equipped with a 6 mm (1/4 inch) chuck and 3/8-24UNF spindle thread, it reaches high speeds up to 14,000 rpm and a stall torque of 1 Nm. It incorporates a stepless speed control trigger, a positioning-type one-handed forward/reverse switch, a bottom exhaust system operating at 88 dB(A), and consumes 283 l/min of air via a 1/4 P.T inlet.
- OP-D84140
- OPD84140
- OP D84140
- Onpin OP-D84140
- Onpin OPD84140
- Onpin OP D84140
- OP-D84 series
- OP-D84140 model
- 6mm high speed air drill
- composite housing air drill 14000rpm
- Onpin 0.6 HP pneumatic drill
- 1/4 inch industrial air drill
- reversible composite pneumatic drill
Design file download links:
Other fileDescription
Specification OP-D84140
The Onpin OP-D84140 pneumatic air drill is an industrial-grade high-speed drilling tool delivering 0.6 HP of power, operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Driven by a gear mechanism, it features a 6 mm (1/4 inch) chuck paired with a 3/8-24UNF spindle thread, reaching impressive free speeds of 14,000 rpm and a stall torque of 1 Nm. Encased in a lightweight 1.06 kg ergonomic composite housing with a stepless trigger and bottom exhaust, it is engineered for rapid, high-precision industrial operations.
Key Features of Onpin OP-D84140
- 0.6 HP Industrial Motor & Ultra-High Speed: Achieves up to 14,000 rpm free speed for high-efficiency small-hole precision drilling.
- Ergonomic Composite Housing: Lightweight non-metallic body at only 1.06 kg (2.34 lb) offers a warm touch, compact size, and minimal operator fatigue.
- Stepless Speed Control Trigger: Trigger pressure directly regulates rotation speed for maximum precision and smooth control during start-up.
- Positioning-Type Reversible Switch: Enables effortless, single-handed forward and reverse directional toggling.
- Noise-Reducing Bottom Exhaust: Directs air flow downward away from the operator, maintaining sound levels at 88 dB(A) while eliminating dust rebound.

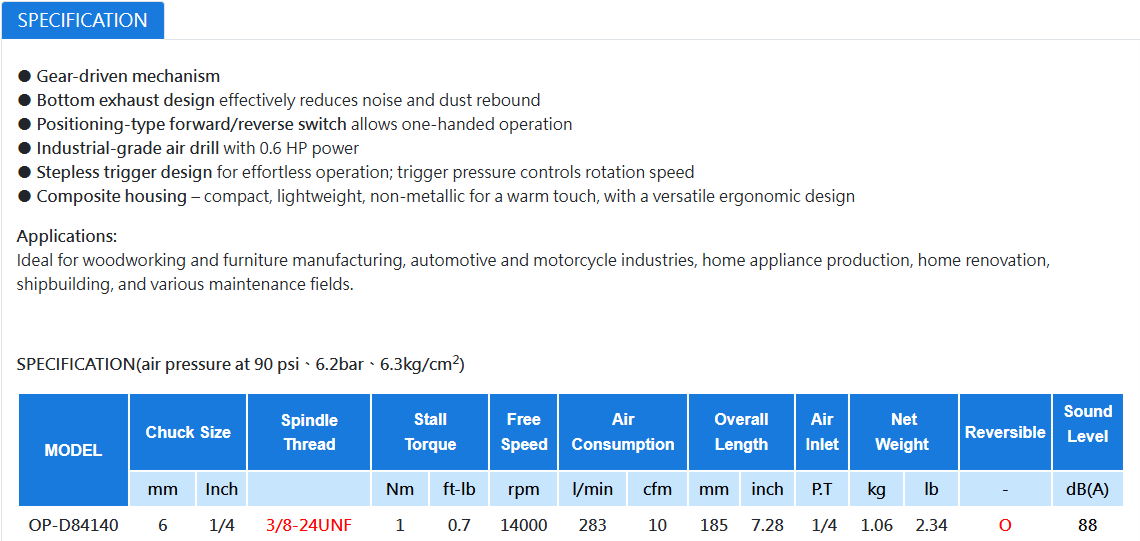

Technical Specifications of Onpin OP-D84140
- Brand: Onpin
- Model: OP-D84140
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 6 mm (1/4 inch)
- Spindle Thread: 3/8-24UNF
- Stall Torque: 1 Nm (0.7 ft-lb)
- Free Speed: 14,000 rpm
- Air Consumption: 283 l/min (10 cfm)
- Overall Length: 185 mm (7.28 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.06 kg (2.34 lb)
- Reversible Function: Yes (o)
- Sound Level: 88 dB(A)
Industrial Applications of Onpin OP-D84140
- Woodworking & Furniture Manufacturing: High-speed drilling for furniture assembly and fine wood joinery.
- Automotive & Motorcycle Industries: Precision drilling, light fastening, and maintenance tasks on assembly lines.
- Home Appliance Production: Sheet metal drilling and housing preparation in high-volume appliance manufacturing.
- Home Renovation & Fitting: Flexible indoor fitting, panel installation, and hardware mounting.
- Shipbuilding & General Maintenance: Structural maintenance, light metal fabrication, and routine equipment servicing.
