/ Air Drill Onpin OP-D9506-3 - 10mm Chuck, 39.9 Nm Torque, 650 RPM, 0.9 HP, Non-Reversible
Air Drill Onpin OP-D9506-3 - 10mm Chuck, 39.9 Nm Torque, 650 RPM, 0.9 HP, Non-Reversible
The Onpin OP-D9506-3 industrial-grade air drill features a high-output 0.9 HP motor engineered with a single-rotation design for simple structure and consistent performance. Fitted with a 10 mm (3/8 inch) chuck and 3/8"-24UNF spindle thread, it produces an impressive stall torque of 39.9 Nm at a low free speed of 650 rpm under standard 90 PSI / 6.2 bar pressure. Measuring 212 mm in overall length and weighing 1.65 kg, it utilizes a bottom exhaust configuration operating at 87 dB(A) with an air consumption rate of 367 l/min via a 1/4 P.T air inlet.
- OP-D9506-3
- OPD95063
- OP D9506 3
- Onpin OP-D9506-3
- Onpin OPD95063
- Onpin OP D9506 3
- OP-D9506 series
- OP-D9506-3 model
- 0.9 HP heavy duty air drill 39.9Nm
- 10mm single rotation pneumatic drill 650rpm
- Onpin 3/8 inch industrial air drill
- high torque metalworking air drill
- non reversible industrial pneumatic drill
Design file download links:
Other fileDescription

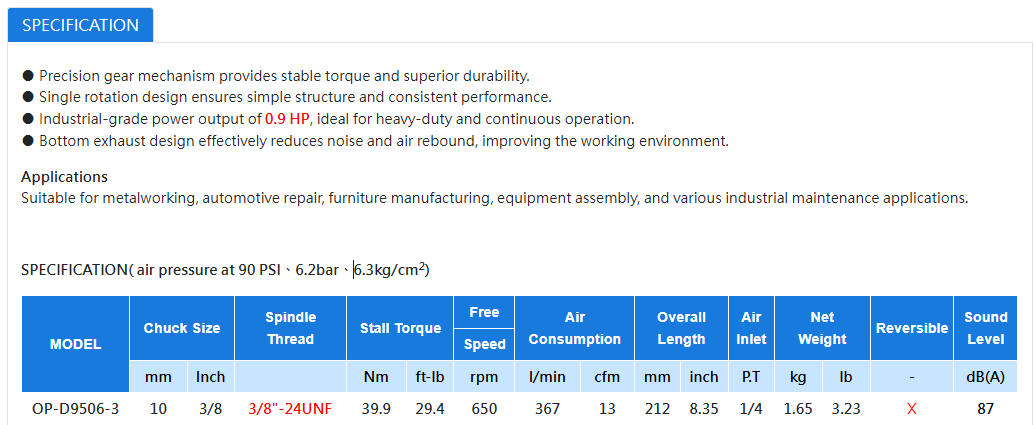

Specification OP-D9506-3
The Onpin OP-D9506-3 pneumatic air drill is a heavy-duty industrial drilling tool delivering a robust power output of 0.9 HP, operating at a standard air pressure of 90 PSI (6.2 bar / 6.3 kg/cm²). Engineered with a precision gear mechanism and a single-rotation design, it ensures a simple mechanical structure alongside consistent, high-durability performance. Fitted with a 10 mm (3/8 inch) chuck and a 3/8"-24UNF spindle thread, it yields a massive stall torque of 39.9 Nm (29.4 ft-lb) at a free speed of 650 rpm.
Key Features of Onpin OP-D9506-3
- High-Output 0.9 HP Motor: Provides exceptional power capacity tailored specifically for heavy-duty and continuous industrial operations.
- Precision Gears & Single-Rotation Design: Delivers stable torque output, enhanced tool longevity, and a streamlined, highly reliable mechanical structure.
- High Torque Capacity of 39.9 Nm: Excels in rigorous material penetration tasks requiring high torque at lower rotational speeds.
- Noise-Reducing Bottom Exhaust: Directs exhaust airflow downward to reduce operating noise down to 87 dB(A) while preventing air rebound to optimize workplace comfort.
Technical Specifications of Onpin OP-D9506-3
- Brand: Onpin
- Model: OP-D9506-3
- Operating Air Pressure: 90 PSI (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 10 mm (3/8 inch)
- Spindle Thread: 3/8"-24UNF
- Stall Torque: 39.9 Nm (29.4 ft-lb)
- Free Speed: 650 rpm
- Air Consumption: 367 l/min (13 cfm)
- Overall Length: 212 mm (8.35 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.65 kg (3.23 lb)
- Reversible Function: No / Single Rotation (X)
- Sound Level: 87 dB(A)
Industrial Applications of Onpin OP-D9506-3
- Metalworking: Heavy metal drilling and structural fabrication requiring high torque and reliable penetration.
- Automotive Repair: Chassis drilling, heavy structural servicing, and mechanical repair operations in automotive workshops.
- Furniture Manufacturing: Heavy-duty structural wood drilling and industrial frame assembly.
- Equipment Assembly: Component fastening and heavy assembly workflows on industrial production lines.
- Industrial Maintenance: General plant equipment servicing, heavy structural repairs, and routine maintenance tasks.
