/ Air Drill Onpin OP-D8432 - 10mm Chuck, 4.7 Nm Torque, 3200 RPM, 0.6 HP, Composite Housing
Air Drill Onpin OP-D8432 - 10mm Chuck, 4.7 Nm Torque, 3200 RPM, 0.6 HP, Composite Housing
The Onpin OP-D8432 industrial-grade air drill features a 0.6 HP motor housed in a lightweight 1.06 kg composite body driven by a gear mechanism at 90 psi / 6.2 bar air pressure. Equipped with a 10 mm (3/8 inch) chuck and 3/8-24UNF spindle thread, it yields a robust stall torque of 4.7 Nm and a free speed of 3,200 rpm. Designed for high-demand workflows, it offers a stepless speed control trigger, a positioning-type one-handed forward/reverse switch, a noise-reducing bottom exhaust system operating at 88 dB(A), and an air consumption rate of 283 l/min via a 1/4 P.T inlet.
- OP-D8432
- OPD8432
- OP D8432
- Onpin OP-D8432
- Onpin OPD8432
- Onpin OP D8432
- OP-D84 series
- OP-D8432 model
- 10mm composite air drill 4.7Nm
- reversible pneumatic drill 3200rpm
- Onpin 0.6 HP air drill
- 3/8 inch industrial pneumatic drill
- bottom exhaust composite air drill
Design file download links:
Other fileDescription

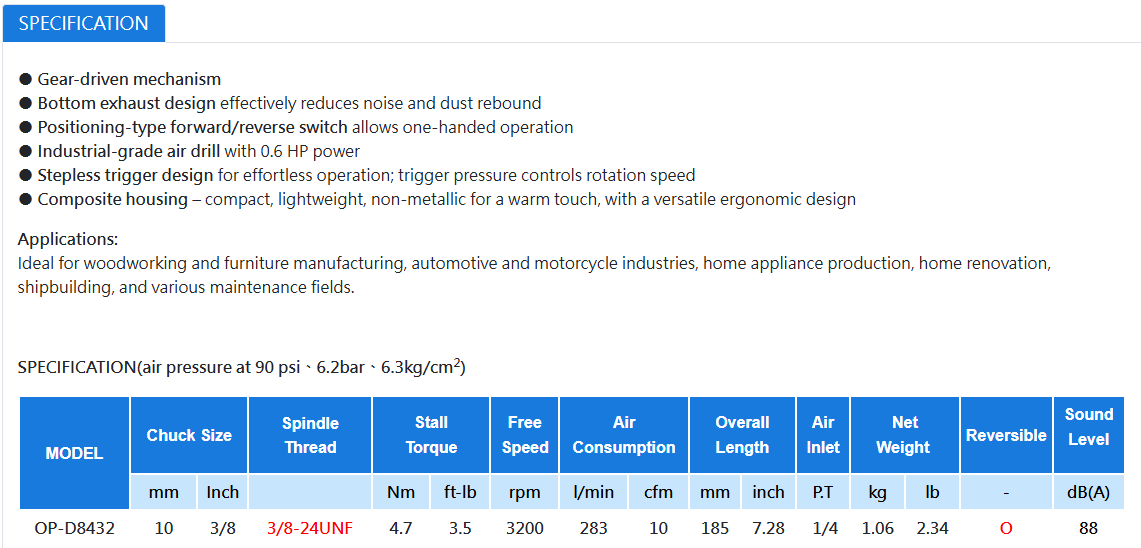

Specification OP-D8432
The Onpin OP-D8432 pneumatic air drill is an industrial-grade drilling tool delivering 0.6 HP of power, operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Driven by a gear mechanism, it features a 10 mm (3/8 inch) chuck paired with a 3/8-24UNF spindle thread, reaching a free speed of 3,200 rpm and a robust stall torque of 4.7 Nm (3.5 ft-lb). Encased in a lightweight 1.06 kg ergonomic composite housing with a stepless trigger and bottom exhaust system, it is engineered for heavy-duty, precise industrial drilling applications.
Key Features of Onpin OP-D8432
- 0.6 HP Motor & High Torque Output of 4.7 Nm: Gear-driven system delivers high torque for demanding material penetration and heavy assembly tasks.
- Ergonomic Composite Housing: Compact, lightweight non-metallic body at only 1.06 kg (2.34 lb) offers a warm touch and minimizes fatigue during continuous operation.
- Stepless Speed Control Trigger: Allows effortless and precise rotational speed regulation directly through trigger pressure.
- Positioning-Type Reversible Switch: Enables quick, effortless single-handed toggling between forward and reverse rotation.
- Noise-Reducing Bottom Exhaust: Directs airflow downward away from the operator, keeping sound levels at 88 dB(A) while preventing dust rebound.
Technical Specifications of Onpin OP-D8432
- Brand: Onpin
- Model: OP-D8432
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 10 mm (3/8 inch)
- Spindle Thread: 3/8-24UNF
- Stall Torque: 4.7 Nm (3.5 ft-lb)
- Free Speed: 3,200 rpm
- Air Consumption: 283 l/min (10 cfm)
- Overall Length: 185 mm (7.28 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.06 kg (2.34 lb)
- Reversible Function: Yes (o)
- Sound Level: 88 dB(A)
Industrial Applications of Onpin OP-D8432
- Woodworking & Furniture Manufacturing: Precision structural drilling and heavy frame joinery in furniture manufacturing plants.
- Automotive & Motorcycle Industries: Component drilling, frame assembly, and maintenance on production lines.
- Home Appliance Production: Sheet metal drilling, structural fastening, and appliance frame manufacturing.
- Home Renovation & Fitting: On-site installation, heavy framing fitting, and hardware mounting.
- Shipbuilding & Maintenance Fields: Heavy metal fabrication, structural maintenance, and general plant equipment servicing.
