Air Drill Onpin OP-D9519 - 10mm Chuck, 13.8 Nm Torque, 1900 RPM, 0.9 HP, Non-Reversible
The Onpin OP-D9519 industrial-grade air drill delivers a powerful 0.9 HP output utilizing a single-rotation design for a simplified structure and consistent performance during continuous heavy-duty operations. Fitted with a 10 mm (3/8 inch) chuck and 3/8"-24UNF spindle thread, it produces a stall torque of 13.8 Nm at a free speed of 1,900 rpm under a standard 90 PSI / 6.2 bar air pressure. Measuring 212 mm in overall length and weighing 1.57 kg, it features a noise-reducing bottom exhaust system operating at 87 dB(A) with an air consumption rate of 367 l/min via a 1/4 P.T inlet.
- OP-D9519
- OPD9519
- OP D9519
- Onpin OP-D9519
- Onpin OPD9519
- Onpin OP D9519
- OP-D9506 series
- OP-D95 series
- OP-D9506-3
- OP-D9519 model
- 0.9 HP heavy duty air drill 1900rpm
- 10mm single rotation pneumatic drill 13.8Nm
- Onpin 3/8 inch industrial air drill
- non reversible metalworking air drill
- bottom exhaust precision gear pneumatic drill
Design file download links:
Other fileDescription

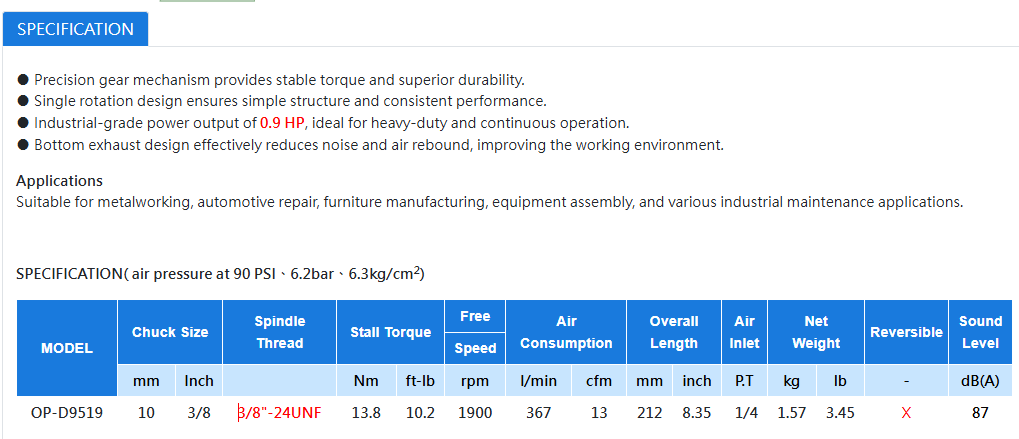

Specification OP-D9519
The Onpin OP-D9519 pneumatic air drill is a heavy-duty industrial drilling tool delivering 0.9 HP of power, operating at a standard air pressure of 90 PSI (6.2 bar / 6.3 kg/cm²). Driven by a precision gear mechanism and built with a single-rotation design, it ensures a robust mechanical structure and consistent operating performance. Equipped with a 10 mm (3/8 inch) chuck and a 3/8"-24UNF spindle thread, it reaches a free speed of 1,900 rpm and a stall torque of 13.8 Nm (10.2 ft-lb), making it ideal for continuous industrial production workflows.
Key Features of Onpin OP-D9519
- 0.9 HP Industrial Power Output: Delivers high power capacity tailored for continuous, heavy-duty industrial operation.
- Precision Gear Mechanism: Ensures stable torque delivery and superior mechanical durability under rigorous working conditions.
- Single Rotation Design: Simplifies internal mechanical structure to maximize operational reliability and tool service life.
- Noise-Reducing Bottom Exhaust: Directs air flow downward to lower noise levels to 87 dB(A) while preventing air rebound toward the operator.
Technical Specifications of Onpin OP-D9519
- Brand: Onpin
- Model: OP-D9519
- Operating Air Pressure: 90 PSI (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 10 mm (3/8 inch)
- Spindle Thread: 3/8"-24UNF
- Stall Torque: 13.8 Nm (10.2 ft-lb)
- Free Speed: 1,900 rpm
- Air Consumption: 367 l/min (13 cfm)
- Overall Length: 212 mm (8.35 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.57 kg (3.45 lb)
- Reversible Function: No / Single Rotation (X)
- Sound Level: 87 dB(A)
Industrial Applications of Onpin OP-D9519
- Metalworking: High-precision drilling in sheet metal, structural steel, and mechanical parts.
- Automotive Repair: Fabrication drilling, chassis maintenance, and component servicing in repair workshops.
- Furniture Manufacturing: Structural hole drilling in heavy wood joinery and metal frame assembly.
- Equipment Assembly: Component installation and heavy assembly workflows on industrial production lines.
- Industrial Maintenance: General plant equipment servicing, structural repairs, and routine facility maintenance.
