Airtac PHW Stainless Steel Male Branch Tee Pneumatic Fitting Push-In Air Tube Connector

Specification:

Product Overview

The Airtac PHW Series Male Branch Tee Pneumatic Fitting is designed to split airflow into multiple directions in pneumatic systems. With its three-way tee design and push-in connectors, it provides flexible installation and efficient air distribution for industrial applications.

Key Features & Characteristics

1. Three-way tee design for efficient air distribution
2. Combination of male thread and push-in connectors for quick installation
3. Made from SUS304 stainless steel, offering excellent corrosion resistance
4. Threaded section coated with sealant for leak-proof performance
5. Internal structure includes POM chuck and NBR O-ring for durability and tight sealing
6. Strong construction for high pressure resistance and stable operation
7. Ensures even airflow with minimal pressure loss

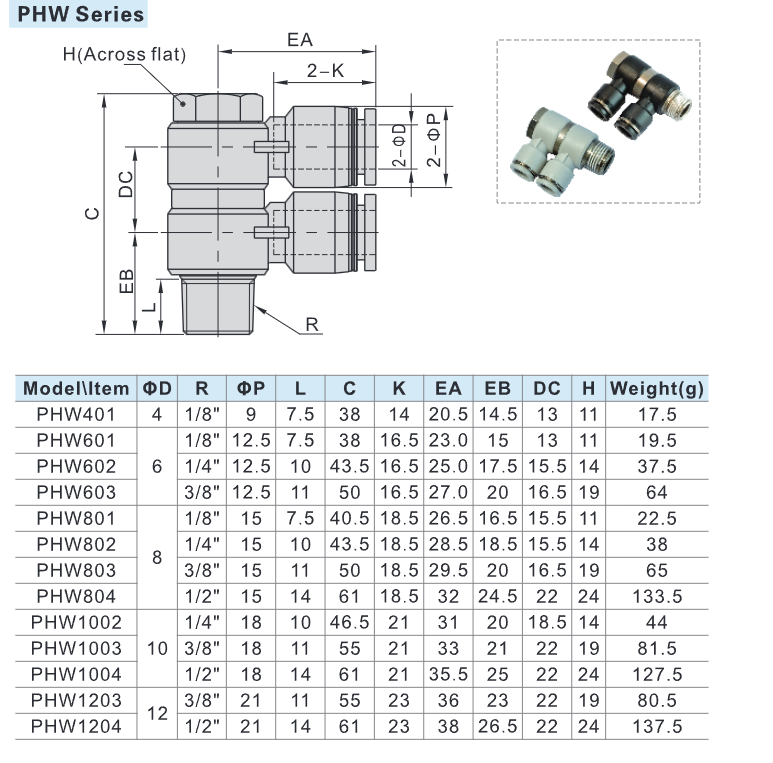

Technical Specifications

1. Product series: PHW Series (Male Branch Tee Fitting)
2. Connection type: 3-way tee – male thread + push-in
3. Materials: SUS304 / PBT / POM / NBR
4. Operating pressure: 0 ~ 1.0 MPa (0 ~ 10 kgf/cm²)
5. Proof pressure: 1.5 MPa
6. Vacuum pressure: -750 mmHg (10 Torr)
7. Operating temperature: -20°C to 70°C
8. Thread sizes: 1/8”, 1/4”, 3/8”, 1/2”
9. Tube sizes: Φ4, Φ6, Φ8, Φ10, Φ12
10. Color: Grey / Black

Advantages

1. Flexible air distribution, improving system efficiency
2. High corrosion resistance for long service life
3. Quick installation with push-in connection
4. Ensures leak-proof and reliable performance
5. Stable operation across various environments

Applications

1. Industrial pneumatic systems
2. Automation and robotic systems
3. Air distribution for multiple devices
4. Manufacturing and packaging machinery
5. Electronics, food processing, and medical industries
