Airtac PHF Stainless Steel Male Elbow Double Thread Pneumatic Fitting 90 Degree Push-In Connector

Specification:

Product Overview

The Airtac PHF Series Male Elbow Double Thread Pneumatic Fitting is designed for connecting and redirecting airflow at a 90-degree angle in pneumatic systems. Featuring a dual-thread design combined with a push-in connector, it provides flexible installation and secure, leak-proof performance.

Key Features & Characteristics

1. 90° elbow design with dual male threads, suitable for various connection configurations
2. Integrated push-in connector for quick and tool-free tubing installation
3. Constructed from SUS304 stainless steel, ensuring excellent corrosion resistance
4. Threaded sections coated with sealant for leak-proof sealing
5. Internal structure includes NBR O-rings and POM chuck for durability and tight sealing
6. Strong construction for high pressure resistance and long-term stability
7. Provides smooth airflow with minimal pressure loss

Technical Specifications

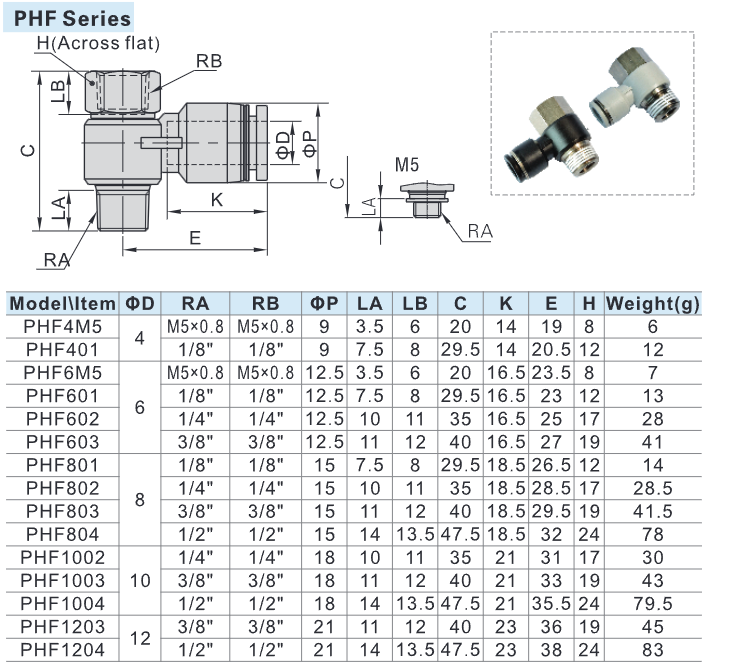

1. Product series: PHF Series (Male Elbow Double Thread)
2. Connection type: 90° elbow – dual male thread + push-in
3. Materials: SUS304 / PBT / POM / NBR
4. Operating pressure: 0 ~ 1.0 MPa (0 ~ 10 kgf/cm²)
5. Proof pressure: 1.5 MPa
6. Vacuum pressure: -750 mmHg (10 Torr)
7. Operating temperature: -20°C to 70°C
8. Thread sizes: M5, 1/8”, 1/4”, 3/8”, 1/2”
9. Tube sizes: Φ4, Φ6, Φ8, Φ10, Φ12
10. Color: Grey / Black

Advantages

1. Flexible installation, suitable for multiple system configurations
2. High sealing performance, preventing air leakage
3. Excellent corrosion resistance for extended lifespan
4. Quick installation, saving time and labor costs
5. Stable operation with reliable system performance

Applications

1. Industrial pneumatic systems
2. Automation and robotic systems
3. Manufacturing and packaging machinery
4. Electronics, food processing, and medical industries
5. Factory air distribution systems
