POC Series Pneumatic Male Connector Airtac – Push-In Fittings, M5 to 1/2", Compact, Leak-Proof Design

Specification:

Product Concept

The POC Series pneumatic fittings are compact push-in male connectors designed for efficient tube connections in pneumatic systems. With a shortened body design, they are ideal for space-saving installations while maintaining strong sealing performance.

Product Features and Characteristics

1. Compact design: Shorter body length, perfect for tight installation spaces.
2. Push-in connection: Quick and easy tube insertion, no tools required.
3. Standard male threads: Available in M5, 1/8", 1/4", 3/8", 1/2" for wide compatibility.
4. Nickel-plated metal body: Provides excellent corrosion resistance and durability.
5. Release ring mechanism: Enables quick disconnection without damaging the tube.
6. High sealing performance: Built-in sealing ensures leak-free operation.
7. Compatible with multiple tube sizes: Φ4, Φ6, Φ8, Φ10, Φ12.

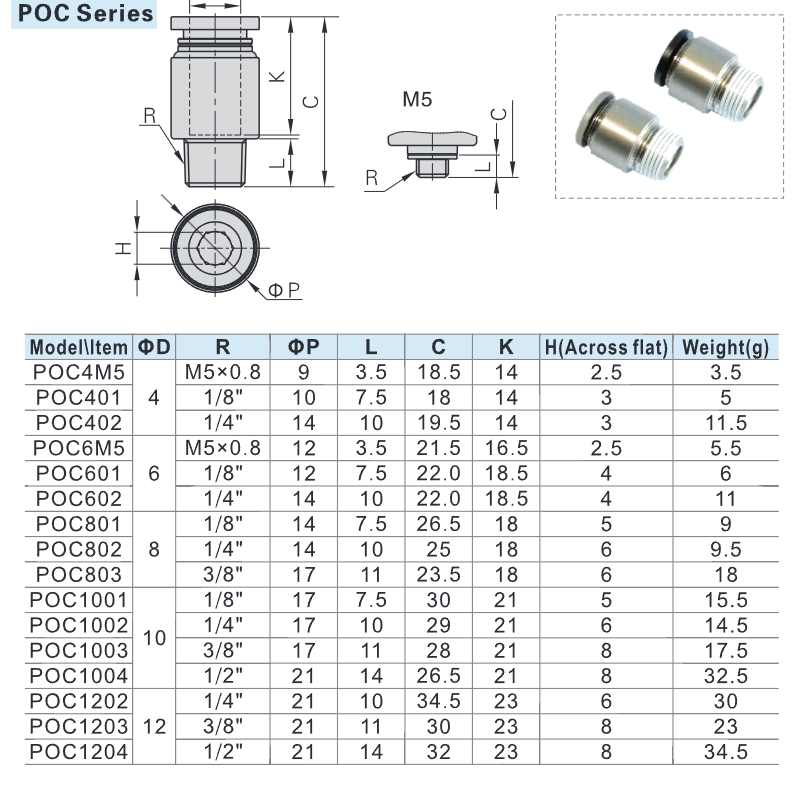

Technical Specifications

1. Operating pressure: 0~10kgf/cm² (0~1.0MPa)
2. Negative pressure: -750mmHg (10 Torr)
3. Proof pressure: 1.5MPa
4. Working temperature: -20°C ~ 70°C
5. Material: Nickel-plated metal + engineering plastic
6. Applicable tubing: Soft nylon or polyurethane
7. Color: Gray / Black

Product Advantages

1. Space-saving compact design
2. Quick and easy installation
3. Secure and leak-proof connection
4. Durable and corrosion-resistant
5. Easy maintenance and reuse

Applications

1. Industrial pneumatic systems: Production lines, air compressors
2. Automation industry: Robotics and control systems
3. Mechanical, automotive, and electronics industries
4. Applications requiring compact installation space
