PL Series Pneumatic Elbow Fittings Airtac – Push-In Male Elbow Connectors, Stainless Steel 304, Leak-Proof

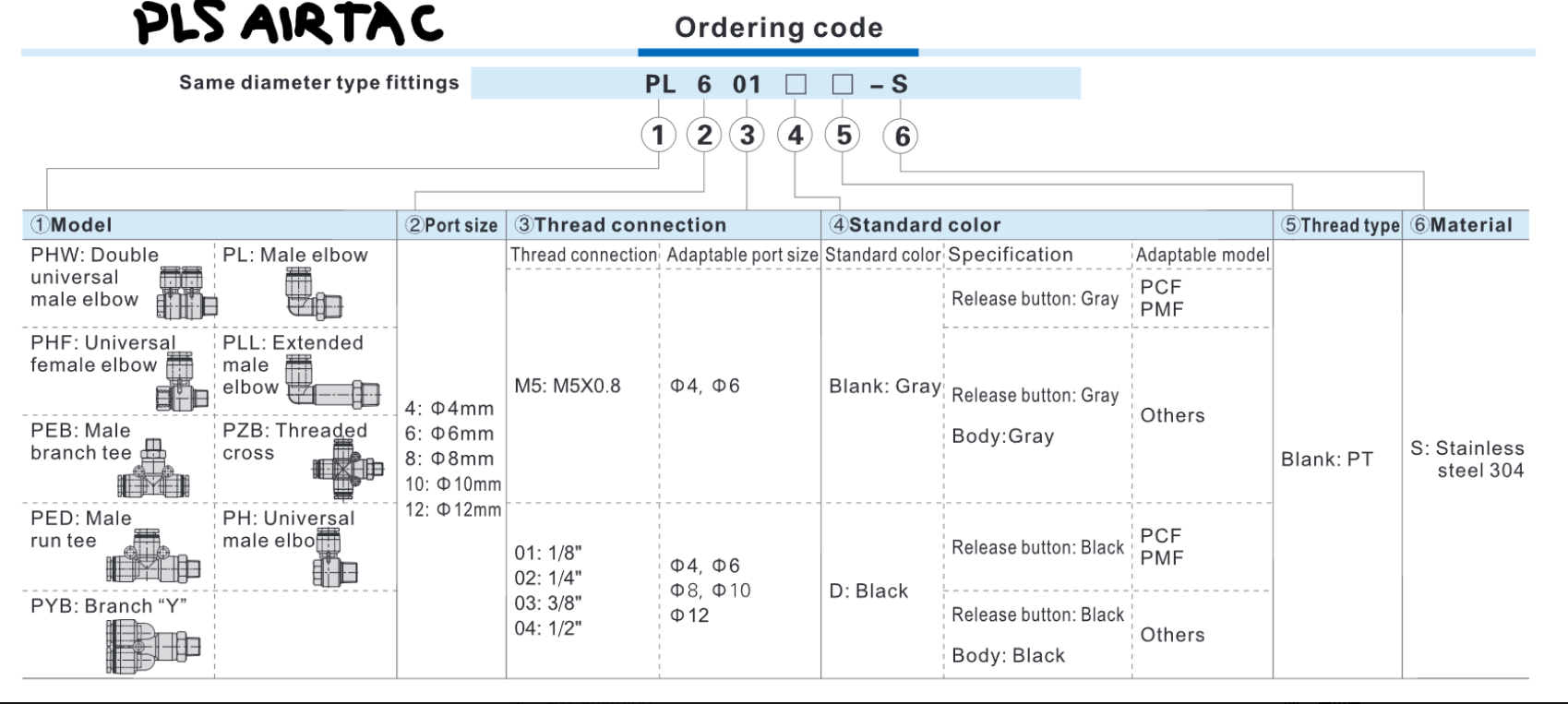

Specification:

Product Concept

The PL Series pneumatic fittings are push-in male elbow connectors (90°) designed to connect and redirect air tubing in pneumatic systems. They provide quick installation, strong sealing, and efficient space utilization.

Product Features and Characteristics

1. 90° elbow design: Enables flexible tube routing and space optimization.
2. Push-in connection: Quick tube insertion and easy release with a release ring.
3. Stainless steel 304 construction: Offers excellent corrosion resistance for harsh environments.
4. Standard male threads: Available in M5, 1/8", 1/4", 3/8", 1/2".
5. High flow performance: Ensures stable and efficient airflow.
6. Reliable sealing: Built-in sealant and gasket provide leak-proof performance.
7. Wide compatibility: Supports tube sizes Φ4, Φ6, Φ8, Φ10, Φ12.

Technical Specifications

1. Operating pressure: 0~10kgf/cm² (0~1.0MPa)
2. Negative pressure: -750mmHg (10 Torr)
3. Proof pressure: 1.5MPa
4. Working temperature: -20°C ~ 70°C
5. Material: Stainless steel 304 + engineering plastic
6. Applicable tubing: Soft nylon or polyurethane
7. Color: Gray / Black

Product Advantages

1. Excellent corrosion resistance
2. Space-saving elbow design
3. Quick and tool-free installation
4. Secure and leak-proof connection
5. Long service life and durability

Applications

1. Industrial pneumatic systems: Factories, production lines
2. Automation industry: Robotics and control systems
3. Humid or corrosive environments
4. Mechanical, automotive, and electronics industries
