PC Series Pneumatic Male Connector Airtac – Push-In Fittings, M5 to 1/2", High Durability, Leak-Proof

Specification:

Product Concept

The PC Series pneumatic fittings are push-in male connectors designed for quick and secure connection of air tubing to threaded ports. They provide fast installation, strong sealing, and easy disconnection, improving system efficiency.

Product Features and Characteristics

1. Push-in design: Simply insert the tube for instant connection, no complex tools required.
2. Standard male threads (M5 – 1/2"): Compatible with a wide range of pneumatic equipment.
3. Nickel-plated metal body: Offers excellent corrosion resistance and mechanical strength.
4. Release ring mechanism: Allows quick tube removal without damage.
5. High sealing performance: Built-in sealing ensures leak-free operation.
6. Multiple tube sizes supported: From Φ4 to Φ12, suitable for various applications.

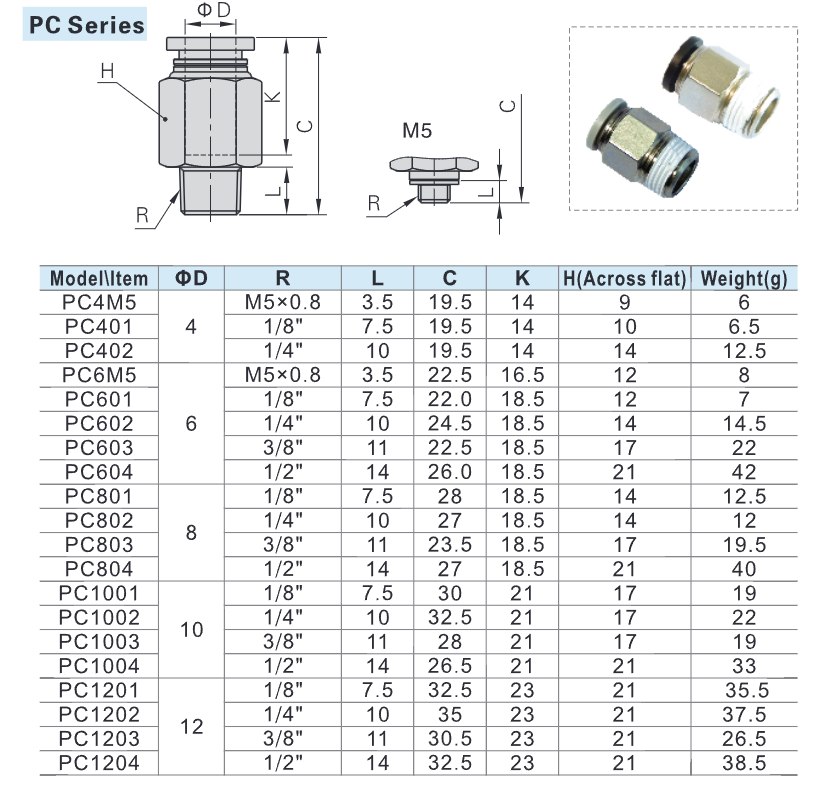

Technical Specifications

1. Operating pressure: 0~10kgf/cm² (0~1.0MPa)
2. Negative pressure: -750mmHg (10 Torr)
3. Proof pressure: 1.5MPa
4. Working temperature: -20°C ~ 70°C
5. Material: Nickel-plated metal + engineering plastic
6. Applicable tubing: Soft nylon or polyurethane
7. Tube sizes: Φ4, Φ6, Φ8, Φ10, Φ12
8. Thread types: M5, 1/8", 1/4", 3/8", 1/2"

Product Advantages

1. Quick and easy installation
2. Secure and leak-proof connection
3. Durable and corrosion-resistant
4. Easy maintenance and reuse
5. Highly versatile for pneumatic systems

Applications

1. Industrial pneumatic systems: Air compressors, production lines
2. Automation industry: Robotics and control systems
3. Mechanical, automotive, electronics industries
4. General pneumatic equipment and installations
