Airtac PYB Stainless Steel Male Y Branch Pneumatic Fitting Push-In Air Tube Connector

Specification:

Product Overview

The Airtac PYB Series Male Y Branch Pneumatic Fitting is designed to split airflow into two directions using a Y-shaped structure, ensuring smoother air distribution and reduced pressure loss in pneumatic systems. Compared to standard tee fittings, the Y design provides more stable and efficient airflow.

Key Features & Characteristics

1. Y-shaped branch design for smoother and more balanced airflow distribution
2. Combination of male thread and push-in connector for quick installation
3. Made from SUS304 stainless steel, ensuring high corrosion resistance and durability
4. Threaded section coated with sealant for leak-proof performance
5. Internal structure includes NBR O-ring and POM chuck for secure tubing connection
6. Compact design suitable for tight installation spaces
7. Provides stable airflow with reduced pressure loss

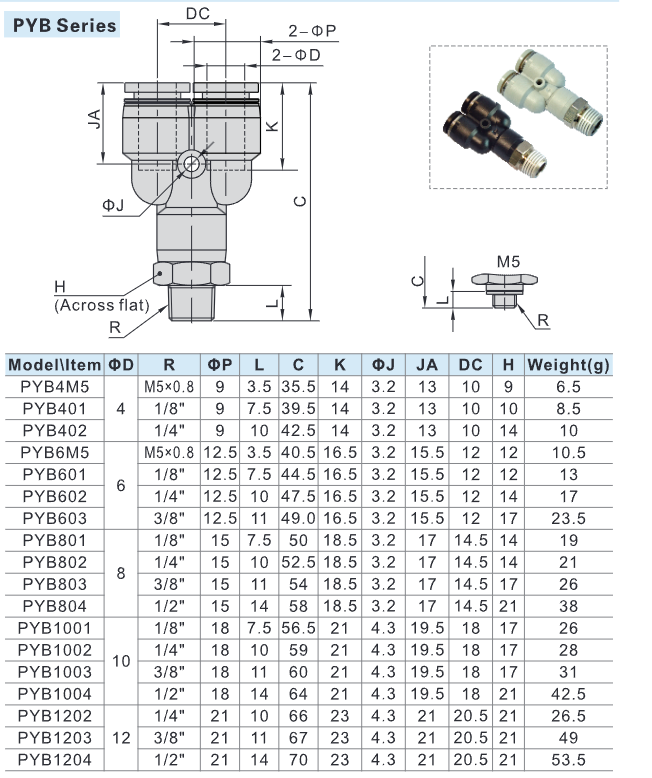

Technical Specifications

1. Product series: PYB Series (Male Y Branch Fitting)
2. Connection type: Y-branch – male thread + push-in
3. Materials: SUS304 / PBT / POM / NBR
4. Operating pressure: 0 ~ 1.0 MPa (0 ~ 10 kgf/cm²)
5. Proof pressure: 1.5 MPa
6. Vacuum pressure: -750 mmHg (10 Torr)
7. Operating temperature: -20°C to 70°C
8. Thread sizes: M5, 1/8”, 1/4”, 3/8”, 1/2”
9. Tube sizes: Φ4, Φ6, Φ8, Φ10, Φ12
10. Color: Grey / Black

Advantages

1. More efficient airflow splitting than tee fittings, reducing pressure loss
2. Excellent corrosion resistance for industrial environments
3. Quick installation with push-in connection
4. Ensures leak-proof and reliable performance
5. Stable operation with long service life

Applications

1. Industrial pneumatic systems
2. Automation and robotic systems
3. Air distribution for multiple devices
4. Manufacturing and packaging machinery
5. Electronics, food processing, and medical industries
