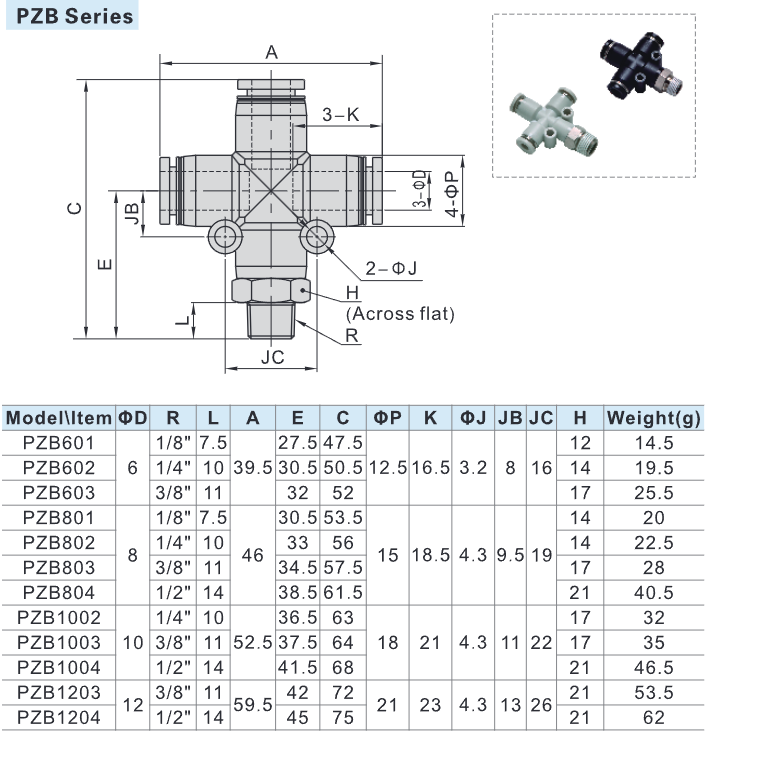

PZB Series Pneumatic Push-In Union Tee Fitting, 3 Way Air Hose Connector, Stainless Steel 304 Threaded Quick Connect Adapter

Specification:

English Product Description

PZB Series is a 3-way pneumatic tee push-in fitting designed for connecting or splitting air tubing in pneumatic systems. It provides fast installation, secure tube holding, and reliable sealing performance for compressed air applications.

Key Features

1. Tee shape 3-port design for easy air line distribution.
2. Push-in connection allows quick tube installation without complex tools.
3. Threaded section made of 304 stainless steel for corrosion resistance.
4. Multiple sizes available for different tubing diameters.
5. Built-in sealing structure helps reduce air leakage.
6. Body color available in grey / black.

Technical Specifications

1. Product Series: PZB Series
2. Type: 3-way pneumatic tee fitting
3. Connection Style: Push-in / male thread
4. Operating Pressure: 0 ~ 10 kgf/cm² (0 ~ 1.0 MPa)
5. Negative Pressure: -750 mmHg (10 Torr)
6. Proof Pressure: 1.5 MPa
7. Working Temperature: -20°C to 70°C
8. Applicable Tubing: Soft nylon / polyurethane
9. Thread Material: 304 Stainless Steel
10. Available Models: PZB601, PZB602, PZB603, PZB801, PZB802, PZB803, PZB804, PZB1002, PZB1003, PZB1004, PZB1203, PZB1204

Advantages

1. Fast and simple installation.
2. Strong and leak-resistant connection.
3. High durability under pressure.
4. Rust and corrosion resistant.
5. Easy maintenance and replacement.

Applications

1. Air compressor systems
2. Industrial automation lines
3. Packaging machines
4. CNC machines
5. Pneumatic valve systems
6. Mechanical workshops
7. General industrial air piping systems
