Airtac PED Stainless Steel Male Branch Elbow Pneumatic Fitting Push-In Air Tube Connector

Specification:

Product Overview

The Airtac PED Series Male Branch Elbow Pneumatic Fitting is designed to split and redirect airflow at a 90-degree angle in pneumatic systems. With its three-way elbow design, it optimizes installation space and improves system efficiency in industrial automation.

Key Features & Characteristics

1. 3-way 90° elbow design, combining air distribution and direction change
2. Combination of male thread and push-in connector for quick installation
3. Made from SUS304 stainless steel, ensuring high corrosion resistance and durability
4. Threaded section coated with sealant for leak-proof performance
5. Internal structure includes POM chuck and NBR O-ring for secure tubing and tight sealing
6. Compact design suitable for tight installation spaces
7. Provides stable airflow with minimal pressure loss

Technical Specifications

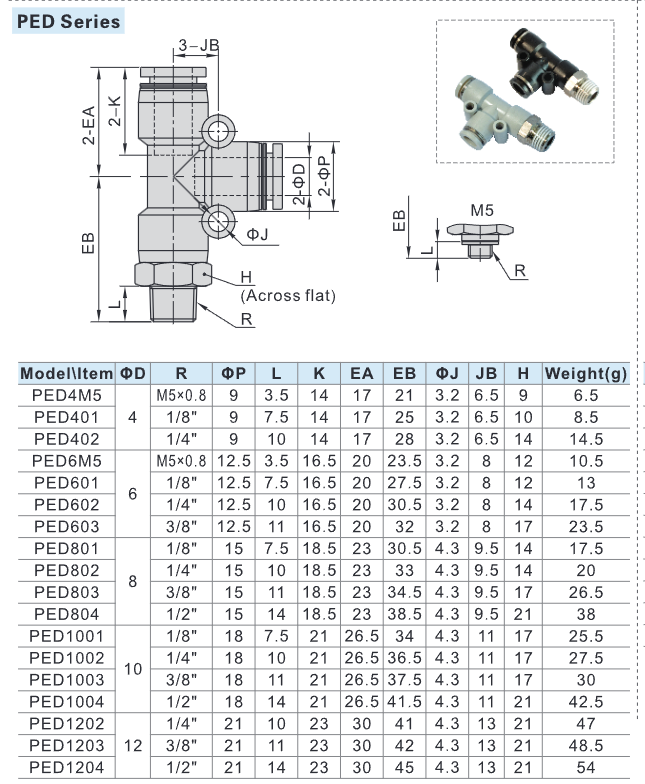

1. Product series: PED Series (Male Branch Elbow Fitting)
2. Connection type: 90° elbow tee – male thread + push-in
3. Materials: SUS304 / PBT / POM / NBR
4. Operating pressure: 0 ~ 1.0 MPa (0 ~ 10 kgf/cm²)
5. Proof pressure: 1.5 MPa
6. Vacuum pressure: -750 mmHg (10 Torr)
7. Operating temperature: -20°C to 70°C
8. Thread sizes: M5, 1/8”, 1/4”, 3/8”, 1/2”
9. Tube sizes: Φ4, Φ6, Φ8, Φ10, Φ12
10. Color: Grey / Black

Advantages

1. Combines branching and direction change, reducing components and space
2. Excellent corrosion resistance for industrial environments
3. Quick installation with push-in connection
4. Ensures leak-proof and reliable performance
5. Stable operation with long service life

Applications

1. Industrial pneumatic systems
2. Automation and robotic systems
3. Air distribution at corner positions
4. Manufacturing and packaging machinery
5. Electronics, food processing, and medical industries
