Airtac PH Stainless Steel Male Elbow Pneumatic Fitting 90 Degree Push-In Air Tube Connector

Specification:

Product Overview

The Airtac PH Series Male Elbow Pneumatic Fitting is designed to connect air tubes in pneumatic systems with a 90-degree angle, allowing flexible direction changes of airflow. It helps optimize installation space while ensuring stable and efficient system performance.

Key Features & Characteristics

1. 90° male elbow design, ideal for installation in tight or angled spaces
2. Push-in connection for quick and tool-free tubing installation
3. Made from SUS304 stainless steel, providing excellent corrosion resistance
4. Thread section coated with sealant for leak-proof performance
5. Internal structure includes POM chuck and NBR O-ring for durability and tight sealing
6. Ensures smooth and stable airflow performance
7. Compatible with nylon and polyurethane tubing

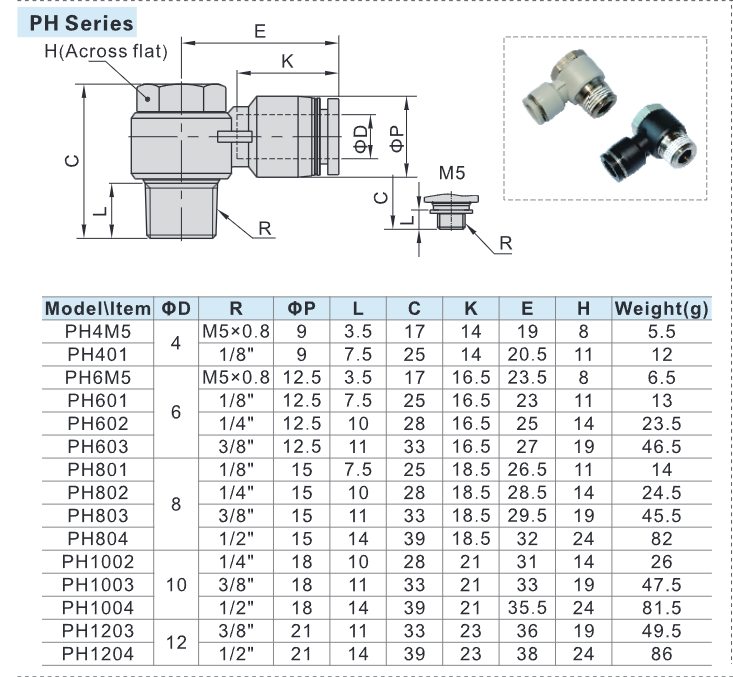

Technical Specifications

1. Product series: PH Series (Male Elbow Fitting)
2. Connection type: 90° elbow – male thread + push-in
3. Materials: SUS304 / PBT / POM / NBR
4. Operating pressure: 0 ~ 1.0 MPa (0 ~ 10 kgf/cm²)
5. Vacuum pressure: -750 mmHg (10 Torr)
6. Operating temperature: -20°C to 70°C
7. Thread sizes: M5, 1/8”, 1/4”, 3/8”, 1/2”
8. Tube sizes: Φ4, Φ6, Φ8, Φ10, Φ12
9. Color: Grey / Black

Advantages

1. Quick and easy installation, saving time and effort
2. High corrosion resistance for long service life
3. Compact design suitable for various installation spaces
4. Ensures leak-proof and reliable connection
5. Stable performance under different working conditions

Applications

1. Industrial pneumatic systems
2. Automation and robotic systems
3. Manufacturing and packaging machinery
4. Electronics, food processing, and medical industries
5. Air distribution systems in factories
