Airtac BESL Stainless Steel Adjustable Pneumatic Silencer Exhaust Muffler Noise Reduction Valve

Specification:

Product Overview

The Airtac BESL Adjustable Pneumatic Silencer is designed to reduce exhaust noise while allowing precise airflow adjustment in pneumatic systems. Unlike standard silencers, it features an integrated flow control knob, enabling flexible exhaust regulation and improved system efficiency.

Key Features & Characteristics

1. Compact cylindrical design for easy installation on exhaust ports
2. Built-in adjustable knob for precise airflow control
3. Constructed from SUS304 stainless steel for excellent corrosion resistance
4. Porous structure provides effective noise reduction (~20 dB)
5. Allows simultaneous airflow adjustment and noise reduction
6. Standard thread sizes 1/8”, 1/4”, 3/8”, 1/2” for easy connection
7. Durable construction ensures long-term stable performance

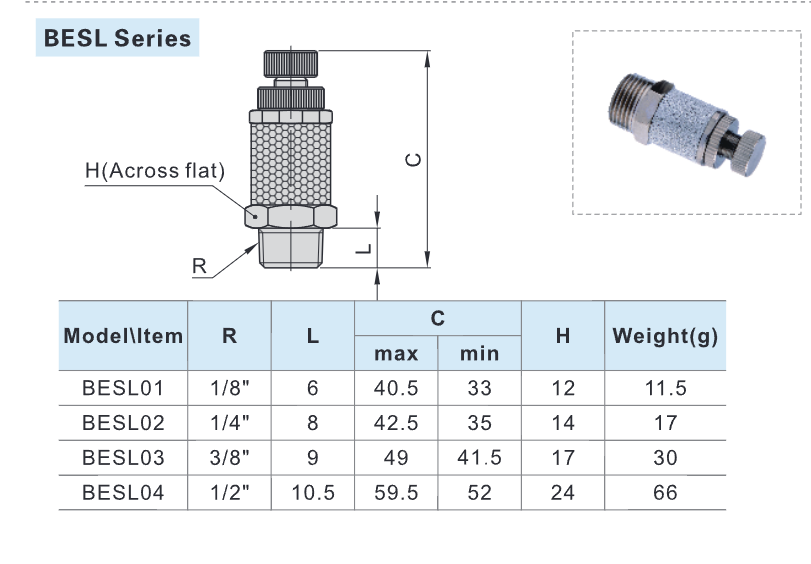

Technical Specifications

1. Product series: BESL Series (Adjustable Silencer)
2. Material: SUS304 Stainless Steel
3. Operating pressure: 0 ~ 1.0 MPa (0 ~ 10 kgf/cm²)
4. Proof pressure: 1.5 MPa
5. Vacuum pressure: -750 mmHg (10 Torr)
6. Operating temperature: -20°C to 70°C
7. Thread sizes: 1/8”, 1/4”, 3/8”, 1/2”
8. Noise reduction: approx. 20 dB

Advantages

1. Noise reduction combined with airflow control for optimized performance
2. High corrosion resistance, suitable for industrial environments
3. Compact design with easy installation and replacement
4. Helps protect pneumatic systems from dust and contaminants
5. Reliable operation with long service life

Applications

1. Industrial pneumatic systems
2. Installed on exhaust ports of solenoid valves and cylinders
3. Manufacturing and automation machinery
4. Electronics, food processing, and medical industries
5. Environments requiring noise reduction with adjustable airflow control
