PKD Series Pneumatic Air Manifold Fitting, Multi Port Push In Connector, Stainless Steel 304 Threaded Hose Distributor Block

Specification:

English Product Description

PKD Series is a multi-port pneumatic air manifold designed to distribute compressed air from one inlet to multiple outlet lines within the same system. It is ideal for industrial automation, machinery, and pneumatic control systems requiring organized and efficient air distribution.

Key Features

1. Multi-port manifold design supplies air to several devices simultaneously.
2. Quick push-in tube connection for easy and fast installation.
3. Male threaded inlet for secure connection to valves, compressors, or main air lines.
4. Threaded parts made of 304 stainless steel for corrosion resistance.
5. Excellent sealing structure helps prevent air leakage.
6. Available in grey / black body color.

Technical Specifications

1. Product Series: PKD Series
2. Product Type: Pneumatic air manifold
3. Connection Type: Push-in / male thread
4. Operating Pressure: 0 ~ 10 kgf/cm² (0 ~ 1.0 MPa)
5. Negative Pressure: -750 mmHg (10 Torr)
6. Proof Pressure: 1.5 MPa
7. Working Temperature: -20°C to 70°C
8. Applicable Tubing: Soft nylon / polyurethane
9. Color: Grey / Black

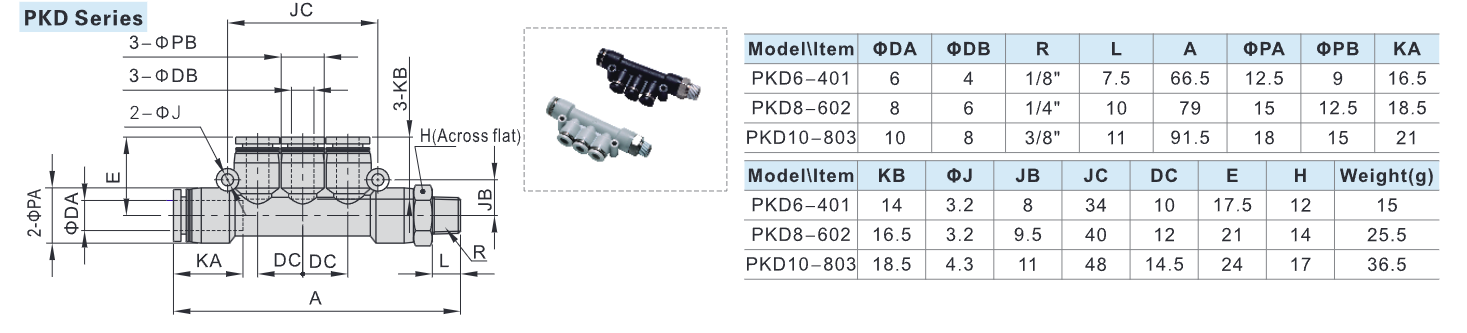

10. Models:
11. PKD6-401
12. PKD8-602
13. PKD10-803

Advantages

1. Even air distribution to multiple outlets.
2. Saves installation space.
3. Fast setup and easy maintenance.
4. Leak-resistant and efficient operation.
5. Durable construction with long service life.

Applications

1. Air compressor systems
2. Pneumatic control cabinets
3. Industrial automation lines
4. Packaging machinery
5. CNC equipment
6. Robotics systems
7. Workshops and factories
