Airtac 4F Series Pneumatic Foot Pedal Valve 5/2 Way, Industrial Air Foot Operated Control Valve for Pneumatic Systems

Specification :

1. Product Overview

1. The 4F Series is a 5/2 way pneumatic foot pedal valve designed to control airflow direction using foot operation instead of manual hand control.
2. It enables operators to control pneumatic actuators while keeping both hands free for work tasks.
3. The valve is widely used in industrial automation systems requiring safe and efficient manual control.

2. Features & Design

1. Direct-acting aluminum foot pedal provides stable operation and quick response.
2. Durable mechanical structure ensures reliable long-term performance.
3. Optional locking mechanism allows maintaining valve position when required.
4. Protective guard option prevents accidental operation.
5. Compact design allows easy installation near workstations.
6. Lubrication-free operation reduces maintenance requirements.
7. Sensitive switching mechanism ensures fast airflow direction change.

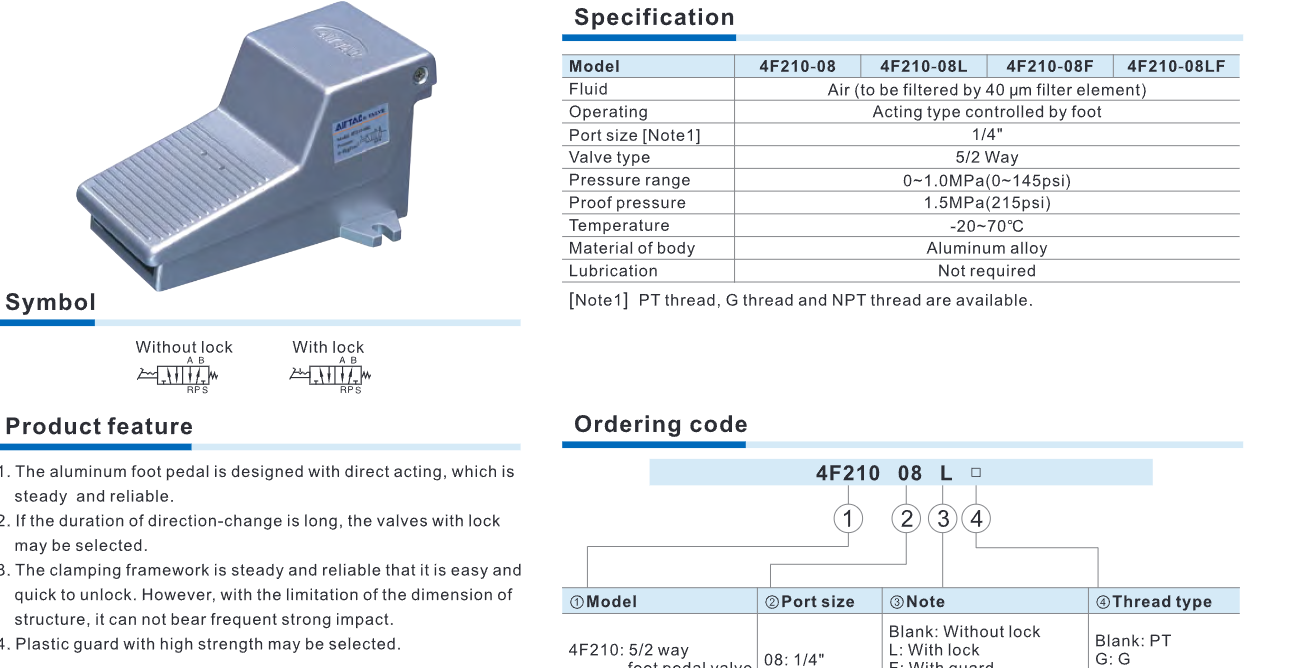

3. Technical Specifications

1. Valve type: 5/2 way foot pedal valve
2. Fluid: Filtered compressed air (40µm filtration)
3. Operating pressure: 0 ~ 1.0 MPa (0 ~ 145 psi)
4. Proof pressure: 1.5 MPa
5. Operating temperature: -20°C ~ 70°C
6. Port size: 1/4”
7. Body material: Aluminum alloy
8. Operation mode: Foot operated
9. Thread type: PT, G, or NPT
10. Options: Without lock, with lock, with guard, lock + guard

4. Advantages

1. Enables hands-free machine operation.
2. Robust construction suitable for industrial environments.
3. Fast response for precise actuator control.
4. Long service life and reliable performance.
5. Easy installation with minimal maintenance.
6. Improves operator safety and workflow efficiency.

5. Applications

1. Pneumatic cylinder control for presses and stamping machines
2. Industrial assembly and production lines
3. Packaging machinery and mechanical equipment
4. Hands-free automation control systems
5. Operator-controlled pneumatic workstations
