M5 Series Mechanical Control Valve 5/2 Way Pneumatic Valve – Manual Air Control Valve Aluminum Body Industrial Automation

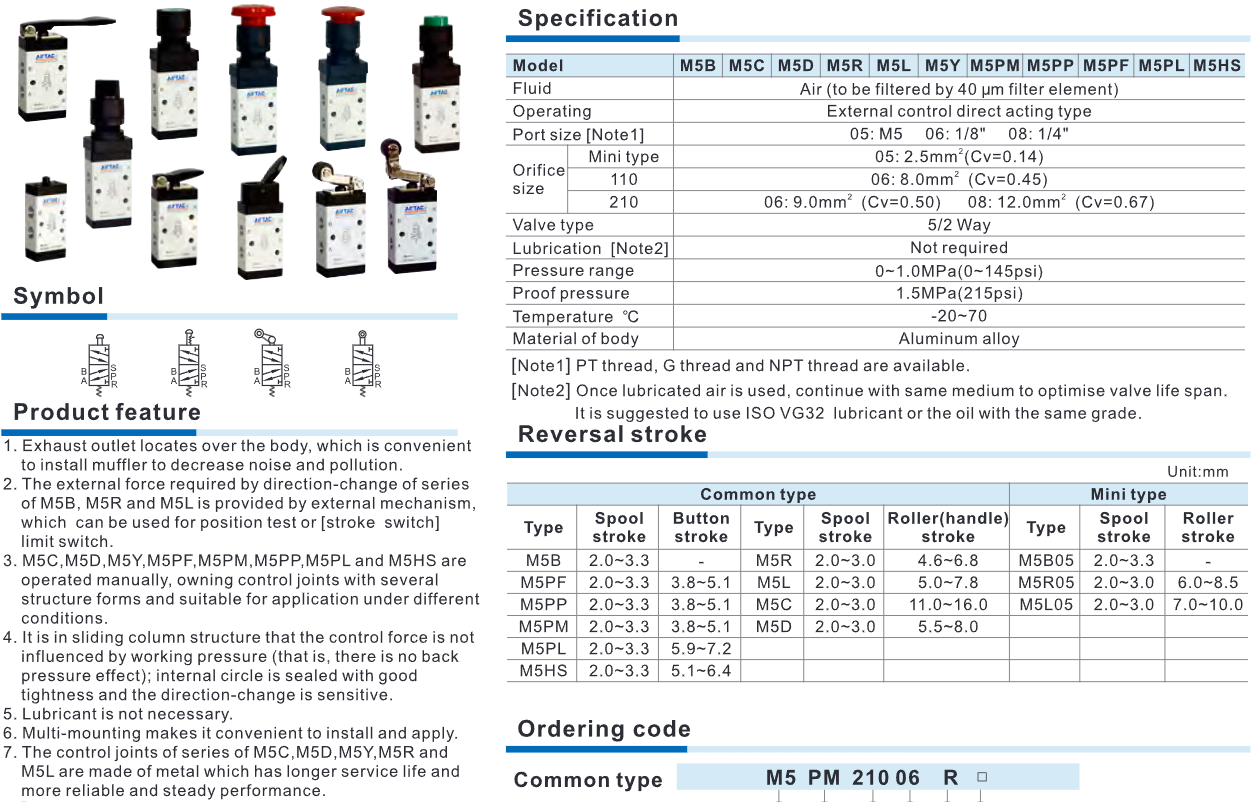

Specification M5:

Product Overview

The M5 Series pneumatic directional control valve is designed to control airflow direction in pneumatic automation systems, enabling precise actuation of cylinders and mechanical components. This 5/2 way valve supports external mechanical actuation and manual operation, making it suitable for various industrial environments.

Key Features & Design

1. Multiple actuator options: push button, lever, roller, and handle types
2. Integrated exhaust outlet allows easy muffler installation for noise reduction
3. Direct acting external control mechanism ensures accurate switching
4. Sliding column structure eliminates back pressure influence
5. Durable aluminum alloy body with strong corrosion resistance
6. Excellent sealing performance with sensitive switching response
7. Lubrication not required, reducing maintenance costs

Technical Specifications

1. Valve Type: 5/2 Way Directional Control Valve
2. Fluid: Filtered compressed air (40µm filtration)
3. Operation: External control direct acting
4. Port Sizes:
5. M5
6. 1/8”
7. 1/4”
8. Operating Pressure: 0 ~ 1.0 MPa (0 ~ 145 psi)
9. Proof Pressure: 1.5 MPa (215 psi)
10. Operating Temperature: -20°C to 70°C
11. Body Material: Aluminum alloy
12. Thread Types: PT / G / NPT available
13. Lubrication: Not required (ISO VG32 recommended if lubricated air is used)

Product Advantages

1. Long service life with reliable performance
2. Flexible installation across multiple applications
3. Optimized airflow reduces energy consumption
4. Easy maintenance and lower operating cost
5. Fast response suitable for automation systems

Applications

1. Industrial automation systems
2. Pneumatic cylinder control
3. Assembly and production lines
4. Packaging and mechanical machinery
5. Position testing and pneumatic limit switching systems
