Airtac ASC Series Pneumatic Flow Control Valve, Air Speed Controller Valve for Cylinder Motion Control and Industrial Automation

Specification:

1. Product Overview

1. The ASC Series is a pneumatic flow control valve designed to regulate airflow and control actuator speed in compressed air systems.
2. It combines throttling control with one-way exhaust flow to ensure smooth and stable cylinder motion.
3. The valve is widely used in automation systems requiring precise motion control and vibration reduction.

2. Features & Design

1. Compact square-body design enables easy installation in limited spaces.
2. High-sensitivity adjustment screw allows accurate airflow regulation.
3. Valve structure supports efficient exhaust airflow control and air cut-off.
4. Aluminum alloy body provides durability and corrosion resistance.
5. High-quality sealing minimizes air leakage during operation.
6. Flexible mounting positions for various machine configurations.
7. Optimized design reduces vibration and impact during actuator movement.

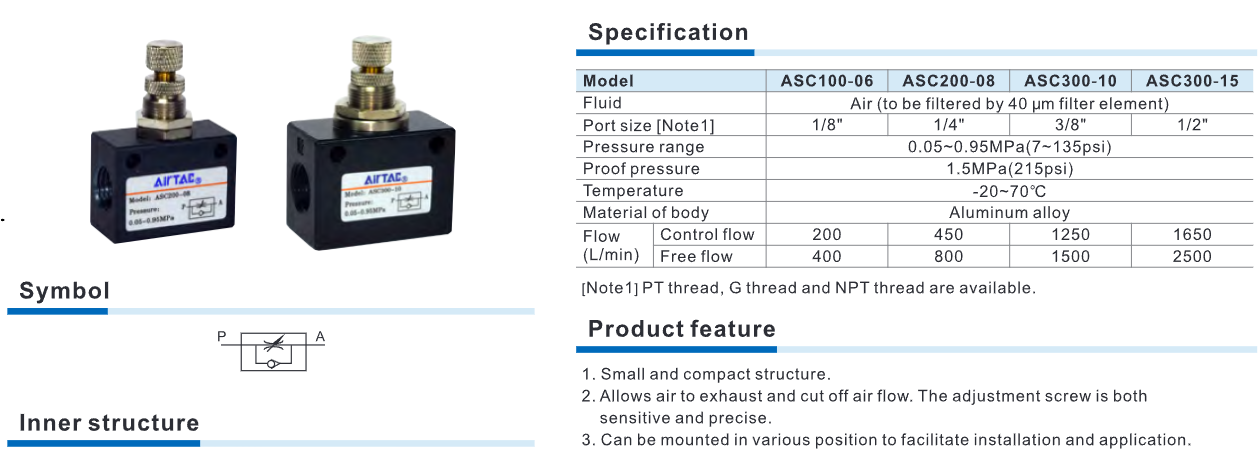

3. Technical Specifications

1. Fluid: Filtered compressed air (40µm filtration)
2. Operating pressure range: 0.05 ~ 0.95 MPa
3. Proof pressure: 1.5 MPa
4. Operating temperature: -20°C ~ 70°C
5. Port sizes: 1/8”, 1/4”, 3/8”, 1/2”
6. Body material: Aluminum alloy
7. Control flow rate: 200 ~ 1650 L/min (depending on model)
8. Free flow rate: up to 2500 L/min
9. Thread type: PT, G, or NPT

4. Advantages

1. Precise and stable cylinder speed adjustment.
2. Reduces vibration and extends mechanical lifespan.
3. Compact design saves installation space.
4. Sensitive and easy airflow adjustment.
5. Durable performance for continuous industrial use.
6. Improves energy efficiency by controlling air consumption.

5. Applications

1. Pneumatic cylinder speed control systems
2. Industrial automation machinery
3. Packaging and assembly equipment
4. Robotics and linear motion systems
5. Precision pneumatic motion control applications
