Airtac ZM3 Series Mechanical Pneumatic Valve 3/2 Way, Roller Lever Limit Air Valve for Industrial Automation Systems

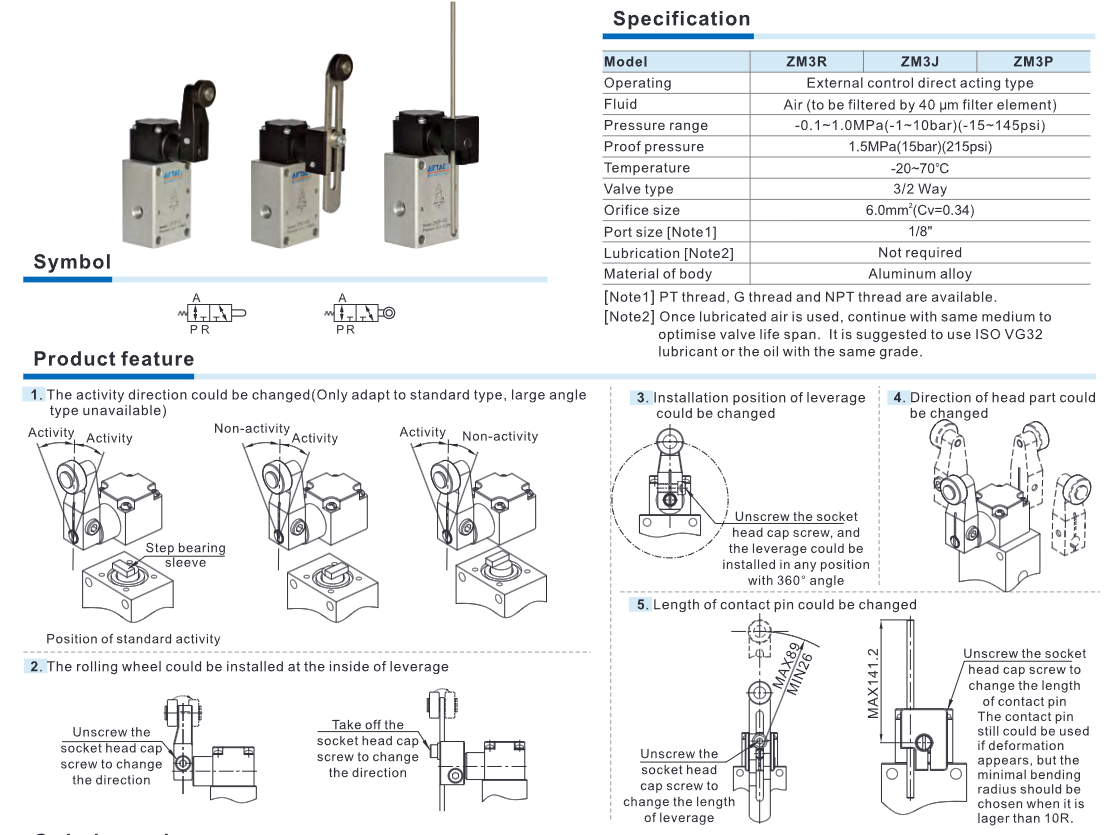

Specification:

Product Overview

The ZM3 Series is a 3/2 way mechanically actuated pneumatic valve designed for air signal switching and position control in automation systems. It operates through direct mechanical actuation without electrical power, ensuring reliable and stable performance.

Key Features

1. Direct acting mechanical control for fast response.
2. Multiple actuator types including roller lever, adjustable roller, and contact pin.
3. Adjustable operating direction and lever position.
4. Large operating angle improves activation sensitivity.
5. Adjustable contact pin length for flexible applications.
6. Compact aluminum alloy body suitable for limited installation spaces.

Main Specifications

1. Valve type: 3/2 way mechanical air valve
2. Medium: Filtered compressed air (40μm)
3. Operating pressure: -0.1 to 1.0 MPa
4. Proof pressure: 1.5 MPa
5. Temperature range: -20°C to 70°C
6. Port size: 1/8 inch
7. Thread type: PT / G / NPT
8. Body material: Aluminum alloy
9. Lubrication: Not required

Advantages

1. No electrical power required.
2. High durability and long service life.
3. Fast and accurate mechanical response.
4. Easy maintenance and low operating cost.
5. Flexible installation for automation systems.

Applications

1. Industrial automation equipment.
2. Packaging and conveyor machinery.
3. Pneumatic cylinder control systems.
4. Position detection and limit control.
5. Manufacturing and mechanical production lines.
