M3 Series 3/2 Way Pneumatic Control Valve, Mechanical Lever Push Button Roller Air Directional Valve, Aluminum Pneumatic Valve

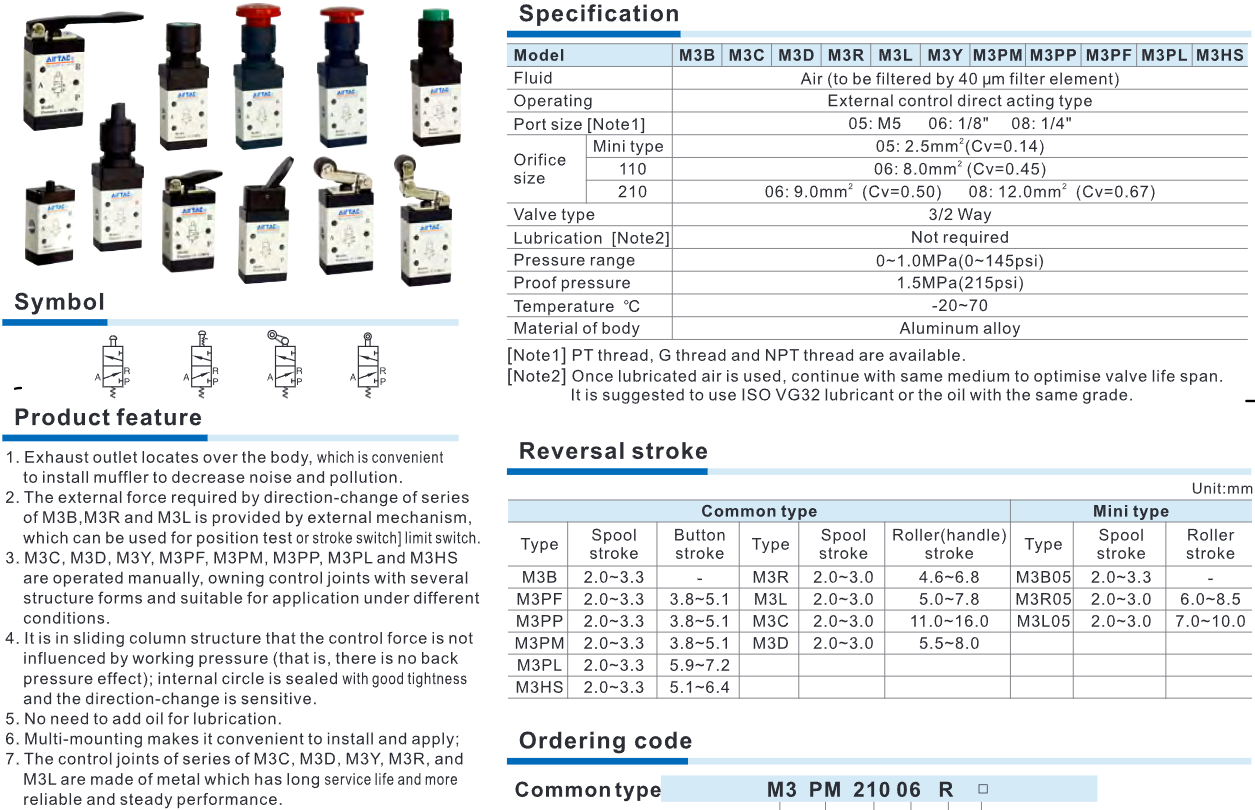

Specification M5:

Product Overview

The M3 Series 3/2 way pneumatic directional control valve is designed to control airflow in industrial pneumatic systems. It enables air switching and on/off control for single-acting cylinders and automation mechanisms. Built with durable mechanical components, it ensures stable and long-term operation in demanding environments.

Key Features

1. Multiple mechanical actuator options: lever, push button, roller, mushroom, selector
2. External direct acting mechanism for fast and accurate switching
3. Durable aluminum alloy body with strong corrosion resistance
4. High sealing performance to prevent leakage
5. Compact design for flexible installation
6. No lubrication required, reducing maintenance cost
7. Available thread types: PT, G, NPT

Technical Specifications

1. Valve Type: 3/2 Way Directional Control Valve
2. Fluid: Filtered compressed air (40µm filtration)
3. Operation: Mechanical direct acting
4. Port Sizes: M5, 1/8”, 1/4”
5. Orifice Sizes: 2.5 mm², 8.0 mm², 12.0 mm²
6. Operating Pressure: 0–1.0 MPa (0–145 psi)
7. Proof Pressure: 1.5 MPa (215 psi)
8. Operating Temperature: -20°C to 70°C
9. Body Material: Aluminum alloy

Advantages

1. Long service life with reliable performance
2. Fast mechanical response
3. Stable operation under varying pressure conditions
4. Easy installation and low maintenance cost

Applications

1. Single-acting pneumatic cylinder control
2. Packaging and automation machinery
3. Industrial production lines
4. Pneumatic processing equipment
