CM3 Series Mechanical Pneumatic Valve 3/2 & 5/3 Way, Airtac Manual Control Air Valve, Push Button Lever Roller Pneumatic Control Valve

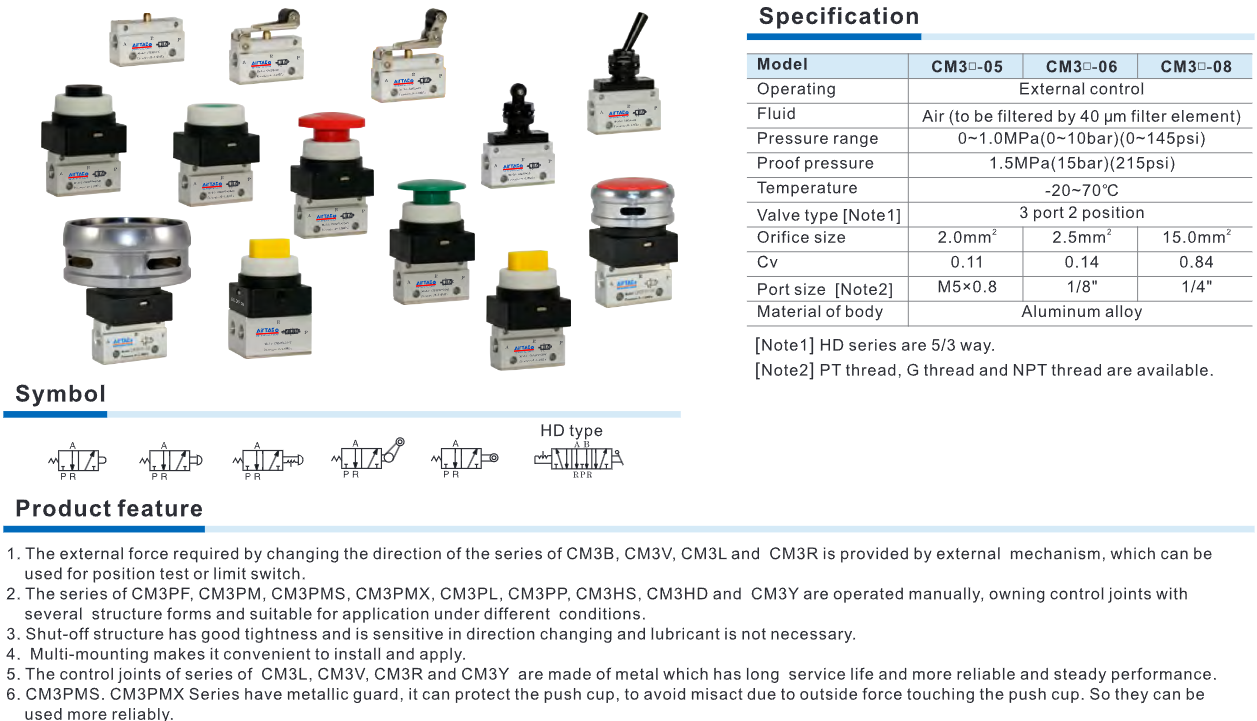

Specification CM3:

Product Overview

The CM3 Series is a manual mechanical pneumatic valve designed to control airflow direction in compressed air systems. The valve operates through direct mechanical actuation such as push buttons, levers, or rollers, enabling reliable air signal control without electrical power, making it ideal for industrial automation environments.

Features & Design

1. Direct mechanical actuation ensures fast and accurate airflow switching.
2. Multiple actuator options including push button, mushroom head, roller lever, selector, and lever types.
3. Compact structure allows installation in limited machine spaces.
4. Durable aluminum alloy body provides high strength and corrosion resistance.
5. Flexible mounting orientation suitable for various machine designs.
6. High sealing performance minimizes air leakage.
7. Lubrication-free operation reduces maintenance requirements.

Technical Specifications

1. Valve type: 3/2 way and 5/3 way mechanical pneumatic valve
2. Working medium: Filtered compressed air (40μm)
3. Operating pressure: 0 ~ 1.0 MPa
4. Proof pressure: 1.5 MPa
5. Operating temperature: -20°C to 70°C
6. Port sizes: M5, 1/8”, 1/4”
7. Thread type: PT / G / NPT
8. Body material: Aluminum alloy
9. Operation mode: Manual mechanical actuation
10. Lubrication: Not required

Advantages

1. No electrical power required for operation.
2. Durable construction suitable for industrial environments.
3. Fast response for accurate pneumatic signal control.
4. Easy installation and system integration.
5. Long service life with low maintenance cost.
6. Compatible with various automation equipment.

Applications

1. Manual pneumatic control systems.
2. Packaging, pressing, and industrial machinery.
3. Pneumatic cylinder signal and position control.
4. Safety and limit control mechanisms.
5. Manufacturing and automation production lines.
