Onpin OP-PS12-O1 Air Rivet Nut Tool - Hydraulic System, 2180kg Pull Force, M3-M12 Stainless Nut, 2.5kg
The Onpin OP-PS12-O1 air rivet nut tool utilizes a heavy-duty hydraulic power structure that generates up to 2180 kg (4800 lbs) of pulling force at a free speed of 1200 rpm. Featuring an adjustable stroke up to 7 mm, it seamlessly processes aluminum, iron, and stainless-steel rivet nuts across sizes M3 to M12. Designed with an overall length of 278 mm (10.94 inches), a 1/4 P.T air inlet operating at 90 psi (6.2 bar), and weighing 2.5 kg, it includes a built-in hanging ring for spring balancer integration. This tool offers reliable fastening performance for automotive repair, metalworking, furniture manufacturing, and general maintenance operations.
- OP-PS12-O1
- OP-PS12-01
- Ref 1A CYLINDER CAP
- Ref 2 RUBBER BOTTOM
- Ref 3A AIR CYLINDER BODY
- Ref 4A RUBBER CUSHION
- Ref 5 NUT
- Ref 7A AIR PISTON
- Ref 8 ORING
- Ref 10 ORING
- Ref 11A ORING
- Ref 12 SPRING
- Ref 13 TUBE
- Ref 14 ROD
- Ref 15 STEM NUT
- Ref 16 OIL SEAL
- Ref 18 ORING
- Ref 19 STEM
- Ref 20 MUFFLER
- Ref 21 PAD
- Ref 22 ORING
- Ref 23 CAGE
- Ref 24 SPRING
- Ref 25 VALVE
- Ref 26 VALVE CAP
- Ref 27 RETAINING RING
- Ref 29 HANDLE
- Ref 29-7 INLET ADAPTER
- Ref 30 TRIGGER UI
- Ref 31 VALVE PISTON
- Ref 32 ORING
- Ref 33 ORING
- Ref 34 TRIGGER INSERT
- Ref 35 TRIGGER INSERT
- Ref 36 TRIGGER HEAD
- Ref 37 TRIGGER
- Ref 38 PIN
- Ref 39 ORING
- Ref 40 ANVIL
- Ref 41 LOCK NUT
- Ref 42 TIE-ROD
- Ref 43 SPRING
- Ref 44 ANVIL CLUTCH
- Ref 44-1 NUT
- Ref 45 SPRING-PIN
- Ref 46 ADAPTER 11
- Ref 47 FRAME HEAD
- Ref 48 STOPPER
- Ref 49 SPRING
- Ref 51 WEAR-RING
- Ref 53 OIL SEAL
- Ref 54 SOCKET SCREW
- Ref 56 HOOK
- Ref 57 OIL CYLINDER
- Ref 57-2 SCALE TAG
- Ref 58 ADJUSTMENT NUT
- Ref 59 TORSION BAR
- Ref 60 OIL SEAL
- Ref 61 ORING
- Ref 62 WEAR-RING
- Ref 63 OIL PISTON
- Ref 64 AIR MOTOR ASSY
- Ref 64-1 RETAINING RING A15
- Ref 64-2 BEARING
- Ref 64-3 MOTOR DRIVER
- Ref 64-4 PLANET
- Ref 64-5 PIN
- Ref 64-6 MOTOR INNERGEAR
- Ref 64-7 BEARING
- Ref 64-8 MOTOR SPACER
- Ref 64-9 MOTOR HOUSING
- Ref 64-10 MOTOR ROTOR
- Ref 64-11 BLADE
- Ref 64-12 MOTOR BOTTOM
- Ref 64-13 PIN
- Ref 64-14 BEARING
- Ref 65 SPRING
- Ref 66 EXTENDER
- Ref 67 CPA BODY
- Ref 67-1 ORING
- Ref 68 NEEDLE
- Ref 69 ORING
- Ref 71 ORING DEPRESSOR
- Ref 72 SPRING
- Ref 73 SOCKET SET SCREW
- Ref 74 WEAR WASHER
- Ref 75 ORING
- Ref 76 HANDLE CAP
- Ref 77 SOCKET SCREW
- Ref 78 SOCKET SCREW
- Ref 79 DIE WRENCH
- Ref 80 SPANNER
- Ref 81 SPANNER
- Ref 82 OIL CAN
- Ref 83 EYE LEVER
- Onpin air hydraulic rivet nut tool
- heavy duty air pull setter OP-PS12-O1
- Onpin OP-PS12-01 spare parts
- M3 to M12 stainless steel nut riveter
- pneumatic hydraulic rivet nut gun
Design file download links:
PDF fileDescription

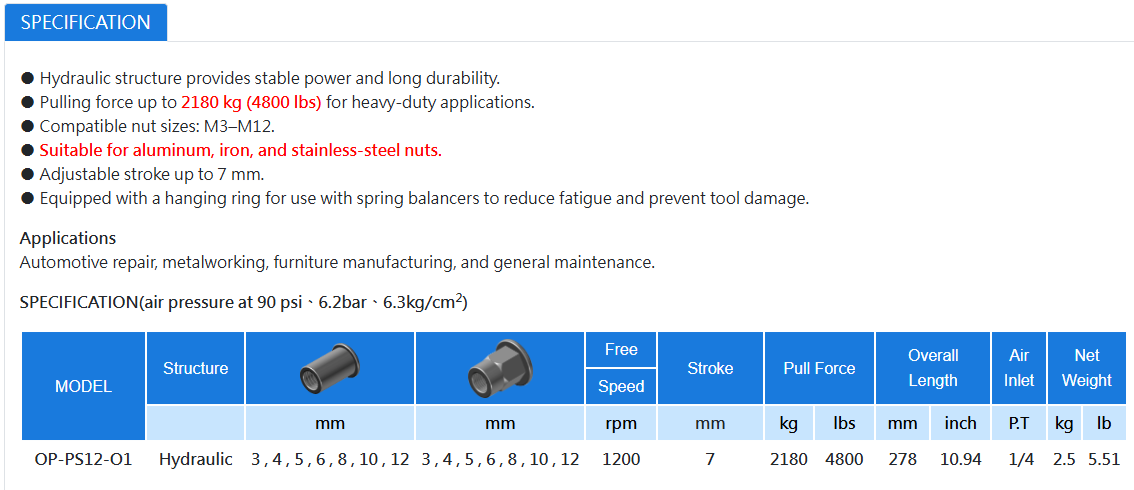

Specification OP-PS12-O1
The Onpin OP-PS12-O1 Air Rivet Nut Tool is a heavy-duty pneumatic-hydraulic fastening tool engineered for installing threaded rivet nuts in industrial production lines. Utilizing an advanced pneumatic-hydraulic system, it delivers a maximum axial pull force of 2180 kg (4800 lbs) to securely set rivet nuts into aluminum, iron, and stainless-steel workpieces.
Key Features of Onpin OP-PS12-O1
- Heavy-Duty Hydraulic Structure: Provides powerful, quiet, and smooth operation with long-lasting durability.
- High Pulling Force up to 2180 kg (4800 lbs): Built specifically for demanding heavy-duty fastening applications.
- Versatile Material Compatibility: Works seamlessly with aluminum, iron, and stainless-steel rivet nuts.
- Adjustable Stroke up to 7 mm: Allows precise pull-up stroke adjustments to match varying sheet metal thicknesses.
- Integrated Hanging Ring: Designed for easy attachment to spring balancers, reducing operator fatigue and preventing tool damage.
Technical Specifications of Onpin OP-PS12-O1
- Brand: Onpin
- Model: OP-PS12-O1
- Internal Structure: Hydraulic
- Supported Nut Sizes (Round - mm): 3, 4, 5, 6, 8, 10, 12 mm
- Supported Nut Sizes (Hex - mm): 3, 4, 5, 6, 8, 10, 12 mm
- Free Speed: 1200 rpm
- Stroke: 7 mm
- Pull Force: 2180 kg (4800 lbs)
- Overall Length: 278 mm (10.94 inches)
- Air Inlet: 1/4 P.T
- Net Weight: 2.5 kg (5.51 lb)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-PS12-O1
- Automotive Repair: Fastening heavy-duty threaded inserts into vehicle body panels, frames, and chassis assemblies.
- Metalworking: Setting rivet nuts into sheet metal enclosures, iron plates, and stainless-steel structures.
- Furniture Manufacturing: Securing rigid threaded joints on metal furniture frameworks and cabinets.
- General Maintenance: Ideal for factory machinery servicing, equipment overhauls, and field installation tasks.
