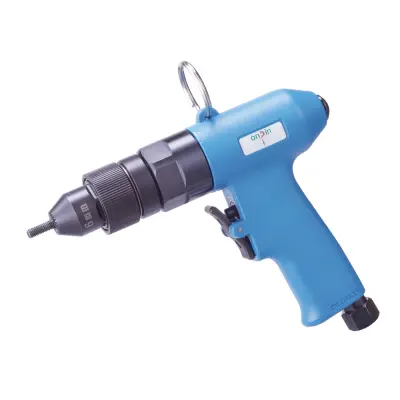

Onpin OP-PS6107 Air Rivet Nut Tool - Quick-Release Head, Gear Structure, 700rpm, 90psi/6.2bar, 1.26kg
Onpin OP-PS6107 Air Rivet Nut Tool - Quick-Release Head, Gear Structure, 700rpm, 90psi/6.2bar, 1.26kg
Onpin OP-PS6107 Air Rivet Nut Tool - Quick-Release Head, Gear Structure, 700rpm, 90psi/6.2bar, 1.26kg
Onpin OP-PS6107 Air Rivet Nut Tool - Quick-Release Head, Gear Structure, 700rpm, 90psi/6.2bar, 1.26kg
Onpin OP-PS6107 Air Rivet Nut Tool - Quick-Release Head, Gear Structure, 700rpm, 90psi/6.2bar, 1.26kg

Onpin OP-PS6107 Air Rivet Nut Tool - Quick-Release Head, Gear Structure, 700rpm, 90psi/6.2bar, 1.26kg

Price:Contact Jade M-Tech
Category: Air Riveter
SKU: OP-PS6107

The Onpin OP-PS6107 air rivet nut tool utilizes a precision gear structure designed for reliable and durable operation at a free speed of 700 rpm under 90 psi (6.2 bar) air pressure. It features a quick-release nut head for fast replacement, a rocker-type forward/reverse switch, and a bottom exhaust design to minimize noise and air interference. Built for iron, aluminum, and copper applications (not suitable for stainless steel), it supports metric nut sizes 3, 4, 5, 6 mm and imperial sizes 3/16", 1/4". With a overall length of 200 mm (7.87 inches), an air consumption rate of 198 l/min (7 cfm), and a net weight of 1.26 kg, this tool is ideal for automotive repair, sheet metalworking, furniture manufacturing, and general plant maintenance.

OP-PS6107 Series Models & Sizes:
  • OP-PS6107
  • Ref 01-104-01 ROTOR BLADE
  • Ref 02-201-08 O-RING (P8x1.5)
  • Ref 02-203-04 O-RING (AS-568-025)
  • Ref 03-300-02 PLASTIC BALL(9)
  • Ref 03-700-04 STEEL BALL (4mm)
  • Ref 04-700-03 PIN (2x6)
  • Ref 04-701-04 PIN (2x14)
  • Ref 04-701-05 PIN (4x15)
  • Ref 04-702-04 PIN (3x24)
  • Ref 06-701-06 SPRING
  • Ref 09-802-04 STOPPING WHEEL
  • Ref 12-703-01 RETAINING RING
  • Ref 13-703-01 SCREW
  • Ref 15-701-07 BALL BEARING (626-2Z)
  • Ref 15-702-04 BALL BEARING (R6)
  • Ref 15-703-01 BALL BEARING (6201-2Z)
  • Ref 16-701-02 GEAR
  • Ref 16-701-09 GEAR
  • Ref 17-704-01 SWITCH LEVER
  • Ref 20-702-01 ROD
  • Ref 25-702-12 AIR INLET (PT)
  • Ref 26-501-02 MUFFLER
  • Ref 31-703-01 HOOK
  • Ref 35-706-02 ROTOR
  • Ref 36-503-15 FRONT PLATE
  • Ref 37-503-02 REAR PLATE
  • Ref 38-503-01 CYLINDER
  • Ref 48-703-01 GEAR RING
  • Ref 49-502-02 GEAR SEAT
  • Ref 51-402-09 BUSHING
  • Ref 51-703-18 BUSHING
  • Ref 51-703-19 BUSHING
  • Ref 75-706-07 FRONT CAP
  • Ref 79-608-09 HANDLE
  • Ref PHS-I03-04 PULL SET 3/16"
  • Ref PHS-I04-04 PULL SET 1/4"
  • Ref PHS-M03-04 PULL SET M3
  • Ref PHS-M04-04 PULL SET M4
  • Ref PHS-M05-04 PULL SET M5
  • Ref PHS-M06-04 PULL SET M6
  • Onpin pneumatic rivet nut gun
  • air pull setter OP-PS6107
  • Onpin OP-PS6107 spare parts
  • M3 to M6 air nut riveter
  • quick release pneumatic nut setter
Show more

Design file download links:

PDF file
** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).

Description

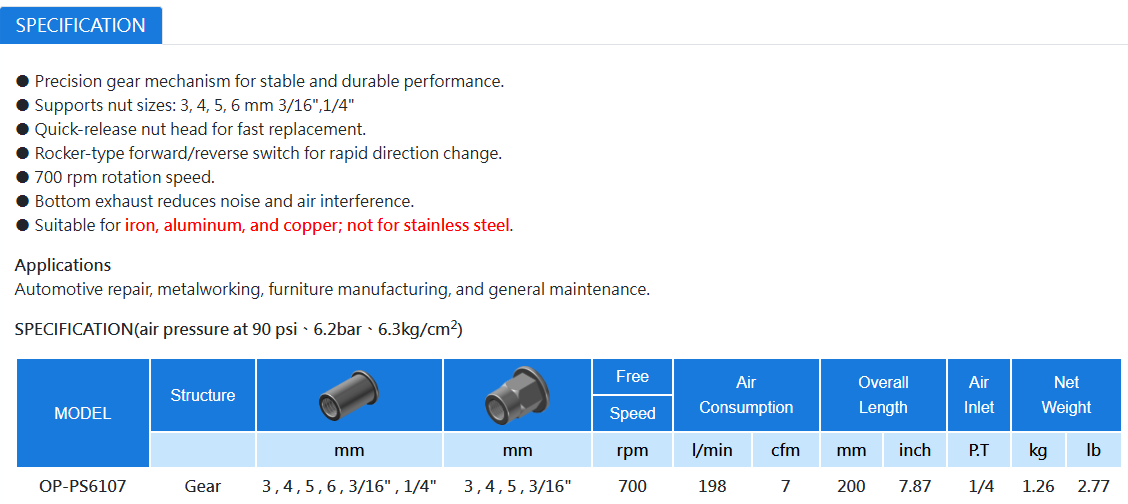

Specification OP-PS6107

The Onpin OP-PS6107 Air Rivet Nut Tool is a high-efficiency pneumatic fastening tool engineered for setting threaded rivet nuts in industrial production lines. Utilizing a precision gear mechanism, it converts compressed air power into rotational torque to securely install rivet nuts on iron, aluminum, and copper materials.

Key Features of Onpin OP-PS6107

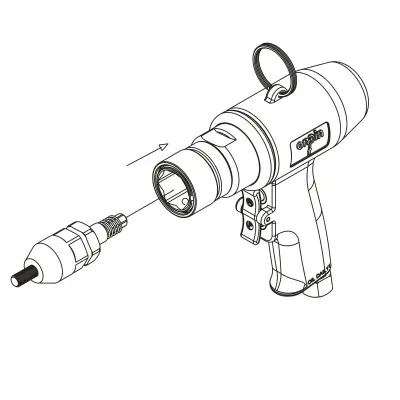

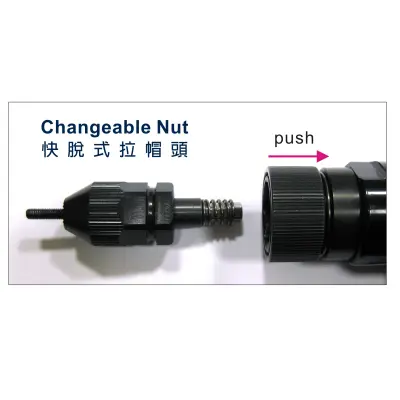

  1. Quick-Release Nut Head: Designed for rapid mandrel and nut head replacements during operation.
  2. Precision Gear Mechanism: Ensures highly stable, smooth, and long-lasting mechanical performance.
  3. Rocker-Type Forward/Reverse Switch: Enables instant directional changes for fast nut insertion and disengagement.
  4. Bottom Exhaust System: Significantly reduces operating noise levels and directs air discharge away from the work area.
  5. Material Compatibility: Optimized for iron, aluminum, and copper workpieces (not suitable for stainless steel).

Technical Specifications of Onpin OP-PS6107

  1. Brand: Onpin
  2. Model: OP-PS6107
  3. Internal Structure: Gear
  4. Supported Nut Sizes (Round - mm/inch): 3, 4, 5, 6 mm, 3/16", 1/4"
  5. Supported Nut Sizes (Hex - mm/inch): 3, 4, 5, 3/16"
  6. Free Speed: 700 rpm
  7. Air Consumption: 198 l/min (7 cfm)
  8. Overall Length: 200 mm (7.87 inches)
  9. Air Inlet: 1/4 P.T
  10. Net Weight: 1.26 kg (2.77 lb)
  11. Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)

Industrial Applications of Onpin OP-PS6107

  1. Automotive Repair: Installing threaded inserts into auto body parts, chassis frames, and brackets.
  2. Metalworking: Setting rivet nuts into sheet metal panels, iron enclosures, and copper component assemblies.
  3. Furniture Manufacturing: Fastening joint connections on metal furniture frames, cabinets, and structures.
  4. General Maintenance: Suitable for plant machinery repairs, equipment servicing, and field maintenance.

Related Product

Onpin OP-PSLH16 90 Degree Air Pull-Setter - M3-M6 Rivet Nut Capability, 1600rpm, 90psi/6.2bar, 1.19kg
OP-PSLH16

Onpin OP-PSLH16 90 Degree Air Pull-Setter - M3-M6 Rivet Nut Capability, 1600rpm, 90psi/6.2bar, 1.19kg

Onpin OP-PSLH16 90 Degree Air Pull-Setter - M3-M6 Rivet Nut Capability, 1600rpm, 90psi/6.2bar, 1.19kg
OP-PSLH16

Onpin OP-PSLH16 90 Degree Air Pull-Setter - M3-M6 Rivet Nut Capability, 1600rpm, 90psi/6.2bar, 1.19kg

Onpin OP-PS6-G1 Air Rivet Nut Tool - M3-M6 & 3/16"-1/4" Capacity, Precision Gear, 700rpm, 90psi/6.2bar, 1.2kg
OP-PS6-G1

Onpin OP-PS6-G1 Air Rivet Nut Tool - M3-M6 & 3/16"-1/4" Capacity, Precision Gear, 700rpm, 90psi/6.2bar, 1.2kg

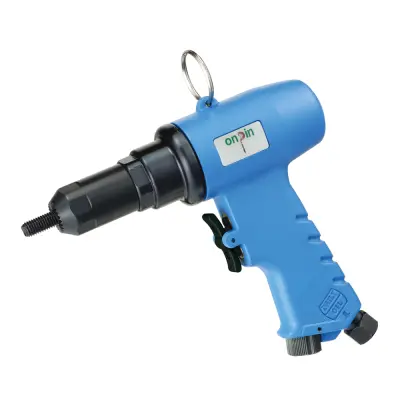

Onpin OP-PS10-G51 Air Rivet Nut Tool - 4-Speed Control, Gear Driven, 450rpm, 90psi/6.2bar, 1.8kg
