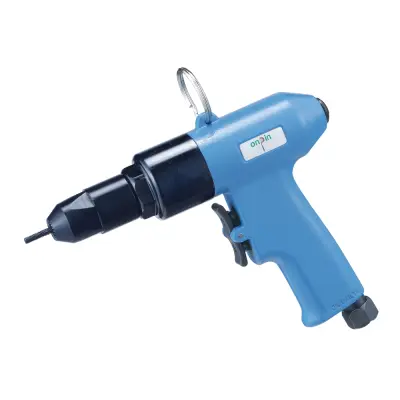

Onpin OP-PS6-G1 Air Rivet Nut Tool - M3-M6 & 3/16"-1/4" Capacity, Precision Gear, 700rpm, 90psi/6.2bar, 1.2kg

Price:Contact Jade M-Tech

Category: Air Riveter

SKU: OP-PS6-G1

The Onpin OP-PS6-G1 air rivet nut tool features a precision gear structure designed for stable and durable industrial fastening performance. Operating at a free speed of 700 rpm, it accommodates metric nut sizes (3, 4, 5, 6 mm) and inch sizes (3/16", 1/4"), as well as hex rivet nuts (3, 4, 5, 3/16"). Suitable for iron, aluminum, and copper materials (not for stainless steel), it includes a rocker-type forward/reverse switch for rapid direction changes and a bottom exhaust design to minimize noise and air interference. Weighing 1.2 kg (2.65 lb) with an overall length of 200 mm (7.87 inches) and consuming 198 l/min (7 cfm) at 90 psi (6.2 bar), it is an ideal solution for automotive repair, metalworking, furniture manufacturing, and general maintenance operations.

OP-PS6-G1 Series Models & Sizes:

OP-PS6-G1
Ref 01-102-03 ROTOR BLADE
Ref 02-200-07 O-RING (P8x1.5)
Ref 02-202-03 O-RING (AS-568-025)
Ref 03-300-02 PLASTIC BALL(9)
Ref 03-700-04 STEEL BALL(4mm)
Ref 04-700-03 PIN(2x6)
Ref 04-701-04 PIN(2x14)
Ref 04-701-05 PIN(4x15)
Ref 04-702-04 PIN(4x24)
Ref 09-702-04 STOPPING WHEEL
Ref 13-702-01 SCREW
Ref 13-703-01 SCREW
Ref 13-703-02 SCREW
Ref 13-704-01 SCREW
Ref 13-704-02 SCREW
Ref 13-704-05 SCREW
Ref 13-704-08 SCREW
Ref 13-704-09 SCREW
Ref 15-701-07 BALL BEARING (626-2Z)
Ref 15-701-08 BALL BEARING
Ref 15-701-09 BALL BEARING
Ref 15-702-04 BALL BEARING (R6)
Ref 15-703-01 BALL BEARING (6201-2Z)
Ref 16-701-02 GEAR
Ref 16-701-08 GEAR
Ref 17-704-01 SWITCH LEVER
Ref 20-702-01 ROD
Ref 25-702-12 AIR INLET (PT)
Ref 26-501-02 MUFFLER
Ref 31-703-01 HOOK
Ref 35-706-02 ROTOR
Ref 36-503-15 FRONT PLATE
Ref 37-503-02 REAR PLATE
Ref 38-503-01 CYLINDER
Ref 48-703-01 GEAR RING
Ref 49-502-02 GEAR SEAT
Ref 51-402-00 BUSHING
Ref 52-701-08 CONNECTOR
Ref 52-701-09 CONNECTOR
Ref 52-701-10 CONNECTOR
Ref 52-701-11 CONNECTOR
Ref 52-701-20 CONNECTOR
Ref 66-706-02 NOSE
Ref 66-706-03 NOSE
Ref 66-706-04 NOSE
Ref 66-706-05 NOSE
Ref 71-705-01 SCREW
Ref 71-705-02 SCREW
Ref 71-705-03 SCREW
Ref 71-705-04 SCREW
Ref 71-705-17 SCREW
Ref 71-705-18 SCREW
Ref 75-706-04 FRONT CAP
Ref 79-608-09 HANDLE
Ref PHS-102.5-02 PULL SET 5/32"
Ref PHS-103-02 PULL SET 3/16"
Ref PHS-104-02 PULL SET 1/4"
Ref PHS-105-02 PULL SET M5
Ref PHS-106-02 PULL SET M6
Ref PHS-M03-02 PULL SET M3
Ref PHS-M04-02 PULL SET M4
Onpin air riveting nut tool
pneumatic rivet nut gun OP-PS6-G1
Onpin OP-PS6-G1 replacement parts
M3 to M6 air nut setter
gear driven pneumatic riveter

Design file download links:

PDF file

** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).

Description

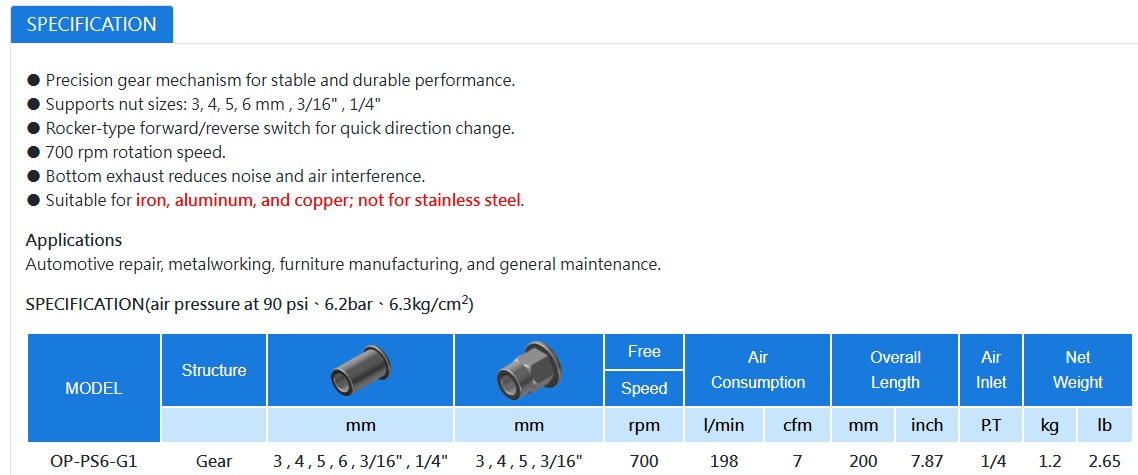

Specification OP-PS6-G1

The Onpin OP-PS6-G1 Air Rivet Nut Tool is a professional pneumatic fastening device engineered to set rivet nuts under a standard operating pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Powered by an internal gear structure, it converts air pressure into rotational force to efficiently install threaded inserts into iron, aluminum, and copper materials.

Key Features of Onpin OP-PS6-G1

Precision Gear Mechanism: Ensures stable, durable performance and consistent setting force over extended use.
Rocker-Type Forward/Reverse Switch: Enables rapid direction changes for seamless insertion and mandrel disengagement.
Bottom Exhaust Design: Reduces operational noise and prevents air interference at the immediate workspace.
Broad Material Compatibility: Optimized for iron, aluminum, and copper applications (Note: Not suitable for stainless steel).
Versatile Thread Capacity: Accommodates metric nut sizes (3, 4, 5, 6 mm), imperial nut sizes (3/16", 1/4"), and hex nut sizes (3, 4, 5, 3/16").

Technical Specifications of Onpin OP-PS6-G1

Brand: Onpin
Model Number: OP-PS6-G1
Internal Structure: Gear
Standard Nut Sizes (Metric): 3, 4, 5, 6 mm
Standard Nut Sizes (Imperial): 3/16", 1/4"
Hex Nut Sizes: 3, 4, 5, 3/16"
Free Speed: 700 rpm
Air Consumption: 198 l/min (7 cfm)
Overall Length: 200 mm (7.87 inches)
Air Inlet Thread: 1/4 P.T
Net Weight: 1.2 kg (2.65 lb)
Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)

Industrial Applications of Onpin OP-PS6-G1

Automotive Repair: Installing threaded inserts onto body panels, chassis components, and frame assemblies.
Metalworking: Setting rivet nuts on iron, aluminum, and copper sheet metal enclosures and control panels.
Furniture Manufacturing: Assembling metal frames, cabinetry, and structural hardware.
General Maintenance: Servicing machinery, industrial equipment, and production lines.
