Onpin OP-PS10-G51 Air Rivet Nut Tool - 4-Speed Control, Gear Driven, 450rpm, 90psi/6.2bar, 1.8kg
The Onpin OP-PS10-G51 air rivet nut tool features a precision gear mechanism designed for durable and consistent performance at a free speed of 450 rpm under standard 90 psi (6.2 bar) operating pressure. It is equipped with a built-in 4-speed air regulator knob, a rocker-type forward/reverse switch, and a side exhaust system to minimize noise and air interference. Designed to work with iron, aluminum, and copper materials (not suitable for stainless steel), it supports standard nut sizes including 5, 6, 8, 10 mm and 1/4", 5/16", 3/8". Featuring an overall length of 210 mm (8.27 inches), an air consumption of 226 l/min (8 cfm), and a net weight of 1.8 kg, this tool is ideal for automotive repair, metalworking, furniture manufacturing, and general industrial maintenance.
- OP-PS10-G51
- Ref 01-104-01 ROTOR BLADE
- Ref 02-201-05 O-RING (P11.2)
- Ref 02-203-03 O-RING (AS-568-029)
- Ref 03-300-02 PLASTIC BALL(9)
- Ref 03-700-04 STEEL BALL (4mm)
- Ref 04-700-03 PIN (2x6)
- Ref 04-701-05 PIN (4x15)
- Ref 04-702-04 PIN (3x24)
- Ref 05-702-04 PIN (3x26)
- Ref 06-701-09 SPRING
- Ref 06-701-21 SPRING
- Ref 06-701-22 SPRING
- Ref 11-703-01 WASHER
- Ref 13-401-01 SCREW
- Ref 13-704-01 SCREW
- Ref 13-704-02 SCREW
- Ref 13-704-03 SCREW
- Ref 13-704-06 SCREW
- Ref 13-705-01 SCREW
- Ref 14-701-01 OIL SEAL
- Ref 15-701-00 BALL BEARING
- Ref 15-701-08 BALL BEARING
- Ref 15-702-04 BALL BEARING (R6)
- Ref 15-702-08 BALL BEARING
- Ref 15-703-01 BALL BEARING (6201-2Z)
- Ref 16-701-02 GEAR
- Ref 16-701-08 GEAR
- Ref 17-704-01 SWITCH LEVER
- Ref 20-702-01 ROD
- Ref 25-702-12 AIR INLET (PT)
- Ref 31-703-01 HOOK
- Ref 35-707-07 ROTOR
- Ref 36-503-13 FRONT PLATE
- Ref 37-503-05 REAR PLATE
- Ref 38-504-04 CYLINDER
- Ref 45-704-01 SPEED SWITCH
- Ref 48-703-01 GEAR RING
- Ref 49-502-02 GEAR SEAT
- Ref 51-402-09 BUSHING
- Ref 52-702-28 CONNECTOR
- Ref 52-702-29 CONNECTOR
- Ref 52-702-30 CONNECTOR
- Ref 52-702-32 CONNECTOR
- Ref 52-702-33 CONNECTOR
- Ref 66-705-02 NOSE
- Ref 66-705-03 NOSE
- Ref 66-706-04 NOSE
- Ref 66-706-05 NOSE
- Ref 71-705-08 SCREW
- Ref 71-705-09 SCREW
- Ref 71-705-10 SCREW
- Ref 71-705-12 SCREW
- Ref 71-705-13 SCREW
- Ref 71-705-14 SCREW
- Ref 71-705-16 SCREW
- Ref 75-706-06 FRONT CAP
- Ref 79-609-04 HANDLE
- Ref PHS-104-01 PULL SET 1/4"
- Ref PHS-105-01 PULL SET 5/16"
- Ref PHS-106-01 PULL SET 3/8"
- Ref PHS-M05-03 PULL SET M5
- Ref PHS-M06-03 PULL SET M6
- Ref PHS-M08-03 PULL SET M8
- Ref PHS-M10-03 PULL SET M10
- Ref PRS-105-01 PULL SET
- Ref PRS-M06-03 PULL SET
- Onpin pneumatic rivet nut gun
- air pull setter OP-PS10-G51
- Onpin OP-PS10-G51 spare parts
- M5 to M10 air nut riveter
- gear driven pneumatic nut setter
Design file download links:
PDF fileDescription

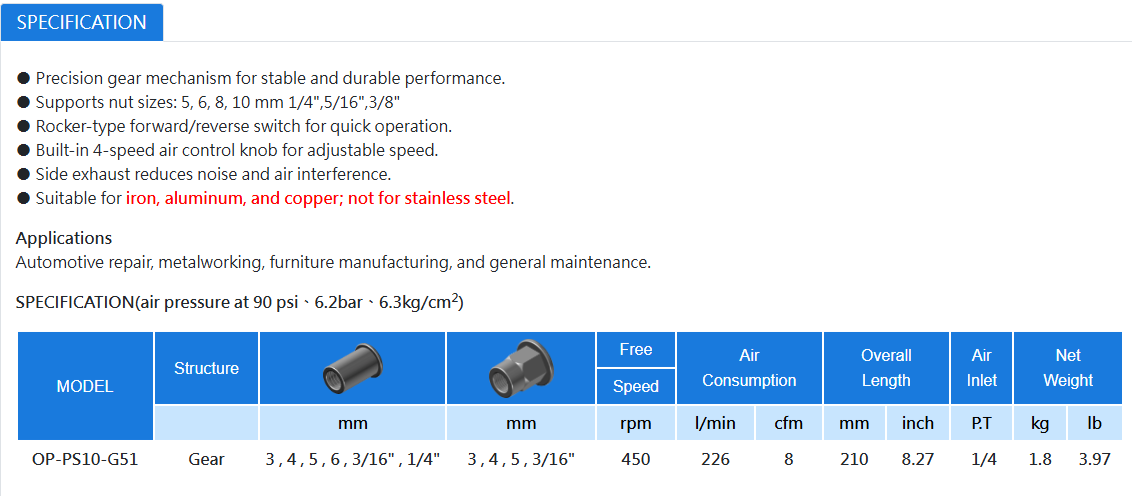

Specification OP-PS10-G51
The Onpin OP-PS10-G51 Air Rivet Nut Tool is a heavy-duty pneumatic fastening device designed for installing threaded rivet nuts in industrial production. Powered by an internal gear structure, it converts compressed air into torque to securely set rivet nuts into iron, aluminum, and copper materials.
Key Features of Onpin OP-PS10-G51
- Precision Gear Mechanism: Delivers stable, durable, and consistent rotational performance.
- Rocker-Type Forward/Reverse Switch: Allows fast and effortless direction changes during operation.
- Built-In 4-Speed Air Control Knob: Enables precise rotation speed adjustment for different nut sizes.
- Side Exhaust Design: Minimizes operating noise and prevents direct air interference at the workpiece.
- Material Compatibility: Optimized for iron, aluminum, and copper (note: not suitable for stainless steel).
Technical Specifications of Onpin OP-PS10-G51
- Brand: Onpin
- Model: OP-PS10-G51
- Internal Structure: Gear
- Supported Nut Sizes (Round - mm/inch): 3, 4, 5, 6 mm, 3/16", 1/4" (Extended capacity supports 5, 6, 8, 10 mm and 1/4", 5/16", 3/8")
- Supported Nut Sizes (Hex - mm/inch): 3, 4, 5, 3/16"
- Free Speed: 450 rpm
- Air Consumption: 226 l/min (8 cfm)
- Overall Length: 210 mm (8.27 inches)
- Air Inlet: 1/4 P.T
- Net Weight: 1.8 kg (3.97 lb)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-PS10-G51
- Automotive Repair: Fastening threaded inserts into vehicle panels, bodywork, and chassis components.
- Metalworking: Setting rivet nuts into iron, aluminum, and copper enclosures and sheet metal assemblies.
- Furniture Manufacturing: Assembling metal structure frames, desks, cabinets, and hardware.
- General Maintenance: Servicing mechanical setups, plant machinery, and production lines.
