/ Onpin OP-PS6107 Air Rivet Nut Tool - Quick-Release Head, Gear Structure, 3200rpm, 90psi/6.2bar, 1.48kg
Onpin OP-PS6107 Air Rivet Nut Tool - Quick-Release Head, Gear Structure, 3200rpm, 90psi/6.2bar, 1.48kg
The Onpin OP-PS6107 air rivet nut tool utilizes a precision gear structure designed for reliable and durable operation at a high free speed of 3,200 rpm under 90 psi (6.2 bar) air pressure. It features a quick-release nut head for fast replacement, a rocker-type forward/reverse switch, and a bottom exhaust design to minimize noise and air interference. Built for iron, aluminum, and copper applications (not suitable for stainless steel), it supports metric nut sizes 3, 4, 5 mm and imperial size 3/16". With an overall length of 205 mm (8.07 inches), an air consumption rate of 240 l/min (8.5 cfm), and a net weight of 1.48 kg, this tool is ideal for automotive repair, sheet metalworking, furniture manufacturing, and general plant maintenance.
- OP-PS6107
- OP-PS5232
- Ref 01-104-01 ROTOR BLADE
- Ref 02-201-05 O-RING (P11.2)
- Ref 02-203-03 O-RING (AS-568-029)
- Ref 03-300-02 PLASTIC BALL (9)
- Ref 03-700-04 STEEL BALL (4mm)
- Ref 04-700-03 PIN (2x6)
- Ref 04-701-06 PIN (4x16)
- Ref 04-702-04 PIN (3x24)
- Ref 06-701-22 SPRING
- Ref 06-703-06 SPRING
- Ref 09-702-04 STOPPING WHEEL
- Ref 12-703-01 RETAINING RING
- Ref 13-101-01 SCREW
- Ref 13-703-01 SCREW
- Ref 13-703-02 SCREW
- Ref 13-704-01 SCREW
- Ref 13-704-09 SCREW
- Ref 14-701-01 OIL SEAL
- Ref 15-702-04 BALL BEARING (R6)
- Ref 15-702-18 BALL BEARING
- Ref 15-703-01 BALL BEARING (6201-2Z)
- Ref 16-700-09 GEAR
- Ref 16-701-16 GEAR
- Ref 16-702-03 GEAR
- Ref 17-704-01 SWITCH LEVER
- Ref 20-702-01 ROD
- Ref 25-702-12 AIR INLET (PT)
- Ref 26-501-02 MUFFLER
- Ref 31-703-01 HOOK
- Ref 35-707-12 ROTOR
- Ref 36-503-13 FRONT PLATE
- Ref 37-503-05 REAR PLATE
- Ref 38-504-04 CYLINDER
- Ref 48-703-14 GEAR RING
- Ref 49-702-11 GEAR SEAT
- Ref 51-402-09 BUSHING
- Ref 51-703-18 BUSHING
- Ref 51-703-19 BUSHING
- Ref 52-703-03 WASHER
- Ref 52-702-40 WASHER
- Ref 52-702-41 WASHER
- Ref 52-702-42 WASHER
- Ref 66-706-02 SPRING
- Ref 66-706-03 SPRING
- Ref 66-706-04 SPRING
- Ref 71-704-01 PULL ROD
- Ref 71-704-02 PULL ROD
- Ref 71-704-03 PULL ROD
- Ref 71-704-06 PULL ROD
- Ref 75-605-08 FRONT CAP
- Ref 79-609-07 HANDLE
- Ref PHS-103-04 PULL SET 3/16"
- Ref PHS-M03-04 PULL SET M3
- Ref PHS-M04-04 PULL SET M4
- Ref PHS-M05-04 PULL SET M5
- Onpin pneumatic rivet nut gun
- air pull setter OP-PS6107
- Onpin OP-PS5232 spare parts
- high speed air nut riveter 3200rpm
- quick release pneumatic nut setter
Design file download links:
PDF fileDescription
Specification OP-PS5232
The Onpin OP-PS6107 Air Rivet Nut Tool is a high-efficiency pneumatic fastening tool engineered for setting threaded rivet nuts in industrial production lines. Utilizing a precision gear mechanism, it converts compressed air power into high-speed rotational torque to securely install rivet nuts on iron, aluminum, and copper materials.
Key Features of Onpin OP-PS6107
- Quick-Release Nut Head: Designed for rapid mandrel and nut head replacements during operation.
- Precision Gear Mechanism: Ensures highly stable, smooth, and long-lasting mechanical performance.
- Rocker-Type Forward/Reverse Switch: Enables instant directional changes for fast nut insertion and disengagement.
- Bottom Exhaust System: Significantly reduces operating noise levels and directs air discharge away from the work area.
- Material Compatibility: Optimized for iron, aluminum, and copper workpieces (not suitable for stainless steel).

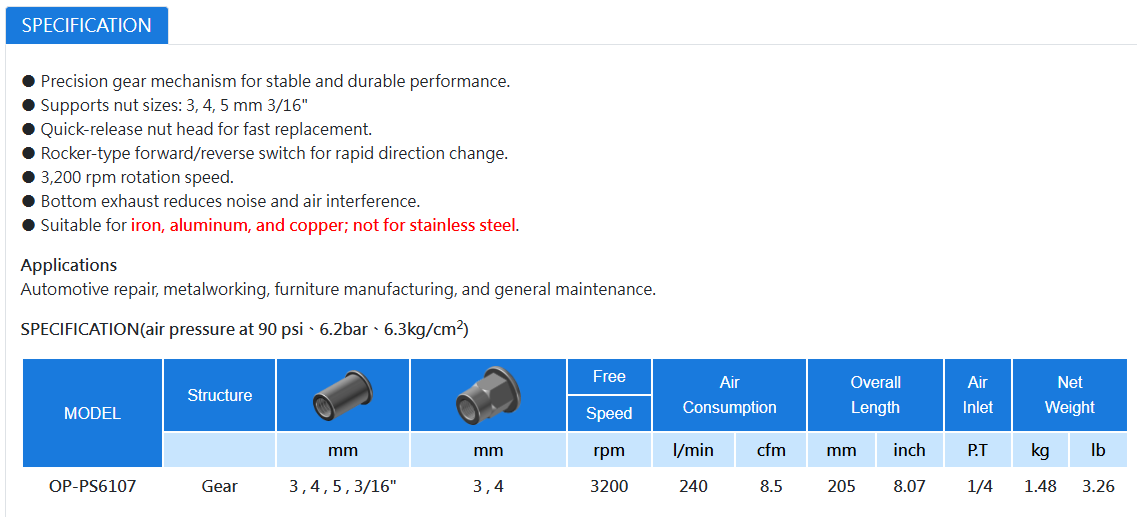

Technical Specifications of Onpin OP-PS6107
- Brand: Onpin
- Model: OP-PS6107
- Internal Structure: Gear
- Supported Nut Sizes (Round - mm/inch): 3, 4, 5 mm, 3/16"
- Supported Nut Sizes (Hex - mm): 3, 4 mm
- Free Speed: 3,200 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 205 mm (8.07 inches)
- Air Inlet: 1/4 P.T
- Net Weight: 1.48 kg (3.26 lb)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-PS6107
- Automotive Repair: Installing threaded inserts into auto body parts, chassis frames, and brackets.
- Metalworking: Setting rivet nuts into sheet metal panels, iron enclosures, and copper component assemblies.
- Furniture Manufacturing: Fastening joint connections on metal furniture frames, cabinets, and structures.
- General Maintenance: Suitable for plant machinery repairs, equipment servicing, and field maintenance.
