/ Onpin OP-PS12-O2 Air Rivet Nut Tool - Hydraulic, M3-M12, 2075kg Pull Force
Onpin OP-PS12-O2 Air Rivet Nut Tool - Hydraulic, M3-M12, 2075kg Pull Force
The Onpin OP-PS12-O2 air rivet nut tool features a heavy-duty hydraulic structure delivering up to 2075 kg (4565 lbs) of pulling force for demanding industrial applications. Operating at a free speed of 2700 rpm with an adjustable stroke up to 6 mm, it smoothly processes M3 to M12 rivet nuts made of aluminum, iron, and stainless steel. Engineered with an overall length of 280 mm (11.02 inches), a 1/4 P.T air inlet, and a net weight of 2.38 kg, it includes an integrated hanging ring for spring balancer integration to lower operator fatigue. This air hydraulic riveter is widely applied across metal fabrication, automotive and motorcycle manufacturing, hardware production, and industrial maintenance.
- OP-PS12-02
- PS12-02#01
- PS12-02#02
- PS12-02#03
- PS12-02#04
- PS12-02#05
- PS12-02#06
- PS12-02#07
- PS12-02#08
- PS12-02#09
- PS12-02#10
- PS12-02#11
- PS12-02#12
- PS12-02#13
- PS12-02#14
- PS12-02#15
- PS12-02#16
- PS12-02#17
- PS12-02#18
- PS12-02#19
- PS12-02#20
- PS12-02#22
- PS12-02#23
- PS12-02#24
- PS12-02#25
- PS12-02#26
- PS12-02#27
- PS12-02#28
- PS12-02#29
- PS12-02#30
- PS12-02#31
- PS12-02#32
- PS12-02#32-1
- PS12-02#33
- PS12-02#34
- PS12-02#35
- PS12-02#36
- PS12-02#37
- PS12-02#38
- PS12-02#39
- PS12-02#40
- PS12-02#41
- PS12-02#42
- PS12-02#43
- PS12-02#44
- PS12-02#45
- PS12-02#46
- PS12-02#47
- PS12-02#48
- PS12-02#49
- PS12-02#50
- PS12-02#51
- PS12-02#52
- PS12-02#53
- PS12-02#54
- PS12-02#55
- PS12-02#56
- PS12-02#57
- PS12-02#58
- PS12-02#59
- PS12-02#60
- PS12-02#61
- PS12-02#62
- PS12-02#63
- PS12-02#64
- PS12-02#65
- PS12-02#66
- PS12-02#67
- PS12-02#68
- PS12-02#69
- PS12-02#70
- PS12-02#71
- PS12-02#72
- PS12-02#73
- PS12-02#74
- PS12-02#75
- PS12-02#76
- PS12-02#77
- PS12-02#78
- PS12-02#79
- PS12-02#80
- PS12-02#81
- PS12-02#82
- PS12-02#83
- PS12-02#84
- PS12-02#85
- PS12-02#86
- PS12-02#87
- PS12-02#88
- PS12-02#89
- PS12-02#90
- PS12-02#91
- PS12-02#92
- PS12-02#93
- PS12-02#94
- PS12-02#95
- PS12-02#96
- PS12-02#97
- PS12-02#98
- PS12-02#99
- PS12-02#100
- PS12-02#101
- PS12-02#102
- PS12-02#103
- PS12-02#104
- PS12-02#105
- PS12-02#106
- PS12-02#107
- PS12-02#108
- PS12-02#109
- PS12-02#110
- PS12-02#111
- PS12-02#01A
- PS12-02#01B
- PS12-02#01C
- PS12-02#01D
- PS12-02#01E
- PS12-02#01F
- PS12-02#01G
- PS12-02#04A
- PS12-02#04B
- PS12-02#05A
- PS12-02#05B
- PS12-02#05C
- PS12-02#05D
- PS12-02#05E
- PS12-02#06A
- PS12-02#06B
- PS12-02#06C
- PS12-02#06D
- PS12-02#06E
- PS12-02#06F
- PS12-02#06G
- PS12-02#07A
- PS12-02#07B
- PS12-02#07C
- PS12-02#07D
- PS12-02#07E
- PS12-02#07F
- PS12-02#07G
- air hydraulic rivet nut tool
- pneumatic riveter nut tool
- heavy duty air nut setter
- industrial thread insert gun
- Onpin pneumatic rivet tool
Design file download links:
PDF fileDescription
Specification OP-PS12-O2
The Onpin OP-PS12-O2 air rivet nut tool is an industrial-grade fastening device powered by an air-hydraulic mechanism. It operates by converting compressed air pressure into high hydraulic pulling force to deform rivet nuts, creating permanent, high-strength threaded inserts on thin sheet metal without distorting the base material.
Key Features of Onpin OP-PS12-O2
- Heavy-Duty Hydraulic Power: Delivers a maximum pulling force of 2075 kg (4565 lbs) for fast, accurate, and consistent rivet nut installations.
- Wide Capacity Range: Seamlessly sets rivet nut sizes from M3 to M12 across aluminum, steel, and stainless steel fasteners.
- Adjustable Stroke: Offers a maximum stroke length of 6 mm, allowing precise adjustment based on grip range and nut size.
- High Operational Speed: Runs at a free speed of 2700 rpm to shorten cycle times and maximize assembly line throughput.
- Ergonomic Design: Features an overall length of 280 mm and a net weight of 2.38 kg, equipped with a built-in suspension ring for spring balancer integration to reduce operator fatigue.

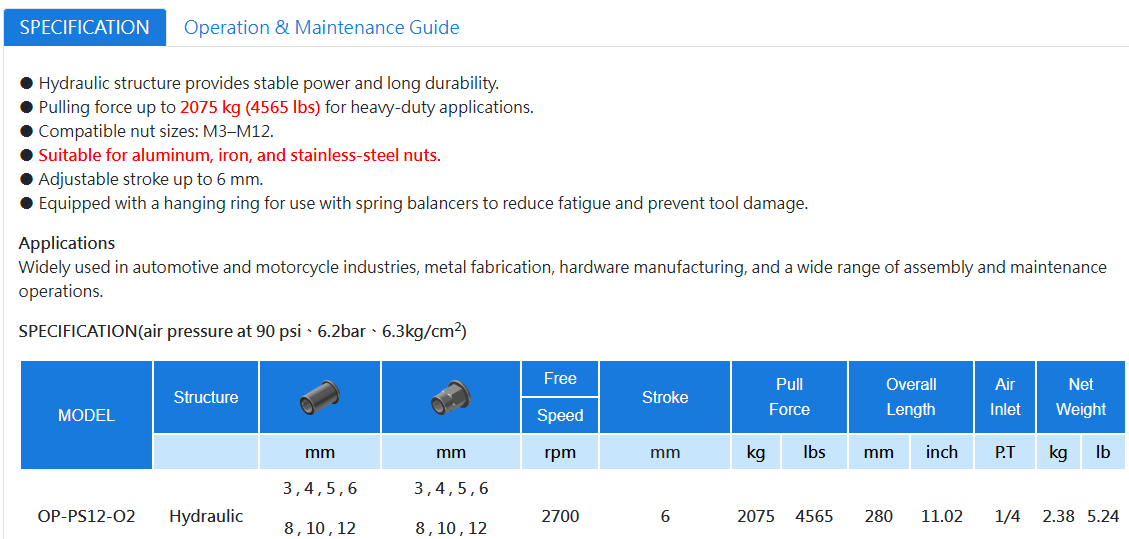

Technical Specifications of Onpin OP-PS12-O2
- Rivet Nut Capacity: M3, M4, M5, M6, M8, M10, M12
- Free Speed: 2700 rpm
- Pulling Force: 2075 kg / 4565 lbs
- Stroke Length: 6 mm
- Air Inlet: 1/4" P.T
- Overall Length: 280 mm / 11.02 in
- Net Weight: 2.38 kg / 5.25 lbs
Industrial Applications of Onpin OP-PS12-O2
- Sheet Metal & Electrical Enclosures: Creating durable threads on control panels, elevator cabs, machine housings, and HVAC units.
- Automotive & Transportation Assembly: Fastening structural components, chassis parts, and interior/exterior trim panels.
- Metal Furniture Manufacturing: Installing thread inserts into steel frames, racks, and commercial shelving systems.
- General Industrial Maintenance: Ideal for aerospace fabrication workshops, shipbuilding yards, and heavy machinery overhaul lines.
