Onpin OP-484 Pneumatic Tapping Tool - Capacity 8-16mm, 250 RPM, 1/4" P.T (80 ký tự)
The Onpin OP-484 pneumatic tapping tool is an industrial-grade threading device operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It features a versatile tapping capacity for Aluminum (8~16mm), Copper (8~16mm), and Iron (8~14mm) at a free speed of 250 rpm. With an overall length of 297 mm, a net weight of 2.17 kg, air consumption of 371 l/min (13.1 cfm), a 1/4 P.T air inlet, and a sound level of 88 dB(A), the OP-484 delivers high precision and efficient operation for metalworking workflows.
- OP-484
- Onpin OP-484
- Onpin OP484
- Onpin OP-484 pneumatic tapping tool
- Onpin OP-484 air tapping machine
- pneumatic tapping tool
- air tapping machine
- pneumatic tapper
- air powered tapping tool
- industrial pneumatic tapping equipment
Design file download links:
Other fileDescription

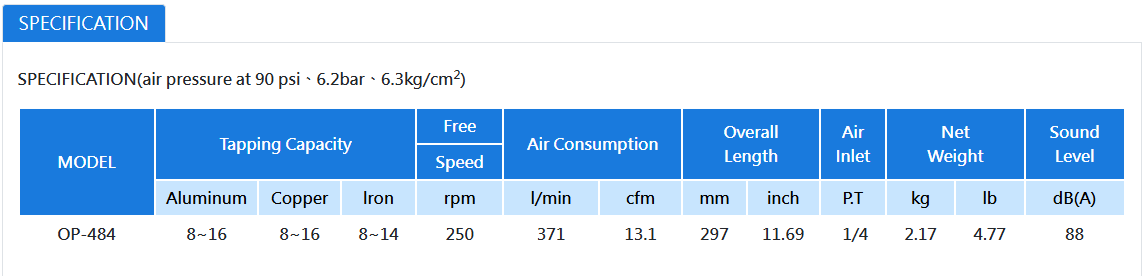

Specification OP-484
The Onpin OP-484 is a heavy-duty pneumatic tapping tool designed for precision metalworking and industrial manufacturing. Powered by compressed air, it drives the spindle to perform fast and accurate internal thread tapping on various metallic materials. Featuring a robust design operating at standard air pressure, the Onpin OP-484 significantly enhances production efficiency while reducing tap breakage compared to manual tapping methods.
Key Features of Onpin OP-484
- Heavy-Duty Tapping Range: Capable of thread processing on aluminum (8~16 mm), copper (8~16 mm), and iron (8~14 mm).
- 250 rpm Free Speed: Delivers high torque and stable rotation to ensure clean and precise thread quality.
- Ergonomic Industrial Design: Weighing 2.17 kg with an overall length of 297 mm, allowing smooth handling in workshop environments.
- Efficient Air Consumption: Consumes 371 l/min (13.1 cfm), making it compatible with standard industrial compressed air systems.
- Standard Fitting: Equipped with a 1/4 P.T air inlet for easy setup and reliable hose connection.
Technical Specifications of Onpin OP-484
- Brand: Onpin
- Model: OP-484
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
- Tapping Capacity:
- Aluminum: 8 ~ 16 mm
- Copper: 8 ~ 16 mm
- Iron: 8 ~ 14 mm
- Free Speed: 250 rpm
- Air Consumption: 371 l/min (13.1 cfm)
- Overall Length: 297 mm (11.69 inches)
- Air Inlet: 1/4 P.T
- Net Weight: 2.17 kg (4.77 lbs)
- Sound Level: 88 dB(A)
Industrial Applications of Onpin OP-484
- Machining & Heavy Metal Fabrication: Ideal for tapping holes in thick metal plates, machinery components, and molds made of aluminum, copper, and iron.
- Automotive & Machinery Assembly: Used for threading heavy-duty structural parts, housings, and components requiring larger thread diameters.
- Steel Structure & Sheet Metal Manufacturing: Quickly threads mounting holes on structural frames and heavy metal enclosures.
- Industrial Maintenance & Repair: Perfect for batch production lines and restoring damaged internal threads on site.
