Onpin OP-08AKS Pneumatic Air Tapper B12 Spindle - Overload Protection, 3-8mm, 350RPM

Specification OP-08AKS

The Onpin OP-08AKS Air Tapper is an industrial pneumatic tapping tool powered by compressed air at a standard operating pressure of 90 psi (6.2 bar) for internal thread cutting on metal workpieces. Engineered with a heavy-duty gear-type structure and a low-runout B12 taper spindle, it delivers high precision at a free speed of 350 RPM. The tool features an integrated internal overload protection mechanism within the chuck that automatically slips under torque overload to safeguard taps and workpieces.

Key Features of Onpin OP-08AKS

1. Gear-Type Structure: Ensures consistent power transmission, stable operation, and reliable torque output.
2. B12 Taper Spindle: Designed with minimal runout for high-precision threading and extended tap life.
3. Internal Overload Protection: Chuck slips automatically under torque overload to prevent tap breakage and protect workpieces.
4. Ideal for Blind Hole Tapping: Safety clutch design makes it exceptionally reliable for blind hole tapping operations.
5. International Standard Compatibility: Universal chuck mechanism holds taps compatible with all international standard sizes.
6. Push-Button Switch: Allows rapid forward/reverse directional switching for smooth one-hand operation.
7. Support Arm Integration: Can be paired with a support arm for enhanced operational stability and reduced operator fatigue.

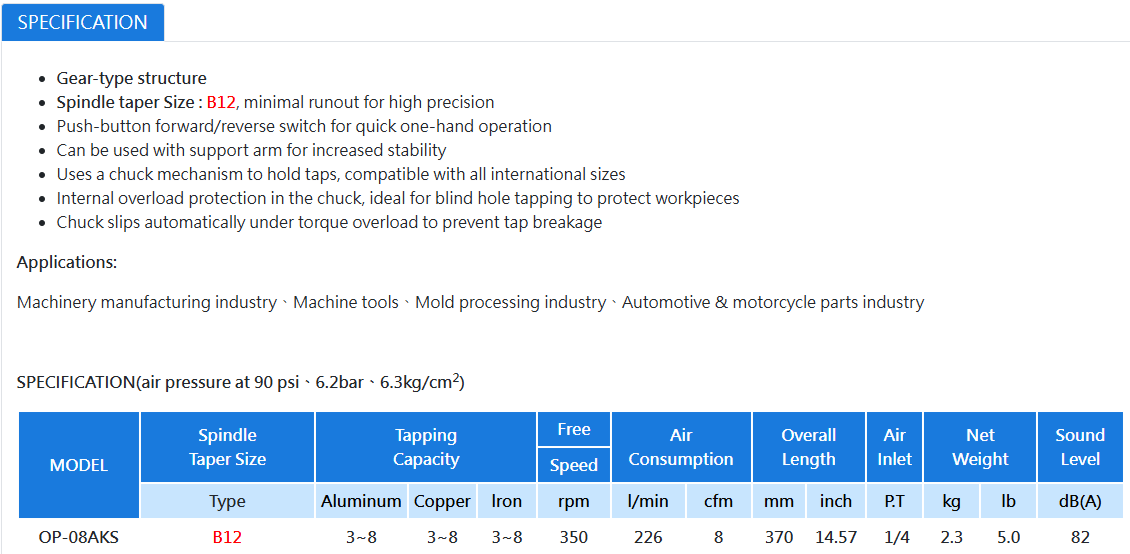

Technical Specifications of Onpin OP-08AKS

1. Brand: Onpin
2. Model: OP-08AKS
3. Spindle Taper Size: B12
4. Tapping Capacity:
5. Aluminum: 3 ~ 8 mm
6. Copper: 3 ~ 8 mm
7. Iron: 3 ~ 8 mm
8. Free Speed: 350 RPM
9. Air Consumption: 226 l/min (8 CFM)
10. Overall Length: 370 mm (14.57 inch)
11. Air Inlet: 1/4 P.T
12. Net Weight: 2.3 kg (5.0 lb)
13. Sound Level: 82 dB(A)
14. Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²

Industrial Applications of Onpin OP-08AKS

1. Machinery Manufacturing Industry: Threading machine frames, structural parts, and mechanical assemblies.
2. Machine Tools Industry: Precision tapping and maintenance of machine tool components and fixtures.
3. Mold Processing Industry: Accurate internal thread cutting on mold plates, bases, and tooling components.
4. Automotive & Motorcycle Parts Industry: High-efficiency mass tapping operations for vehicle components and hardware.
