Onpin OP-14AKS Pneumatic Air Tapper B16 Spindle - Overload Protection, 3-12mm, 350RPM
The Onpin OP-14AKS pneumatic air tapper features a robust gear-type structure, a 44 mm shank diameter, and a low-runout B16 taper spindle for high-precision operations. Operating at a free speed of 350 RPM with air consumption of 283 l/min, it delivers a versatile 3~12mm tapping capacity across aluminum, copper, and iron. Equipped with an international-standard three-jaw clamping chuck, it incorporates internal overload protection that automatically slips under torque overload to prevent tap breakage and protect workpieces during blind hole tapping. Designed with a push-button forward/reverse switch for fast one-handed operation and compatibility with the RB16 support arm, it is highly suitable for machinery, machine tools, mold processing, and automotive/motorcycle parts industries. Contact us today for project purchasing, commercial wholesale discounts, system compatibility consulting, and official VAT invoice issuing.
- Onpin OP Series
- Onpin OP-AKS Series
- OP-14 Series
- OP-14AKS
- OP14AKS
- OP-B16C
- Onpin air tapper
- pneumatic tapping machine
- B16 taper spindle air tapper
- overload protection pneumatic tapper
- air powered tapping tool
Design file download links:
PDF fileDescription
Specification OP-14AKS
The Onpin OP-14AKS Air Tapper is an industrial pneumatic tapping tool powered by compressed air at a standard working pressure of 90 psi (6.2 bar) for internal thread cutting on metal workpieces. Built with a heavy-duty gear-type structure and a low-runout B16 taper spindle, it operates at a free speed of 350 RPM to ensure high machining precision. The tool is equipped with a built-in overload protection mechanism in the collet that automatically slips under excessive torque, effectively protecting workpieces and preventing tap breakage during blind hole tapping.
Key Features of Onpin OP-14AKS
- Gear-Type Structure: Delivers powerful torque transmission, high stability, and durability under continuous production loads.
- B16 Taper Spindle: Designed with minimal runout for high precision and extended cutting tool lifespan.
- 44 mm Shank Diameter: Sturdy structure ensuring secure clamping and mounting.
- Built-in Overload Protection: Features automatic slip under torque overload, protecting workpieces and making it ideal for blind hole tapping.
- Three-Jaw Clamping Design: Universal chuck holding mechanism compatible with taps of all international standard sizes.
- Push-Button Switch: Enables quick one-handed operation for rapid forward and reverse direction switching.
- RB16 Support Arm Compatibility: Easily interfaces with the RB16 support arm for enhanced stability during heavy-duty tapping.

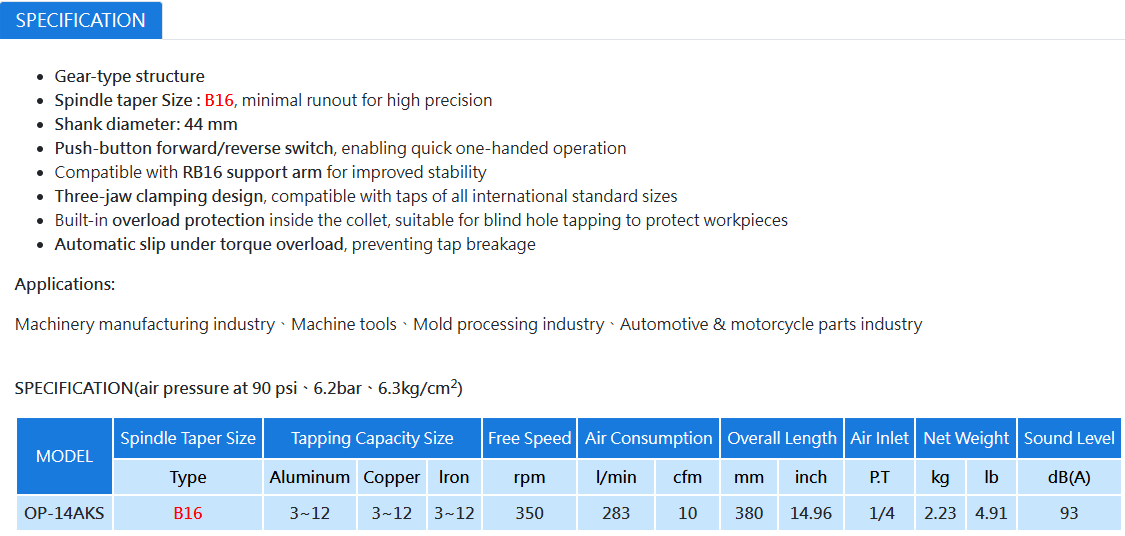

Technical Specifications of Onpin OP-14AKS
- Brand: Onpin
- Model: OP-14AKS
- Tapping Chuck Model: OP-B16C
- Spindle Taper Size: B16
- Shank Diameter: 44 mm
- Tapping Capacity Size:
- Aluminum: 3 ~ 12 mm
- Copper: 3 ~ 12 mm
- Iron: 3 ~ 12 mm
- Free Speed: 350 RPM
- Air Consumption: 283 l/min (10 CFM)
- Overall Length: 380 mm (14.96 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 2.23 kg (4.91 lb)
- Sound Level: 93 dB(A)
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-14AKS
- Machinery Manufacturing Industry: Internal thread cutting on structural machine frames, housings, and mechanical components.
- Machine Tools Industry: Production, fabrication, and maintenance of machine tool components and jigs.
- Mold Processing Industry: Precise tapping on mold plates, mold bases, and high-precision inserts.
- Automotive & Motorcycle Parts Industry: High-efficiency mass tapping operations for vehicle hardware, structural parts, and brackets.
