/ Onpin OP-601AKI Air Tapper Wrench - 3/8 Inch Anvil Size, Tapping Capacity M6-M12, Free Speed 150rpm, Weight 1.77kg
Onpin OP-601AKI Air Tapper Wrench - 3/8 Inch Anvil Size, Tapping Capacity M6-M12, Free Speed 150rpm, Weight 1.77kg
The Onpin OP-601AKI Air Tapping Wrench features a 3/8" anvil size and a versatile three-jaw clamping design tailored for high-precision tapping operations in machinery manufacturing, machine tools, mold processing, and automotive/motorcycle parts industries. It delivers robust tapping capacity for aluminum (6~12mm), copper (6~12mm), and iron (6~8mm) at a free speed of 150 rpm and air consumption rate of 198 l/min. Built with a rocker-style forward/reverse switch for one-handed operation, an auxiliary handle for enhanced stability, and a bottom exhaust design that maintains a low noise level of 82 dB(A). Measuring 245 mm in length and weighing 1.77 kg, it incorporates a hanging ring for spring balancer integration to minimize operator fatigue.
- OP-601AKI
- 601AKI
- 01-102-03
- 02-200-04
- 02-200-07
- 02-202-01
- 03-300-02
- 03-700-04
- 04-700-03
- 04-701-04
- 04-701-05
- 04-702-04
- 04-703-05
- 09-702-04
- 12-700-05
- 13-702-01
- 15-701-07
- 15-702-04
- 15-702-10
- 15-703-01
- 16-701-02
- 16-701-08
- 17-704-01
- 20-702-01
- 25-702-12
- 26-501-02
- 31-703-01
- 35-706-02
- 36-503-15
- 37-503-02
- 38-503-01
- 48-703-01
- 49-502-02
- 51-402-09
- 51-701-04
- 74-708-04
- 75-704-01
- 75-707-01
- 78-616-01
- 79-608-09
- 80-705-03
- 80-705-03-01
- 80-705-05-1
- 80-705-05-02
- 80-705-05-04
- 80-705-05-05
- 80-705-05-06
- 80-705-05-R
- Onpin air tapper wrench
- pneumatic air tapping wrench 3/8 anvil
- industrial pneumatic tapper M6 M12
- air tapping tool with auxiliary handle
- reversible air tapper wrench
Design file download links:
PDF fileDescription
Specification OP-601AKI
The Onpin OP-601AKI Air Tapping Wrench is a specialized pneumatic thread-tapping tool powered by compressed air at a standard operating pressure of 90 psi / 6.2 bar / 6.3 kg/cm². It converts pneumatic energy through a gear-type structure into a free speed of 150 rpm, helping engineers execute fast and precise tapping operations on metallic workpieces.
Key Features of Onpin OP-601AKI
- 3/8" Anvil Size & Three-Jaw Clamping: Equipped with a 3/8" anvil size and a versatile three-jaw clamping design suitable for taps of various sizes.
- Low Noise Bottom Exhaust: Features a bottom exhaust design that maintains low-noise operation at a sound level of 82 dB(A).
- One-Handed Quick Control & High Stability: Designed with a rocker-style forward/reverse switch enabling one-handed quick operation, alongside an auxiliary handle for improved operational stability.
- Fatigue-Reducing Hanging Ring: Includes a hanging ring design compatible with spring balancers to prevent tool damage and reduce operator fatigue.

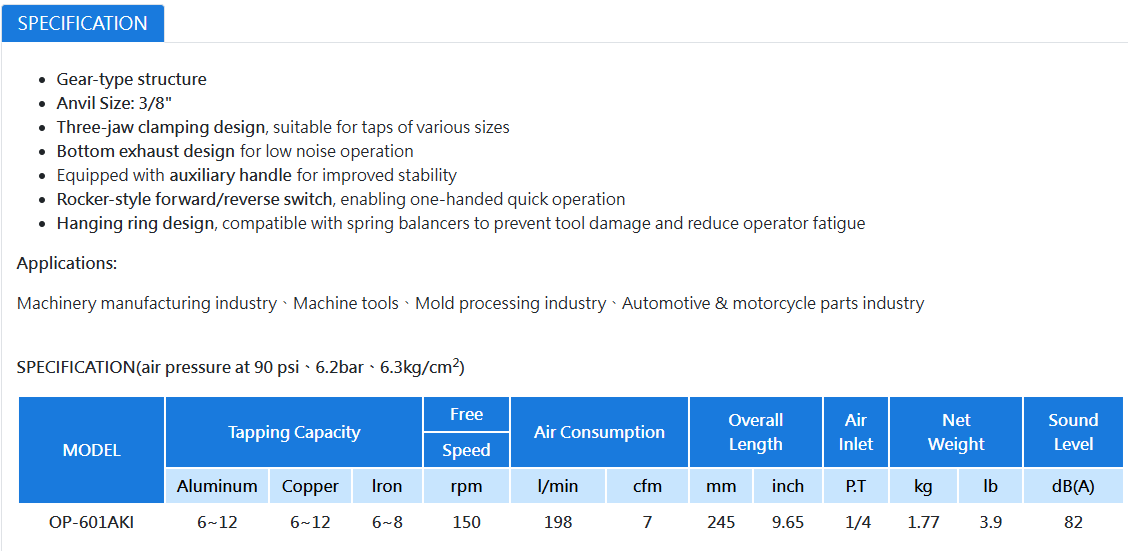

Technical Specifications of Onpin OP-601AKI
- Brand: Onpin
- Model: OP-601AKI (or 601AKI)
- Anvil Size: 3/8"
- Tapping Capacity: Aluminum: 6~12 mm, Copper: 6~12 mm, Iron: 6~8 mm
- Free Speed: 150 rpm
- Air Consumption: 198 l/min (7 cfm)
- Overall Length: 245 mm (9.65 inch)
- Air Inlet: 1/4" P.T.
- Net Weight: 1.77 kg (3.9 lb)
- Sound Level: 82 dB(A)
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-601AKI
- Machinery Manufacturing Industry: Used for thread-tapping tasks across heavy machinery manufacturing lines.
- Machine Tools: Applied directly in machine tool setups for efficient metal tapping.
- Mold Processing Industry: Suitable for precision tapping operations on mold components and metal dies.
- Automotive & Motorcycle Parts Industry: Ideal for component threading and assembly in automotive and motorcycle parts production.
