Onpin OP-12AK Pneumatic Air Tapper B12 Spindle - Tapping 3-12mm, 100RPM
The Onpin OP-12AK pneumatic air tapper features a gear-driven structure and a low-runout B12 taper spindle, ensuring reliable performance at a free speed of 100 RPM. It offers a tapping capacity of 3~12mm in aluminum/copper and 3~10mm in iron, integrated with a torque collet for workpiece protection during blind hole tapping. Built with a push-type forward/reverse switch for one-hand operation and a rear exhaust design, it is ideal for machinery, mold, automotive parts, and aerospace applications. For B2B bulk purchases, project inquiries, commercial discounts, system integration support, and VAT invoicing, please contact our sales team today.
- Onpin OP Series
- Onpin OP-AK Series
- OP-12 Series
- OP-12AK
- OP12AK
- Onpin air tapper
- pneumatic tapping machine
- B12 taper spindle air tapper
- industrial pneumatic tapper
- air powered tapping tool
Design file download links:
PDF fileDescription

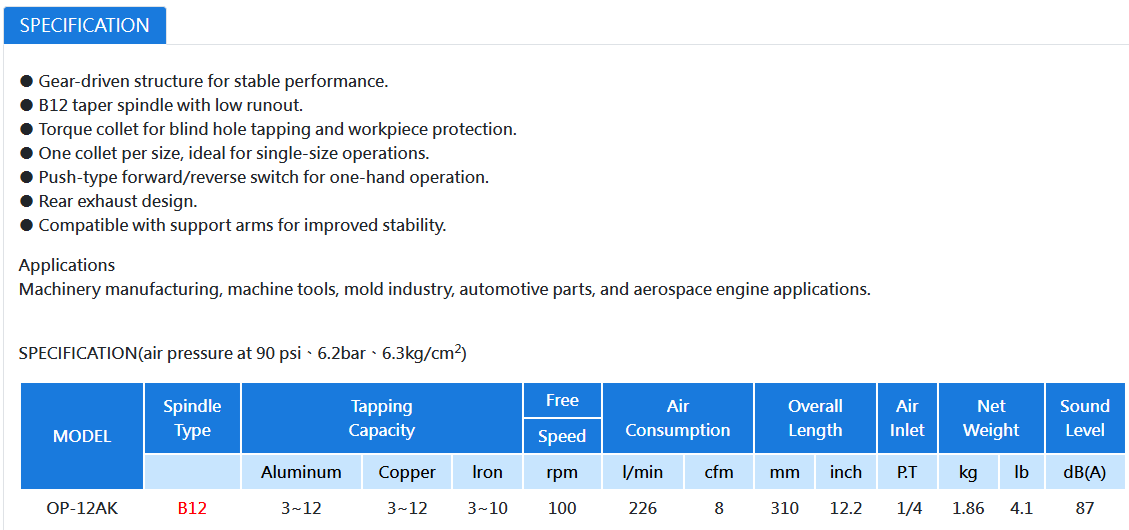

Specification OP-12AK
The Onpin OP-12AK Air Tapper is an industrial-grade pneumatic hand tool designed for high-precision internal thread tapping, driven by compressed air at a standard operating pressure of 90 psi (6.2 bar). Featuring a gear-driven mechanism coupled with a low-runout B12 taper spindle, it delivers high torque performance at a controlled speed of 100 RPM for heavy-duty manufacturing tasks.
Key Features of Onpin OP-12AK
- Gear-Driven Mechanism: Provides smooth power delivery and durable performance under heavy continuous loads.
- B12 Taper Spindle: Features a low runout design to maintain high thread accuracy and prevent premature tap wear.
- Torque Collet Protection: Essential for blind hole tapping, shielding the workpiece from damage and preventing tap breakage.
- Single-Size Dedicated Collet: Employs one collet per size, optimized for dedicated single-size repetitive tapping operations.
- Push-Type Forward/Reverse Switch: Enables seamless one-hand operation for quick forward and reverse direction switching.
- Rear Exhaust Design: Directs exhaust air away from the working zone, ensuring clean workpieces and enhanced operator comfort.
- Support Arm Integration: Highly compatible with reaction arms or robot arms to enhance stability during high-torque operation.
Technical Specifications of Onpin OP-12AK
- Brand: Onpin
- Model: OP-12AK
- Spindle Type: B12
- Tapping Capacity:
- Aluminum: 3 ~ 12 mm
- Copper: 3 ~ 12 mm
- Iron: 3 ~ 10 mm
- Free Speed: 100 RPM
- Air Consumption: 226 l/min (8 CFM)
- Overall Length: 310 mm (12.2 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.86 kg (4.1 lb)
- Sound Level: 87 dB(A)
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-12AK
- Machinery Manufacturing: Precision internal tapping for machine frames, structural parts, and mechanical assemblies.
- Machine Tools Industry: Thread cutting and maintenance operations for industrial tool components.
- Mold & Die Industry: Accurate tapping on mold bases, plates, and tooling inserts.
- Automotive Parts Manufacturing: High-efficiency mass threading for automotive structural parts and brackets.
- Aerospace Engine Applications: Specialized tapping operations for critical aerospace engine components.
