Onpin OP-08AK Pneumatic Air Tapper B12 Spindle - Tapping 2-8mm, 350RPM
The Onpin OP-08AK air tapper features a gear-driven structure and a low-runout B12 taper spindle for stable, high-precision performance. It offers a tapping capacity of 2~8mm for aluminum/copper and 2~4mm for iron, equipped with a torque collet for workpiece protection and blind hole tapping. Operating at a free speed of 350 RPM with air consumption of 226 l/min, this tool is ideal for machinery manufacturing, mold industries, automotive parts, and aerospace applications. For bulk project inquiries, B2B purchasing, commercial discounts, system compatibility guidance, and VAT invoicing, please contact our sales team today.
- Onpin OP Series
- Onpin OP-AK Series
- OP-08 Series
- OP-08AK
- OP08AK
- Onpin air tapper
- pneumatic tapping machine
- B12 taper spindle air tapper
- industrial pneumatic tapper
- air powered tapping tool
Design file download links:
PDF fileDescription
Specification OP-08AK
The Onpin OP-08AK Air Tapper is a heavy-duty pneumatic hand tool designed for industrial internal thread cutting, powered by compressed air at a standard operating pressure of 90 psi (6.2 bar). Featuring a robust gear-driven structure combined with a low-runout B12 taper spindle, this equipment delivers exceptional torque output and high precision for continuous production line environments.
Key Features of Onpin OP-08AK
- Gear-Driven Mechanism: Ensures stable power transmission and long-lasting durability under demanding workloads.
- B12 Taper Spindle: Engineered with low runout to achieve precise thread geometry and prevent premature tap wear.
- Torque Collet Protection: Designed for blind hole tapping to safeguard workpieces from damage and minimize tap breakage.
- Single-Size Dedicated Collet: Utilizes one collet per size, making it ideal for streamlined, single-size production tasks.
- Push-Type Forward/Reverse Switch: Enables seamless, one-hand operation for quick directional changes during tapping.
- Rear Exhaust Design: Directs exhaust air away from the working zone, keeping the workpiece clear of debris and enhancing operator safety.
- Support Arm Compatibility: Easily interfaces with reaction arms or robot arms to improve operational stability and reduce operator fatigue during heavy-duty tapping.

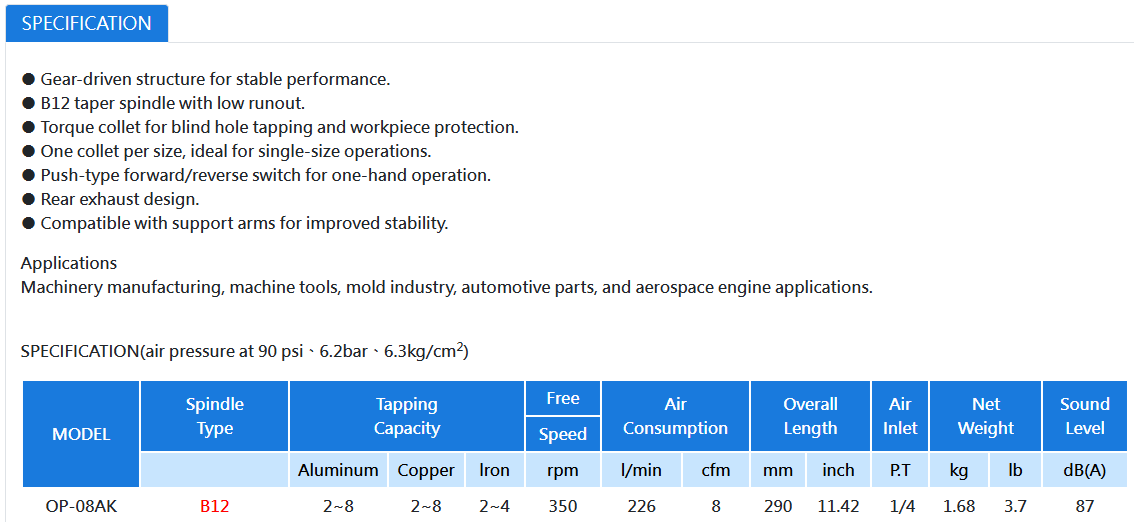

Technical Specifications of Onpin OP-08AK
- Brand: Onpin
- Model: OP-08AK
- Spindle Type: B12
- Tapping Capacity:
- Aluminum: 2 ~ 8 mm
- Copper: 2 ~ 8 mm
- Iron: 2 ~ 4 mm
- Free Speed: 350 RPM
- Air Consumption: 226 l/min (8 CFM)
- Overall Length: 290 mm (11.42 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.68 kg (3.7 lb)
- Sound Level: 87 dB(A)
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-08AK
- Machinery Manufacturing: Threading structural frames, machine components, and mechanical assemblies.
- Machine Tools Industry: Fabrication and maintenance of precision machine components and fixtures.
- Mold & Die Industry: Precise internal tapping on mold bases, plates, and tool inserts.
- Automotive Parts Manufacturing: High-efficiency mass tapping operations for automotive hardware and brackets.
- Aerospace Engine Applications: Specialized thread tapping for high-spec aerospace propulsion components.
