Onpin OP-B12B / OP-B16C Three-Jaw Tapping Torque Collet - B12/B16 Taper, M3-M12 Range, Quick-Change
The Onpin OP Series three-jaw tapping torque collet (models OP-B12B and OP-B16C) is a quick-change tool offering a broad clamping range of M3 to M12. Engineered with a built-in internal overload protection mechanism, it automatically slips under torque overload to prevent tap breakage and protect workpieces during blind hole tapping operations. The lineup offers compatibility with B12 spindle taper (OP-B12B) and B16 spindle taper (OP-B16C), both featuring an overall length of 120 mm and a net weight of 0.86 kg. It is widely applied in machinery manufacturing, machine tools, mold processing, automotive/motorcycle parts, and aircraft engine industries.
- OP-B12B
- OP-B16C
- Onpin OP-B12B
- Onpin OP-B16C
- OP Series
- Onpin OP Series
- Three-Jaw Tapping Collet
- three-jaw tapping torque collet
- B12 B16 spindle taper tapping collet
- M3-M12 tapping collet
- quick-change tapping tool
- torque overload tapping chuck
Design file download links:
Other fileDescription

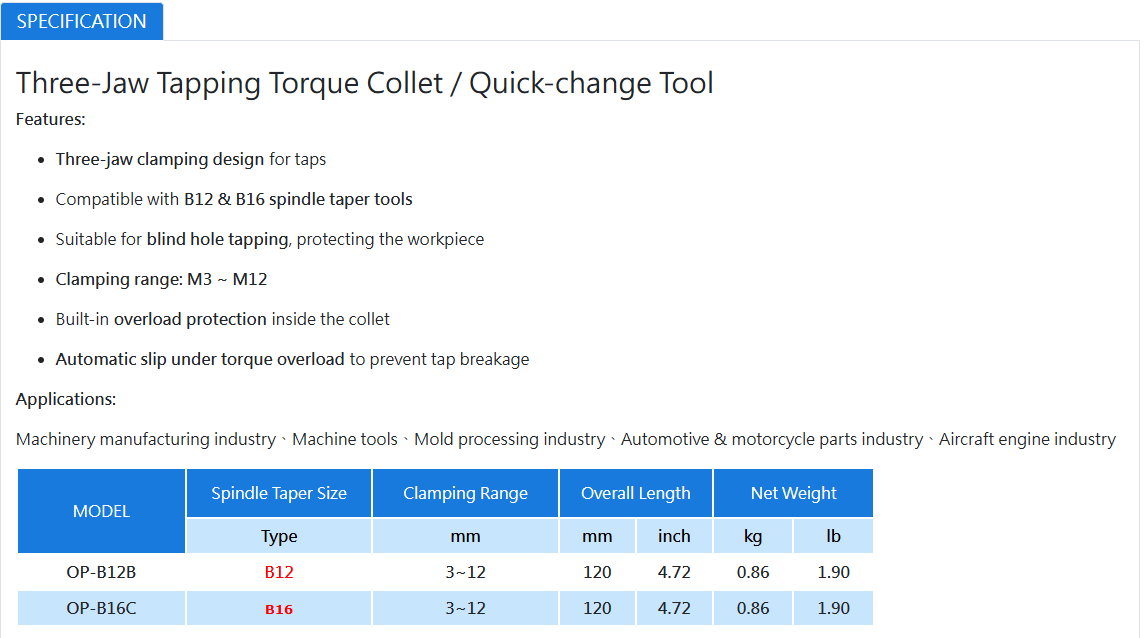

Specification OP-B12B、OP-B16C (Adjustable Clutch Type)
The Onpin OP-B12B and Onpin OP-B16C (belonging to the OP Series) are heavy-duty three-jaw tapping torque collets (Quick-change Tools) engineered for precision internal thread tapping operations. Operating via an integrated torque-limiting mechanism, they feature an automatic slip function under torque overload to prevent tap breakage and protect workpieces during machining. The line offers a broad clamping range of M3 ~ M12 with two spindle taper options: B12 (model OP-B12B) and B16 (model OP-B16C).
Key Features of Onpin OP-B12B / OP-B16C
- Three-Jaw Clamping Design: Provides robust, concentric, and rapid clamping for various tap shanks.
- Built-in Overload Protection: Automatically slips when rotational torque exceeds safety limits to prevent tap snapping.
- Optimized for Blind Hole Tapping: Effectively guards both the workpiece and the tap when reaching the bottom of blind holes.
- Versatile Spindle Taper Options: Offers standard B12 and B16 spindle taper connections for broad machine compatibility.
- Broad Capacity Range: Accommodates tap sizes from M3 ~ M12 with an overall length of 120 mm and net weight of 0.86 kg.
Technical Specifications of Onpin OP-B12B / OP-B16C
- Brand: Onpin
- Product Series: OP Series (including models OP-B12B and OP-B16C)
- Tool Type: Three-Jaw Tapping Torque Collet / Quick-change Tool
- Clamping Range: M3 ~ M12
- Detailed Model Specifications:
- Model OP-B12B:
- Spindle Taper Size: B12
- Clamping Range: 3 ~ 12 mm (M3 ~ M12)
- Overall Length: 120 mm (4.72 inches)
- Net Weight: 0.86 kg (1.90 lbs)
- Model OP-B16C:
- Spindle Taper Size: B16
- Clamping Range: 3 ~ 12 mm (M3 ~ M12)
- Overall Length: 120 mm (4.72 inches)
- Net Weight: 0.86 kg (1.90 lbs)
Industrial Applications of Onpin OP-B12B / OP-B16C
- Machinery Manufacturing Industry: Utilized on metalworking machinery for high-precision threading operations.
- Machine Tools: Integrated as a quick-change tapping accessory on drilling and tapping machine spindles.
- Mold Processing Industry: Ideal for tapping mold bases and components without the risk of broken taps damaging expensive molds.
- Automotive & Motorcycle Parts Industry: Applied in mass production lines for engine and chassis component threading.
- Aircraft Engine Industry: Suitable for high-precision tapping operations in aerospace component fabrication.
