Onpin OP-484 Pneumatic Tapping Tool - Taper B18, Capacity 4-24mm, 90/250 RPM, 1/4" P.T
The Onpin OP-483 pneumatic tapping tool is a heavy-duty industrial threading device featuring a B18 taper size and operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It offers a broad tapping capacity for Aluminum (4~24mm), Copper (4~24mm), and Iron (4~22mm) with dual free speeds of 90/250 rpm. Built with an overall length of 346 mm (13.62 inches), a net weight of 3.14 kg (6.91 lbs), air consumption of 374 l/min (13.2 cfm), a 1/4 P.T air inlet, and a sound level of 88 dB(A), the OP-483 ensures reliable torque and high precision for machining processes.
- OP-483
- Onpin OP-483
- Onpin OP483
- Onpin OP-483 pneumatic tapping tool
- Onpin OP-483 air tapping machine
- pneumatic tapping tool
- air tapping machine
- pneumatic tapper
- air powered tapping tool
- industrial pneumatic tapping equipment
Design file download links:
Other fileDescription

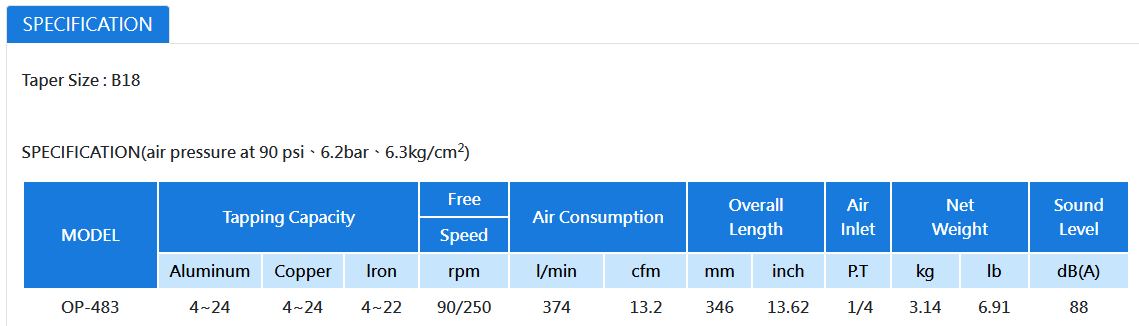

Specification OP-483
The Onpin OP-483 is a heavy-duty pneumatic tapping tool equipped with a B18 taper size, designed for precision metalworking and industrial manufacturing. Powered by compressed air, it drives the spindle to perform fast and accurate internal thread tapping on various metallic materials. Featuring a robust design operating at standard air pressure, the Onpin OP-483 significantly enhances production efficiency while reducing tap breakage compared to manual tapping methods.
Key Features of Onpin OP-483
- Wide Tapping Capacity: Capable of thread processing on aluminum (4~24 mm), copper (4~24 mm), and iron (4~22 mm).
- B18 Taper Size: Features a B18 taper for secure chuck mounting and efficient torque transmission.
- Dual Free Speed (90/250 rpm): Provides flexible speed and high torque control tailored to different thread diameters and material hardness.
- Robust Construction: Weighing 3.14 kg with an overall length of 346 mm, providing stability during heavy-duty tapping operations.
- Efficient Air Consumption: Consumes 374 l/min (13.2 cfm), ensuring compatibility with standard industrial compressed air systems.
- Standard Fitting: Equipped with a 1/4 P.T air inlet for easy setup and reliable hose connection.
Technical Specifications of Onpin OP-483
- Brand: Onpin
- Model: OP-483
- Taper Size: B18
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
- Tapping Capacity:
- Aluminum: 4 ~ 24 mm
- Copper: 4 ~ 24 mm
- Iron: 4 ~ 22 mm
- Free Speed: 90/250 rpm
- Air Consumption: 374 l/min (13.2 cfm)
- Overall Length: 346 mm (13.62 inches)
- Air Inlet: 1/4 P.T
- Net Weight: 3.14 kg (6.91 lbs)
- Sound Level: 88 dB(A)
Industrial Applications of Onpin OP-483
- Heavy Machining & Metal Fabrication: Ideal for tapping large-diameter holes in thick metal plates, machinery components, and molds made of aluminum, copper, and iron.
- Automotive & Heavy Machinery Assembly: Used for threading heavy-duty structural parts, housings, and components requiring large thread sizes.
- Steel Structure & Sheet Metal Manufacturing: Quickly threads mounting holes on structural frames and heavy metal enclosures.
- Industrial Maintenance & Repair: Perfect for batch production lines and restoring damaged internal threads on site.
