When Should You Use Compact Pneumatic Cylinders?

What Is a Compact Cylinder?

A compact cylinder is a type of pneumatic cylinder designed with a shorter and smaller body to save installation space in automation systems and machinery.

Compared to standard cylinders like the SC series:

1. Compact cylinders are much shorter
2. Easier to install in tight spaces
3. Lighter in weight

👉 Compact cylinders are commonly used in:

1. Mini automation machines
2. Automatic jigs
3. Pick & place systems
4. Small clamping mechanisms

The Biggest Advantage of Compact Cylinders

Compact Design

Compact cylinders feature:

1. Shorter body length
2. Reduced installation space
3. Smaller machine footprint

👉 This is the main reason why compact cylinders are widely used in modern automation systems.

When Should You Use Compact Cylinders?

When Installation Space Is Limited

If your machine:

1. Does not have enough space for long cylinders
2. Requires a compact mechanical design

👉 Compact cylinders are usually the best solution.

Examples:

1. Mini automation machines
2. Small clamping jigs
3. Compact automation systems

When Stroke Length Is Short

Compact cylinders are ideal for:

1. Short stroke applications
2. Small movement distances

👉 If your application requires:

1. Long stroke
2. Heavy loads

→ Standard SC cylinders are usually better.

Advantages of Compact Cylinders

Space Saving

The biggest advantage:

1. Reduced machine size

👉 Perfect for:

1. Modern automation systems
2. Compact machine designs

Lightweight Design

Compact cylinders:

1. Are lighter than standard cylinders
2. Reduce load on moving mechanisms

Easy Installation

Many compact cylinders:

1. Support multiple mounting styles
2. Are easy to integrate into machinery

Disadvantages of Compact Cylinders

Limited Long Stroke Capability

Compact cylinders:

1. Are not ideal for very long strokes

👉 If your application needs:

1. Long stroke
2. Heavy load handling

→ SC cylinders are usually the better choice.

Lower Resistance to Off-Center Loads

If your application has:

1. Side loads
2. Large lateral forces

👉 Compact cylinders may experience:

1. Vibration
2. Faster wear
3. Reduced lifespan

Common Applications of Compact Cylinders

Compact cylinders are commonly used in:

Pick & Place Machines

1. Handling small products

Automatic Jigs

1. Clamping components

Mini Packaging Machines

1. Space-saving automation

Electronics Equipment

1. Small-sized mechanisms

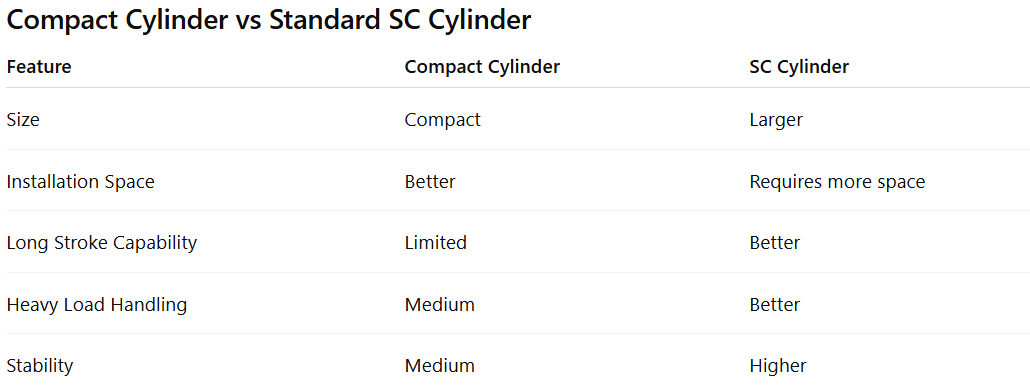

👉 Neither type is universally better.

The correct choice depends on the application.

Should You Use Compact Cylinders?

👉 YES, if you need:

1. Compact machine design
2. Space-saving solutions
3. Short stroke movement
4. Light to medium loads

👉 NOT recommended if:

1. The load is very heavy
2. The stroke is very long
3. Large off-center loads are involved

Conclusion

Compact cylinders are an excellent solution for:

1. Mini automation systems
2. Space-saving machinery
3. Applications requiring compact pneumatic motion

👉 However:

1. Compact cylinders are not always the best choice
2. Cylinder selection should depend on actual load and stroke requirements

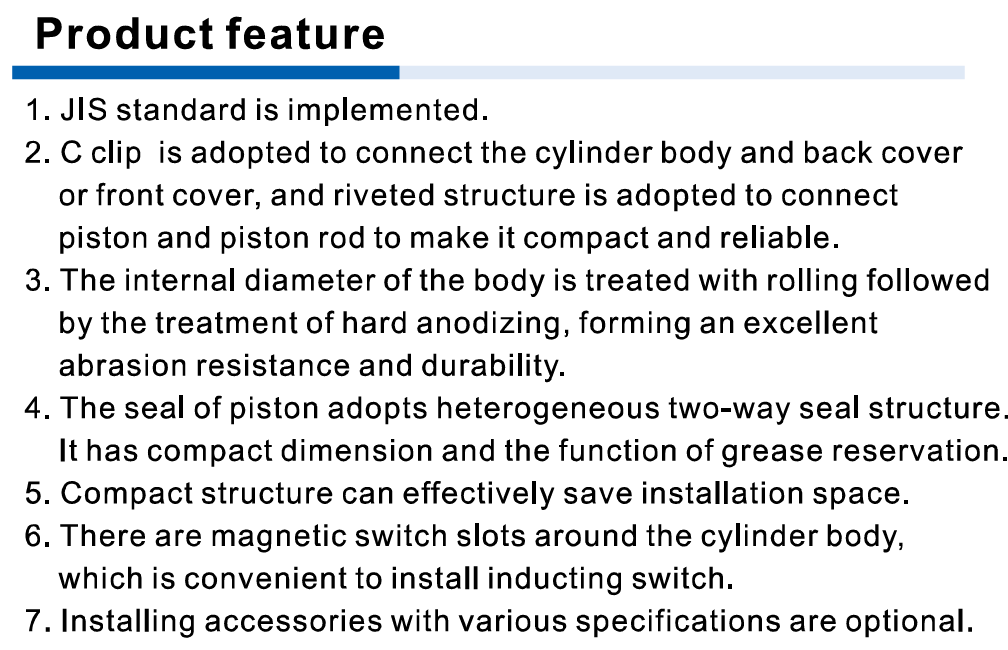

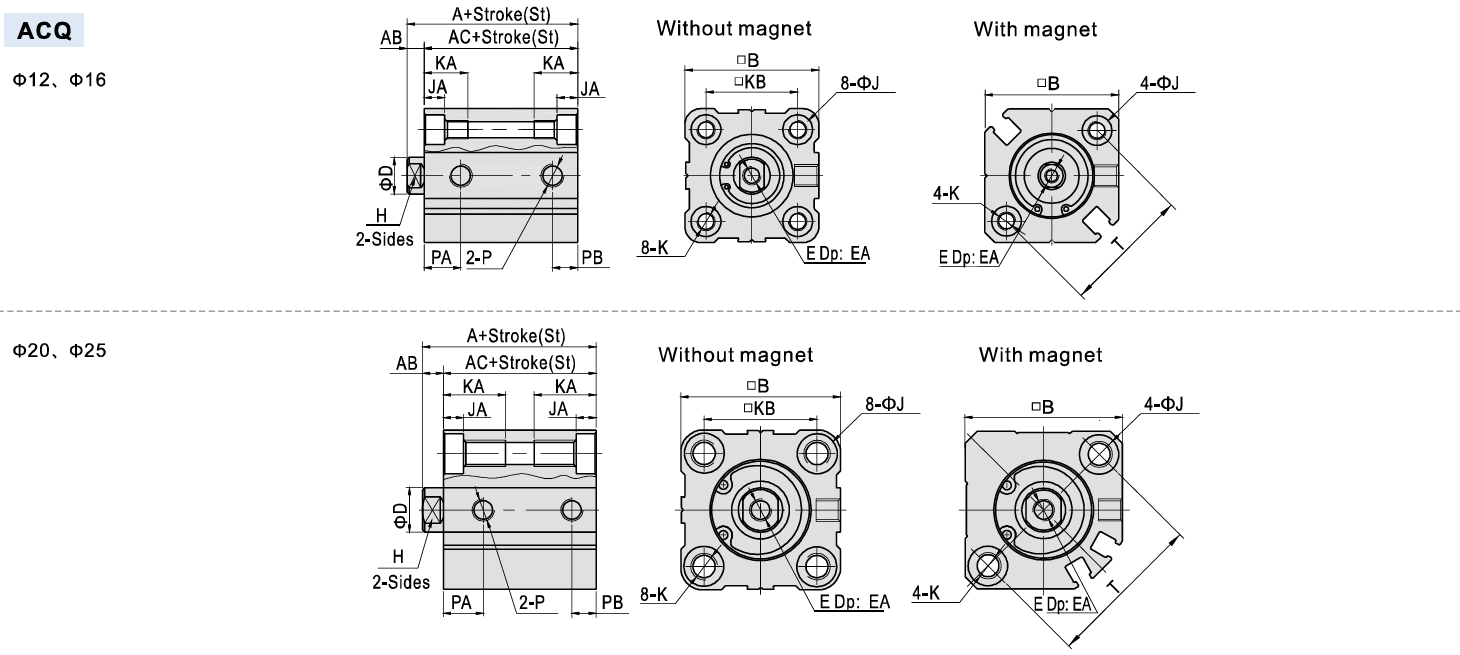

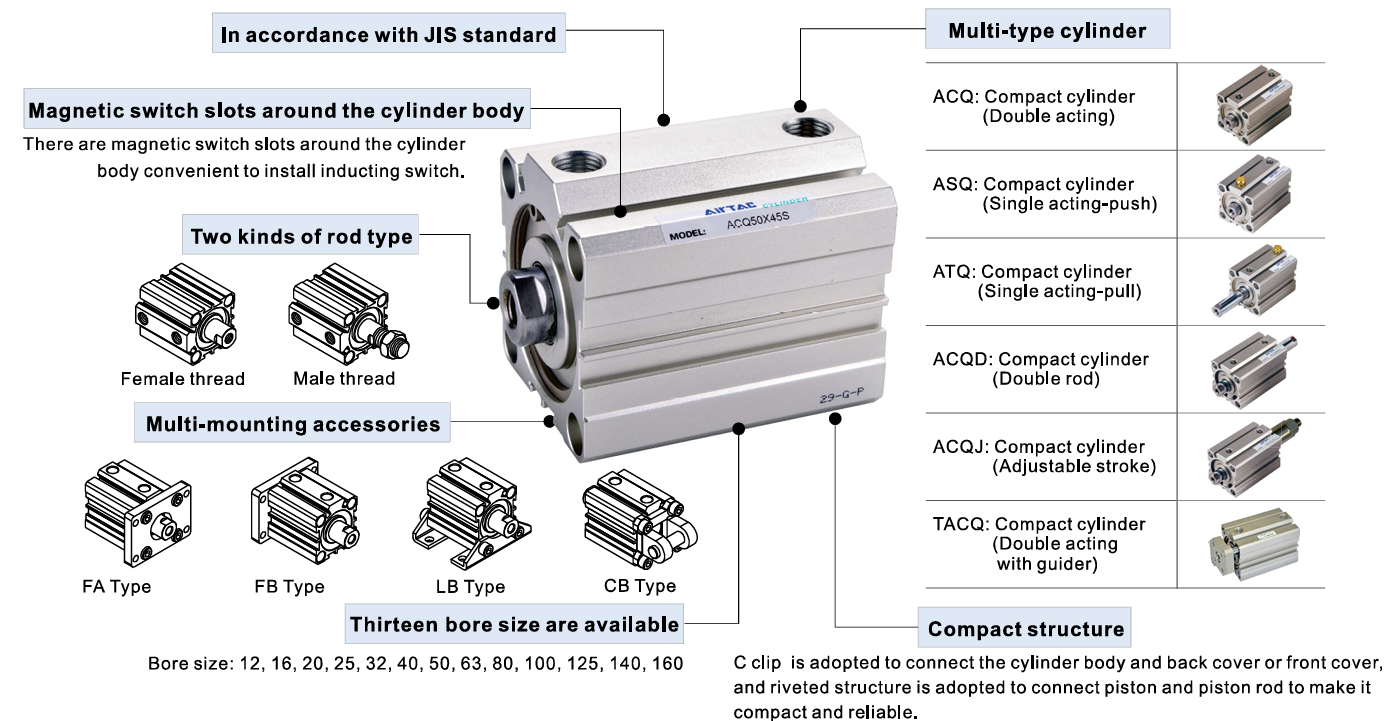

👉 If you need a compact pneumatic solution, the AirTAC ACQ compact cylinder series is definitely worth considering.
