AirTAC Solenoid Valve Accessories – Quick Connects, Silencers, and Sub-Bases

AirTAC solenoid valves are widely used in industrial pneumatic systems to control airflow, operate cylinders, and automate processes. To optimize performance and ensure reliable operation, using genuine AirTAC accessories is essential. Accessories such as quick connects, silencers, and valve sub-bases enhance system efficiency, reduce noise and vibration, and simplify maintenance. This article provides a detailed overview of the main AirTAC accessories, guidance on selection and application, and tips for visualizing them using catalog images.

Why AirTAC Valve Accessories Are Important

Accessories play a critical role in pneumatic systems:

1. Ensure secure connections between valves and the system
2. Reduce vibration and noise via silencers
3. Save installation space with sub-base and manifold configurations
4. Simplify maintenance when multiple valves are used in clusters

Main Types of AirTAC Accessories

1. Quick Connects

1. Function: Provide fast and secure connection of valves to pneumatic tubing.
2. Benefits: Easy assembly and disassembly, prevents air leaks, suitable for tight spaces.
3. Specifications: Compatible with valve port sizes 1/8”, 1/4”, 3/8”, 1/2”.

2. Silencers (Mufflers)

1. Function: Reduce noise when air is exhausted from valves or pilots.
2. Application: Installed on exhaust ports of 5/2, 5/3, or 3/2 valves.
3. Tip: Choose silencers that match the exhaust port diameter to maintain airflow efficiency.

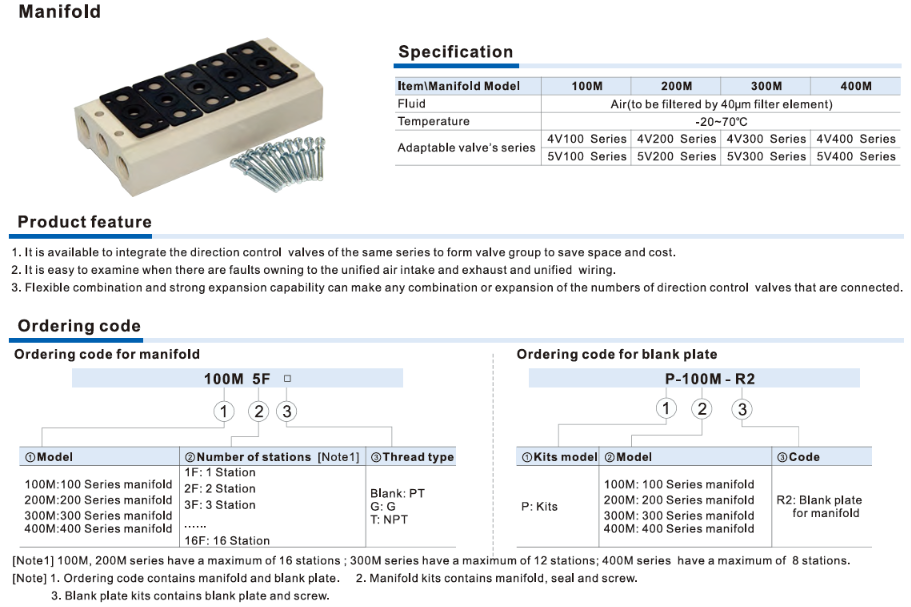

3. Valve Sub-Bases / Manifold Bases

1. Function: Mount multiple valves together to form a compact manifold.
2. Benefits: Saves space, simplifies piping, reduces vibration, and enhances system reliability.
3. Compatibility: Works with 3V Series, 4V Series, and 4V200/300 Series valves.

Benefits of Using Genuine AirTAC Accessories

1. Reliable connections reduce air leakage.
2. Noise and vibration reduction ensures smoother system operation.
3. Space optimization with manifold-ready sub-bases.
4. Extended valve life due to stable operation and reduced mechanical stress.
5. Lower maintenance costs by using compatible, certified accessories.

Tips for Selecting AirTAC Accessories

1. Quick Connects: Match the port size (M5, 1/8”, 1/4”, 3/8”, 1/2”) to the valve.
2. Silencers: Select the correct size for the exhaust port to ensure airflow efficiency.
3. Sub-Base / Manifold: Use standard AirTAC manifolds for multi-valve configurations.
4. Material: Ensure compatibility with system pressure; options include aluminum or PU/PE plastics.
5. Valve Model Reference: Keep a record of the installed valve models (4V100, 4V200, 4V300, 3V100, 3V200, 3V300) to select compatible accessories.

Quick Checklist for Accessories

1. Verify port size for quick connects.
2. Choose silencers that match the exhaust port.
3. Mount valves on standard sub-base or manifold.
4. Use catalog images or real-life photos to identify accessory positions.
5. Record the valve model for maintenance and ordering.
