Onpin OP-5S5115C Air Shut-Off Screwdriver - Torque Regulator, 1500rpm, 0.9-1.6Nm Torque, 3.5mm Capacity
The Onpin OP-5S5115C Air Shut-Off Screwdriver is a high-precision industrial fastening tool designed to release or fasten screws up to 3.5 mm in capacity, particularly for assembly in the toy, electric, carpentry, and plastic industries. Operating at a rated air pressure of 90 psi (6.2 bar), it delivers a free speed of 1500 rpm and a torque range of 0.9 ~ 1.6 Nm. It features an integrated torque regulator and an automatic clutch mechanism that protects workpieces from damage upon reaching the fixed torque. Equipped with a hook for spring balancers, single-handed forward/reverse control with a self-locking button, and a net weight of 0.98 kg, it enhances worker efficiency and safety.
- OP-5S5115C
- OP-5S5115C Air Shut-Off Screw Driver
- OP-5S1515C
- OP-5S Series
- OP-5S5115 Series
- Onpin OP-5S5115C air screwdriver
- torque control pneumatic shut off screwdriver
- precision air screwdriver 0.9-1.6Nm
- industrial automatic clutch air screwdriver
- torque regulator pneumatic screwdriver
Design file download links:
PDF fileDescription

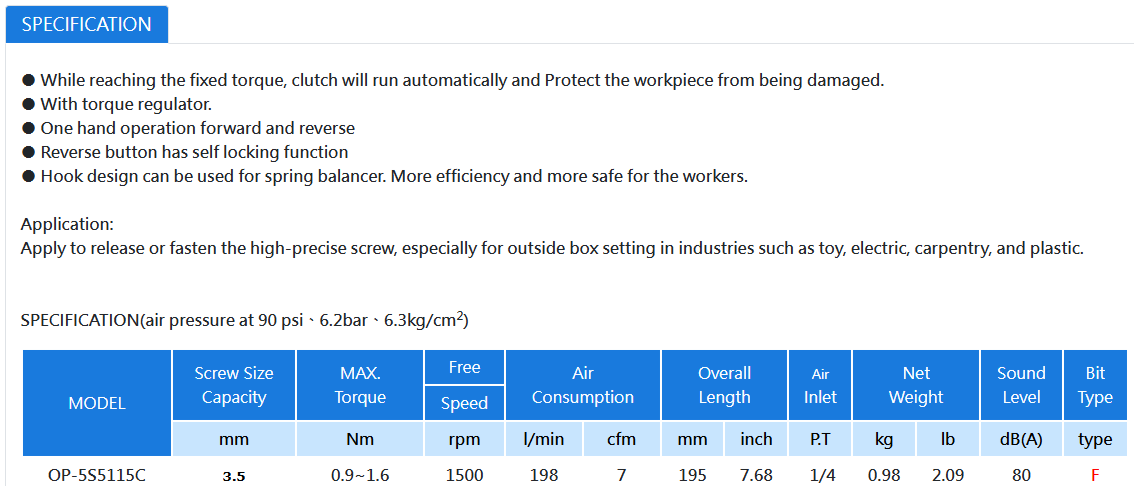

Specification OP-5S5115C
The Onpin OP-5S5115C Air Screwdriver (Air Shut-Off Screw Driver / Torque Control Screw Driver) is a high-precision industrial pneumatic fastening tool operating at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air power into rotational output, delivering a free speed of 1500 rpm and a MAX torque range of 0.9 ~ 1.6 Nm for precise screw assembly operations.
Key Features of Onpin OP-5S5115C
- Automatic Shut-Off Clutch: While reaching the fixed torque, the clutch runs automatically to protect the workpiece from being damaged.
- Torque Regulator: Features an integrated torque regulator for consistent and precise torque control.
- Single-Handed Forward/Reverse Control: Designed for one-hand operation with a self-locking reverse button (reverse button has self locking function).
- Ergonomic Hook Design: Allows the tool to be suspended with a spring balancer, improving worker safety and operational efficiency.
- Compact & Efficient Performance: Provides a lightweight design at 0.98 kg (2.09 lb) with low air consumption of 198 l/min (7 cfm) and low sound level of 80 dB(A).
Technical Specifications of Onpin OP-5S5115C
- Model: OP-5S5115C
- Screw Size Capacity: 3.5 mm
- MAX. Torque: 0.9 ~ 1.6 Nm
- Free Speed: 1500 rpm
- Air Consumption: 198 l/min (7 cfm)
- Overall Length: 195 mm (7.68 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 0.98 kg (2.09 lb)
- Sound Level: 80 dB(A)
- Bit Type: Type F
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-5S5115C
- High-Precision Screw Fastening: Ideal for releasing or fastening high-precise screws up to 3.5 mm capacity.
- Toy Industry: Suitable for delicate casing assembly and small component fastening.
- Electrical Industry: Applied in outside box settings and electrical enclosure installations to prevent workpiece damage.
- Carpentry and Plastic Industries: Efficient for high-volume production lines requiring reliable torque accuracy and user comfort.
