/ Onpin OP-5S5115B Air Shut-Off Screwdriver - Trigger Start, 1.2-2.4Nm Torque, ±3% Accuracy, 4mm Capacity
Onpin OP-5S5115B Air Shut-Off Screwdriver - Trigger Start, 1.2-2.4Nm Torque, ±3% Accuracy, 4mm Capacity
The Onpin OP-5S5115B Air Shut-Off Screwdriver is a high-precision pneumatic fastening tool designed to release or fasten heavy-precise screws up to 4 mm in capacity. Operating at a rated air pressure of 90 psi (6.2 bar), it delivers a free speed of 1500 rpm and a MAX torque range of 1.2 ~ 2.4 Nm. Equipped with a trigger-start mechanism, torque adjustment by nut turning, and an auto shut-off feature with ±3% accuracy, all components stop automatically upon reaching target torque. Featuring a net weight of 0.98 kg, overall length of 195 mm, air consumption of 198 l/min (7 cfm), and single-handed forward/reverse control, this tool is ideal for assembly lines in the computer, instrument, and electrical sectors.
- OP-5S5115B
- OP-5S5115B Air Shut-Off Screw Driver
- OP-5S Series
- OP-5S5115 Series
- Onpin OP-5S5115B air screwdriver
- trigger start pneumatic shut off screwdriver
- precision air torque screwdriver 1.2-2.4Nm
- industrial air assembly screwdriver
- low air consumption pneumatic screwdriver
Design file download links:
PDF fileDescription
Specification OP-5S5115B
The Onpin OP-5S5115B Air Screwdriver (Air Shut-Off Screw Driver / Torque Control Screw Driver) is a high-precision industrial pneumatic fastening tool operating at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air power into rotational speed, providing a free speed of 1500 rpm and a torque range of 1.2 ~ 2.4 Nm, featuring a trigger-start mechanism with an automatic shut-off system boasting ±3% accuracy.
Key Features of Onpin OP-5S5115B
- High Torque Accuracy (±3%): Guarantees precise and repeatable torque output across assembly operations.
- Trigger-Start Device with Auto Shut-Off: Automatically stops all internal components upon reaching the target torque to safeguard workpieces.
- Convenient Torque Adjustment: Easily adjust the required torque setting by turning the adjustment nut.
- One-Hand Forward/Reverse Operation: Equipped with a self-locking reverse button (reverse button has self locking function) for seamless single-handed operation.
- Lightweight & Energy-Saving Design: Features low air consumption of 198 l/min (7 cfm), a net weight of 0.98 kg (2.09 lb), and an operating sound level of 80 dB(A).

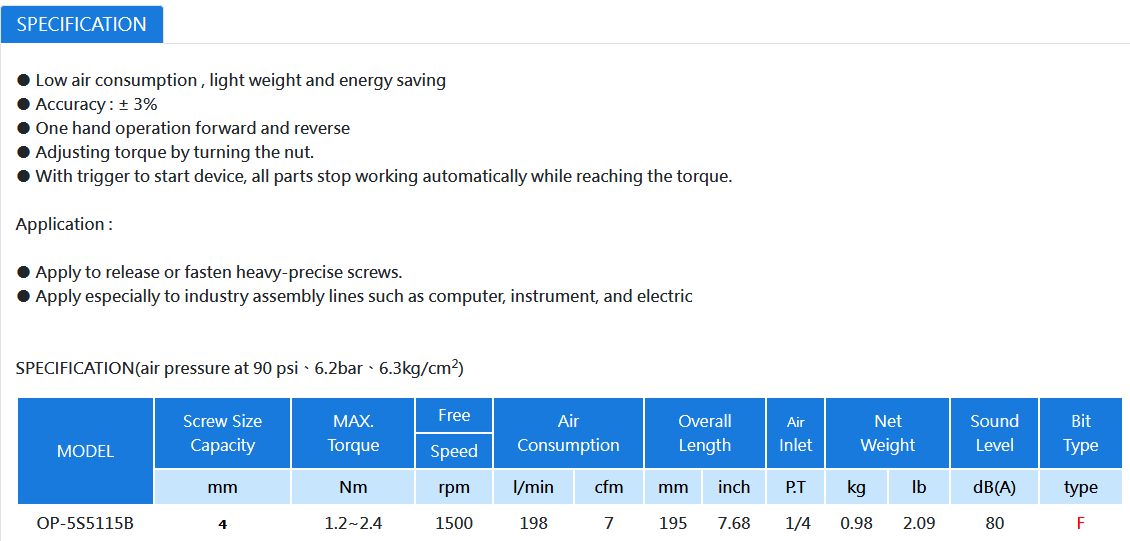

Technical Specifications of Onpin OP-5S5115B
- Model: OP-5S5115B
- Screw Size Capacity: 4 mm
- MAX. Torque: 1.2 ~ 2.4 Nm
- Free Speed: 1500 rpm
- Air Consumption: 198 l/min (7 cfm)
- Overall Length: 195 mm (7.68 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 0.98 kg (2.09 lb)
- Sound Level: 80 dB(A)
- Bit Type: Type F
- Accuracy: ±3%
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-5S5115B
- Precision Fastening: Specially designed to release or fasten heavy-precise screws up to 4 mm.
- Computer Assembly Lines: Perfectly suited for hardware assembly demanding exact torque within 1.2 ~ 2.4 Nm.
- Instrument Assembly Lines: Protects sensitive measuring devices with tight ±3% torque control.
- Electrical Industry Lines: Maximizes assembly line efficiency and quality consistency via auto shut-off capability.
