/ Onpin OP-5S5103 Air Shut-Off Screwdriver - Torque Regulator, 390rpm Speed, 4.5-10Nm Torque, 5-6mm Capacity
Onpin OP-5S5103 Air Shut-Off Screwdriver - Torque Regulator, 390rpm Speed, 4.5-10Nm Torque, 5-6mm Capacity
The Onpin OP-5S5103 Air Shut-Off Screwdriver is a high-precision industrial fastening tool designed to release or fasten screws up to 5 ~ 6 mm in capacity, particularly for assembly lines in the toy, electric, carpentry, and plastic industries. Operating at a rated air pressure of 90 psi (6.2 bar), it delivers a free speed of 390 rpm and a MAX torque range of 4.5 ~ 10 Nm. It features an integrated torque regulator and an automatic clutch mechanism that protects workpieces from damage upon reaching the target torque. Equipped with a hook design for spring balancers, single-handed forward/reverse control with a self-locking button, and a net weight of 1.15 kg, it maximizes worker efficiency and safety.
- OP-5S5103
- OP-5S5103 Air Shut-Off Screw Driver
- 555103
- OP-5S Series
- OP-5S5103 Series
- Onpin OP-5S5103 air screwdriver
- torque control pneumatic shut off screwdriver
- precision air screwdriver 4.5-10Nm
- industrial automatic clutch air screwdriver
- torque regulator pneumatic screwdriver
Design file download links:
PDF fileDescription
Specification OP-5S5103
The Onpin OP-5S5103 Air Screwdriver (Air Shut-Off Screw Driver / Torque Control Screw Driver) is a high-precision industrial pneumatic fastening tool operating at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air power into rotational output, delivering a free speed of 390 rpm and a MAX torque range of 4.5 ~ 10 Nm for screw assembly operations capacity 5 ~ 6 mm.
Key Features of Onpin OP-5S5103
- Automatic Shut-Off Clutch: While reaching the fixed torque, the clutch runs automatically to protect the workpiece from being damaged.
- Torque Regulator: Features an integrated torque regulator for consistent and precise torque control.
- Single-Handed Forward/Reverse Control: Designed for one-hand operation with a self-locking reverse button (reverse button has self locking function).
- Ergonomic Hook Design: Allows the tool to be suspended with a spring balancer, improving worker safety and operational efficiency.
- Compact & Efficient Performance: Provides a lightweight design at 1.15 kg (2.53 lb) with air consumption of 198 l/min (7 cfm) and low sound level of 80 dB(A).

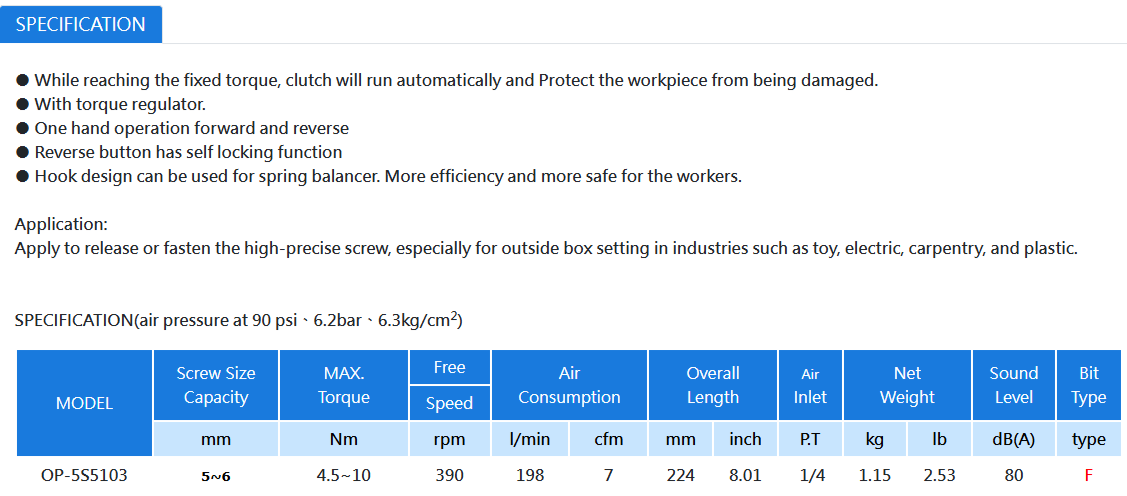

Technical Specifications of Onpin OP-5S5103
- Model: OP-5S5103 (Schematic diagram code: 555103)
- Screw Size Capacity: 5 ~ 6 mm
- MAX. Torque: 4.5 ~ 10 Nm
- Free Speed: 390 rpm
- Air Consumption: 198 l/min (7 cfm)
- Overall Length: 224 mm (8.01 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.15 kg (2.53 lb)
- Sound Level: 80 dB(A)
- Bit Type: Type F
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-5S5103
- High-Precision Screw Fastening: Ideal for releasing or fastening high-precise screws with 5 ~ 6 mm capacity.
- Toy Industry: Suitable for delicate casing assembly and component fastening.
- Electrical Industry: Applied in outside box settings and electrical enclosure installations to prevent workpiece damage.
- Carpentry and Plastic Industries: Efficient for high-volume production lines requiring reliable torque accuracy and user comfort.
