Onpin OP-3G8406 Air Screwdriver EN ISO 11148-6 - Direct Drive, 5mm, 600RPM, 22.5Nm
The Onpin OP-3G8406 Air Screwdriver is a direct driver pneumatic fastening tool certified to EN ISO 11148-6:2012, specifically engineered for 5mm self-tapping wood screws. Operating at 90 psi (6.2 bar) working pressure, it delivers a free speed of 600 rpm and a stall torque of 22.5 Nm (16.6 Ft-lb) with an air consumption rate of 283 l/min. Featuring a lightweight 1.04 kg composite body that eliminates cold feeling, it incorporates a handle exhaust system to reduce operational noise to 88 dB(A) and a non-section switch lever for precise speed control.
- OP-3G8406
- 3G8406
- OP-3G
- OP-3G Series
- onpin op-3g8406 air screwdriver
- direct driver pneumatic screwdriver
- 600rpm air screwdriver
- 5mm wood screw air driver
- hong bing pneumatic tools
Design file download links:
Other fileDescription

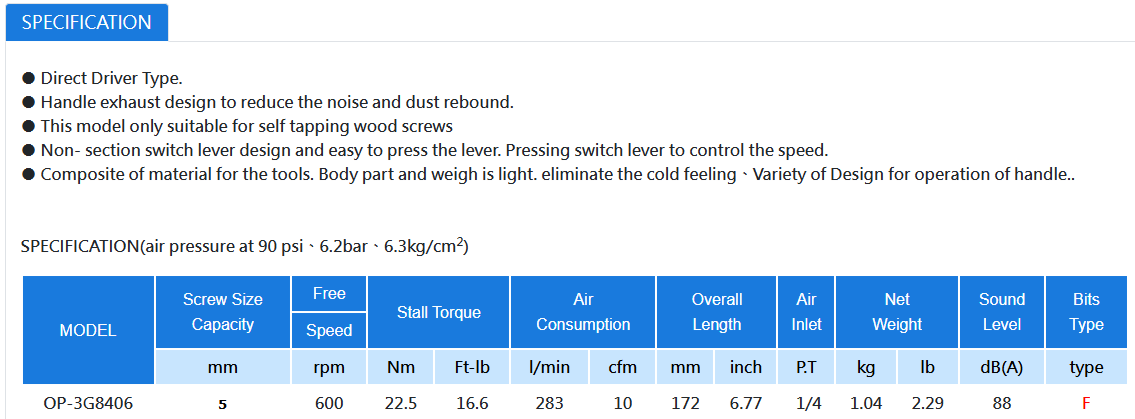

Specification OP-3G8406
The Onpin OP-3G8406 Air Screwdriver is a direct driver type pneumatic fastening tool that operates via a 1/4 P.T air inlet at a rated pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Manufactured by Hong Bing Pneumatic Industry Co., Ltd., it converts compressed air energy into a free speed of 600 rpm and a stall torque of 22.5 Nm (16.6 Ft-lb), specifically engineered for driving 5 mm self-tapping wood screws.
Key Features of Onpin OP-3G8406
- Direct Driver Type: Delivers continuous rotational force tailored specifically for self-tapping wood screws.
- Non-Section Switch Lever Design: Features an easy-to-press lever that allows operators to seamlessly control rotational speed by adjusting lever pressure.
- Lightweight Composite Body: Built with a composite material body weighing only 1.04 kg (2.29 lb), which eliminates the cold sensation during prolonged operation and offers various handle designs.
- Handle Exhaust System: Directs exhaust air through the handle to effectively lower noise levels to 88 dB(A) and prevent dust rebound onto the operator.
- European Standard Compliance: Holds an EC Declaration of Conformity under Machinery Directive 2006/42/EC and conforms to EN ISO 11148-6:2012.
Technical Specifications of Onpin OP-3G8406
- Model: OP-3G8406 (Schematic code: 3G8406)
- Screw Size Capacity: 5 mm
- Free Speed: 600 rpm
- Stall Torque: 22.5 Nm (16.6 Ft-lb)
- Air Consumption: 283 l/min (10 cfm)
- Overall Length: 172 mm (6.77 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.04 kg (2.29 lb)
- Sound Level: 88 dB(A)
- Bits Type: Type F
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-3G8406
- Woodworking & Furniture Manufacturing: Specifically applied in driving 5 mm self-tapping wood screws in cabinetry and timber processing.
- Assembly Workstations: Ideal for high-efficiency assembly lines requiring lightweight tools (1.04 kg) with low operational noise (88 dB(A)).
- General Industrial Manufacturing: Suitable for industrial operations demanding a high stall torque of 22.5 Nm and precise lever speed control.
