Onpin OP-3G8410 Air Screwdriver - Capacity 5mm, 1000 RPM, 14.9 Nm
The Onpin OP-3G8410 Air Screwdriver features a direct driver type system designed specifically for self-tapping wood screws up to 5mm. Constructed with a lightweight composite body (1.04 kg) that eliminates the cold feeling, it incorporates a handle exhaust design to reduce noise (88 dB(A)) and dust rebound. Operating at an air pressure of 90 psi (6.2 bar), it delivers a free speed of 1000 rpm, a stall torque of 14.9 Nm, and an air consumption rate of 283 l/min. The non-section switch lever design enables smooth and easy speed control during operation.
- OP-3G8410
- 3G8410
- OP-3G
- OP-3G Series
- onpin op-3g8410 air screwdriver
- direct driver pneumatic screwdriver
- 1000rpm air screwdriver
- 5mm wood screw air driver
- hong bing pneumatic tools
Design file download links:
PDF fileDescription
Specification OP-3G8410
The Onpin OP-3G8410 Air Screwdriver is a direct driver type pneumatic fastening tool that operates via a 1/4 P.T air inlet at a rated pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air energy into a free speed of 1000 rpm and a stall torque of 14.9 Nm (10.9 Ft-lb), specifically engineered for driven 5 mm self-tapping wood screws.
Key Features of Onpin OP-3G8410
- Direct Driver Type: Delivers continuous rotational force tailored specifically for self-tapping wood screws.
- Non-Section Switch Lever Design: Features an easy-to-press lever that allows operators to seamlessly control rotational speed by adjusting lever pressure.
- Lightweight Composite Body: Built with a composite material body weighing only 1.04 kg (2.29 lb), which eliminates the cold sensation during prolonged operation and offers various handle designs.
- Handle Exhaust System: Directs exhaust air through the handle to effectively lower noise levels to 88 dB(A) and prevent dust rebound onto the operator.
- European Standard Compliance: Holds an EC Declaration of Conformity under Machinery Directive 2006/42/EC and conforms to EN ISO 11148-6:2012.

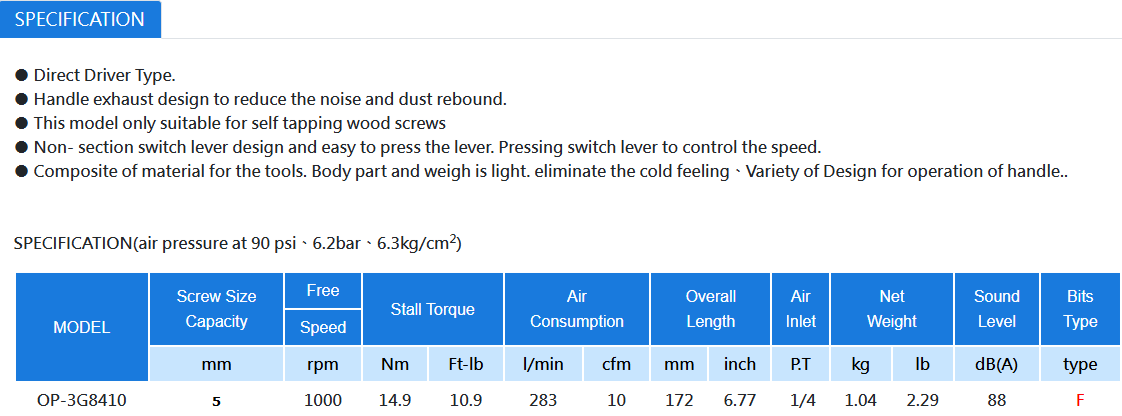

Technical Specifications of Onpin OP-3G8410
- Model: OP-3G8410 (Schematic code: 3G8410)
- Screw Size Capacity: 5 mm
- Free Speed: 1000 rpm
- Stall Torque: 14.9 Nm (10.9 Ft-lb)
- Air Consumption: 283 l/min (10 cfm)
- Overall Length: 172 mm (6.77 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.04 kg (2.29 lb)
- Sound Level: 88 dB(A)
- Bits Type: Type F
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-3G8410
- Woodworking & Furniture Manufacturing: Specifically applied in driving 5 mm self-tapping wood screws in cabinetry and timber processing.
- Assembly Workstations: Ideal for high-efficiency assembly lines requiring lightweight tools (1.04 kg) with low operational noise (88 dB(A)).
- General Industrial Manufacturing: Suitable for industrial operations demanding a high stall torque of 14.9 Nm and precise lever speed control.
